High Brightness 7-Inch TFT-LCD Display Module 800x480 1000nits Vibration Resistant for Automotive Applications
Price:
$80/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
IVO
Product Description
Products Description
Panel Model | M070AWPA R1 | Panel Brand | IVO |
Size (inch ) | 7 inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×480, WVGA 133PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 165.82 × 104.95 × 9.65 (H×V×D) | Display Mode | IPS, Normally Black, Transmissive |
LCD Active area(mm) | 152.4(W)×91.44(H) mm | Response Time | 20 (Typ.)(Tr+Td) ms |
Display Colors | 16.7M 72% NTSC | Light Source | 6S3P WLED , 30K hours , No Driver |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 1000 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) | Used for | Industrial, Handheld Device |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -40~ 90 °C |
Operating Temp.: -30 ~ 85 °C | |||
Vibration Level | 2.9G (28.4 m/s²) | ||
LCM Interface Type | LVDS (1 ch, 8-bit) , 40 pins FPC | FPC connector | Pitch 0.5mm |

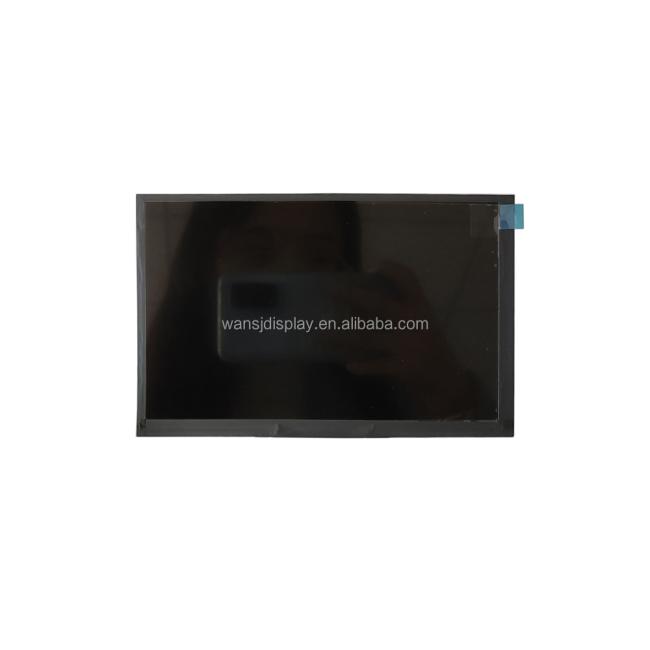

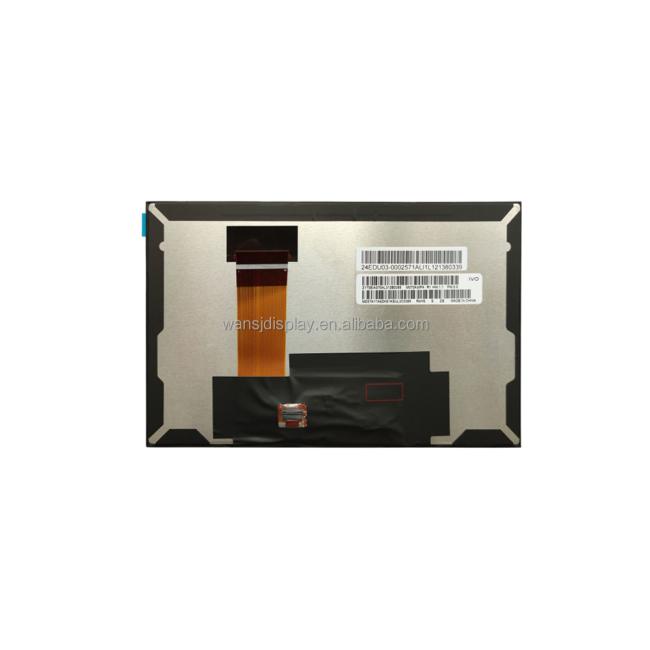

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
