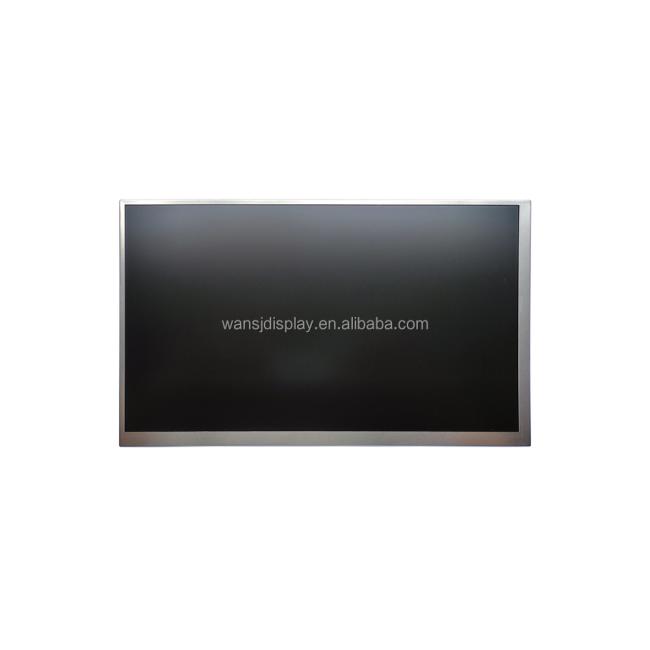

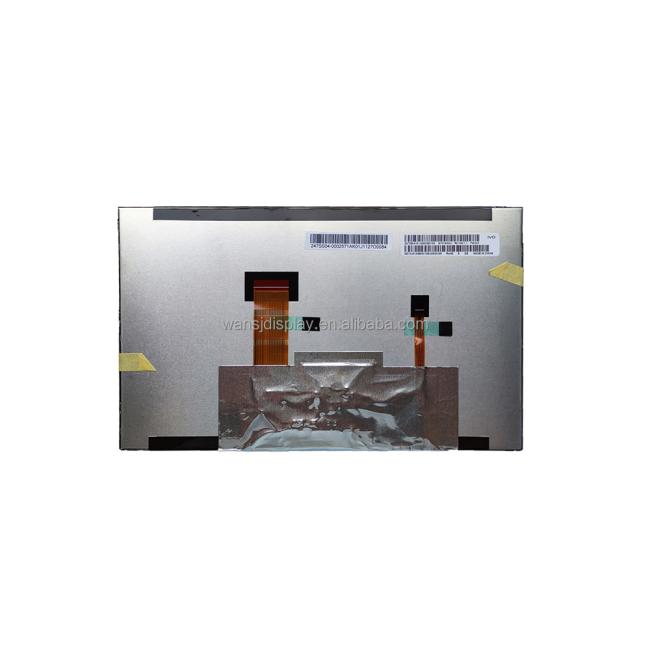

IVO M101AWAJ R0 10.1-Inch WXGA 1280x720 High Brightness 950nits IPS Automotive LVDS Vibration Resistance TFT-LCD Display Module
Price:
$118/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
IVO
Product Description
Products Description
Panel Model | M101AWAJ R0 | Panel Brand | IVO |
Size (inch ) | 10.1 inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×720, WXGA 145PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 236.08 × 140.25 × 9.5 (H×V×D) | Display Mode | IPS, Normally Black, Transmissive |
LCD Active area(mm) | 223.68(W)×125.82(H) mm | Response Time | 25 (Typ.)(Tr+Td) ms |
Display Colors | 16.7M 75% NTSC | Light Source | 8S4P WLED , 30K hours , No Driver |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 950 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) | Used for | Industrial, Automotive |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -40~ 95 °C |
Operating Temp.: -30 ~ 85 °C | |||
Vibration Level | 3.0G (29.4 m/s²) | ||
LCM Interface Type | LVDS (1 ch, 8-bit) , 40 pins FPC | FPC connector | Pitch 0.5mm |
