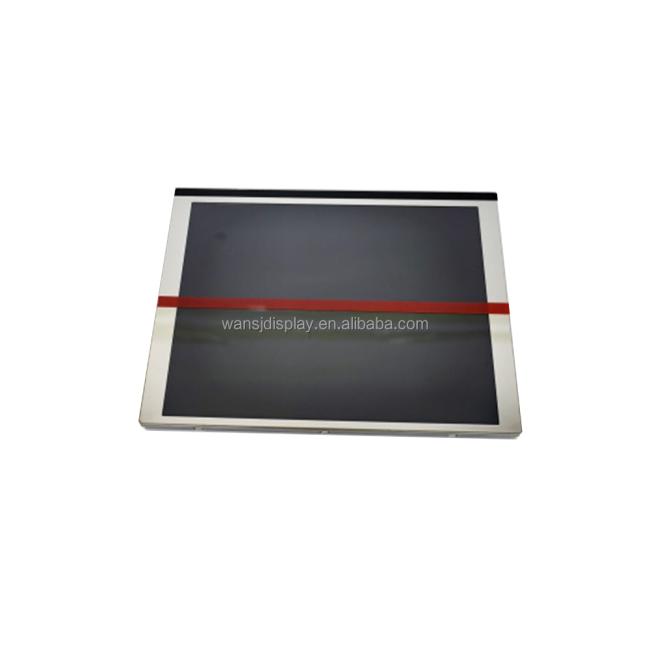

5" 640x480 VGA TFT-LCD Wide Temperature 5G Vibration Industrial Rugged Industry High Brightness Display Module TX13D04VM2CAA
Price:
$100/pieces 24-99 pieces
MOQ:
24 pieces
Delivery Time:
Negotiable
Brand:
KOE/Hitachi
Product Description
Products Description
Panel Model | TX13D04VM2CAA | Panel Brand | Hitachi |
Size (inch ) | 5inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 640(RGB)×480, VGA 159PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 119.4(W)×89.1(H) ×9.8(D) mm | Display Mode | TN, Normally White, Transmissive |
LCD Active area(mm) | 101.76(W)×76.32(H) mm | Response Time | 45 (Max.)(Tr+Td) |
Display Colors | 262K 54% NTSC | Light Source | WLED , 70K hours , With LED Driver |
Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Touch Screen | Without |
Brightness | 600 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 500:1 (Typ.) (TM) | Used for | Industrial, Rugged Industry |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -40 ~ 90 °C |
Operating Temp.: -30 ~ 80°C | |||
Vibration Level: | 5.0G (49.0 m/s²) | ||
LCM Interface Type | CMOS (1 ch, 6-bit) , 40 pins Connector | FPC connector | JAE, FA5S040HP1, Pitch 0.5mm |
