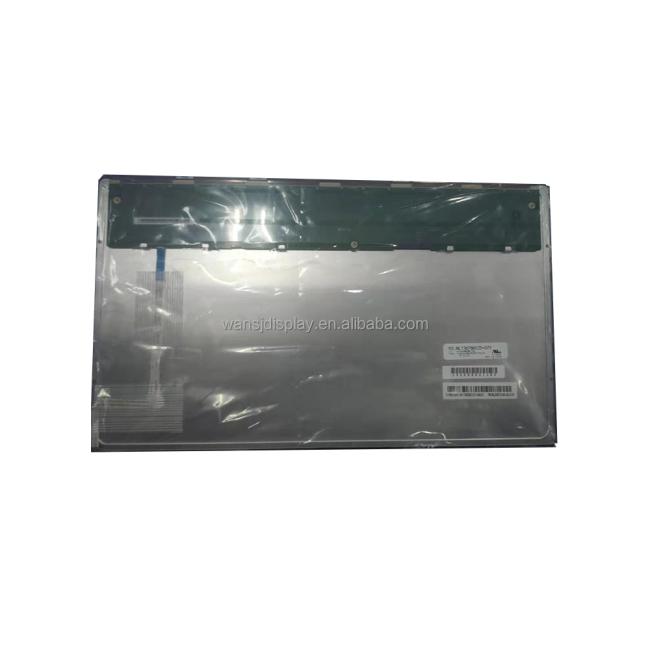

NLT NL13676BC25-07F 15.6" 1366x768 WXGA TFT-LCD LVDS Interface Industrial Outdoor Display Module with 1250cd/m2 Luminance
Price:
$250/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
NLT
Product Description
Products Description
Brand | NLT | Model P/N | NL13676BC25-07F |
Diagona Size | 15.6 inch | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1366(RGB)×768, WXGA 100PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 344.232(W)×193.536(H) mm | Application | Industrial, Outdoor High Brightness |
Outline Dim. | 363.8(W)×215.9(H)×13.15(D) mm | Treatment | Antiglare, Hard coating (3H) |
Luminance | 1250 cd/mz (Typ.) | Contrast Ratio | 900:1 (Typ.) (TM) |
Wiew Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
Support Color | 262K/16.7M 60% NTSC | Light Source | WLED [6 strings] , 7K hours , W/O Driver |
Power | 3.3V (Typ.) | Touch Panel | Without |
Frame Rate | 60Hz | Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
Interface Type | LVDS (1 ch, 6/8-bit) 20 pins Connector | Interface Detail | P-two, 185083-20121, Pitch 1.25mm |
Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
