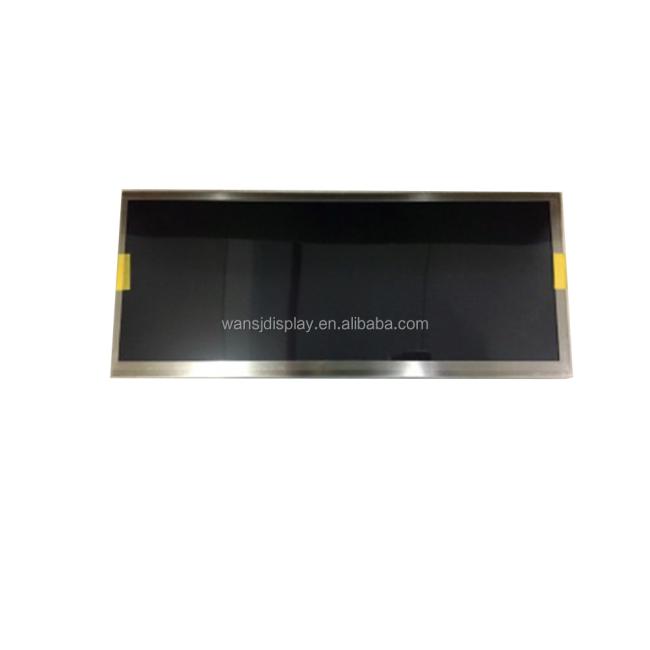

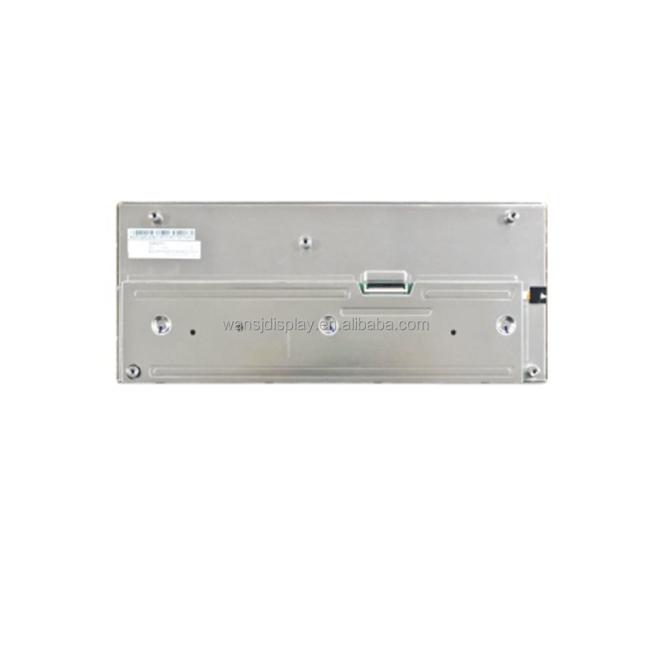

12.3 inch High Brightness TFT-LCD Stretched Bar Display Screen for Wide Temperature Environments and 1920x720 Resolution
Price:
$120/pieces 1-79 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Hannstar
Product Description
Products Description
Panel Model | HSD123KPW1-A30 | Panel Brand | Hannstar |
Size (inch ) | 12.3 Inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×720 167PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 308.1(W)×130(H) ×15.6(D) mm | Display Mode | IPS Pro, Normally Black, Transmissive |
LCD Active area(mm) | 292.032(W)×109.512(H) mm | Response Time | 17/18 (Typ.)(Tr/Td) |
Display Colors | 16.7M 71% NTSC | Light Source | 11S4P WLED , 30K hours , Without Driver |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Touch | Without |
Brightness | 1000 cd/m² (Typ.) | Power Supply | 3.3V (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) | Used for | Rugged Industry, Outdoor High Brightness, Industrial |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -30 ~ 85 °C |
Operating Temp.: -30 ~ 85°C | |||
Vibration Level: 2.9G (28.4 m/s²) | |||
LCM Interface Type | LVDS (2 ch, 8-bit) , 50 pins Connector | FPC connector | Aorora, F31L-1A7H1-21050, Pitch 0.5mm |
Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
