3840x2160 Resolution Original Innolux M280DGJ-L30 28 inch LVDS TFT-LCD Desktop Monitor for HMI V-by-One 8 lane interface
Price:
$158/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Innolux
Product Description
Products Description
Panel Model | M280DGJ-L30 | Panel Brand | Innolux |
Size (inch ) | 28inch | Panel Type | a-Si TFT-LCD, LCM |
Resolution | 3840(RGB)×2160, UHD 157PPI | Pixel Format | RGB Vertical Stripe |
Module Outsize(mm) | 648.9(H)×369.3(V) ×20.85(D) mm | Display Mode | TN, Normally White, Transmissive |
LCD Active area(mm) | 620.928(W)×341.28(H) mm | Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
Display Colors | 1.07B 72% NTSC | Light Source | WLED [4 strings] , 30K hours , W/O Driver |
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Touch | Without |
Brightness | 450 cd/m² (Typ.) | Power Supply | 12.0V (Typ.) |
Contrast Ratio | 900 : 1 (Typ.) (TM) | Used for | Desktop Monitor |
Frame Ratio | 60Hz | Enviroment | Storage Temp.: -20 ~ 60 °C |
Operating Temp.: -0 ~ 50°C | |||
LCM Interface Type | V-by-One 8 lane , 51 pins Connector | FPC connector | FCN, WF23-402-5133, Pitch 0.5mm |

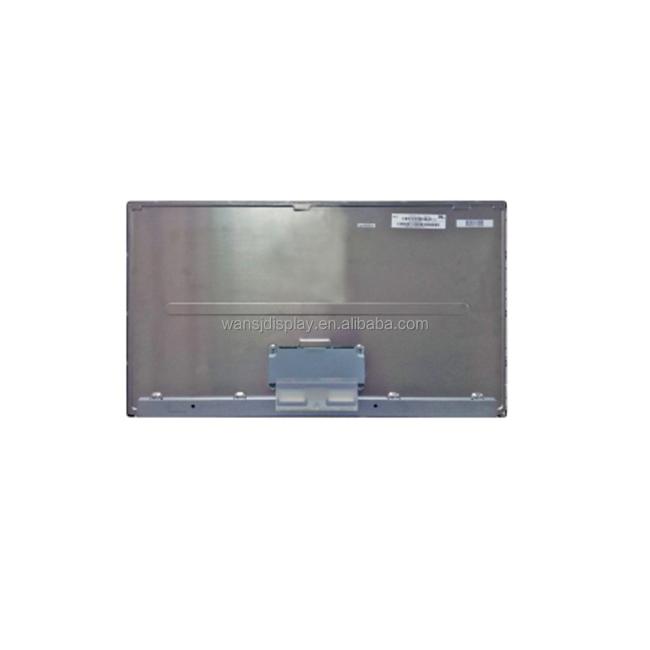

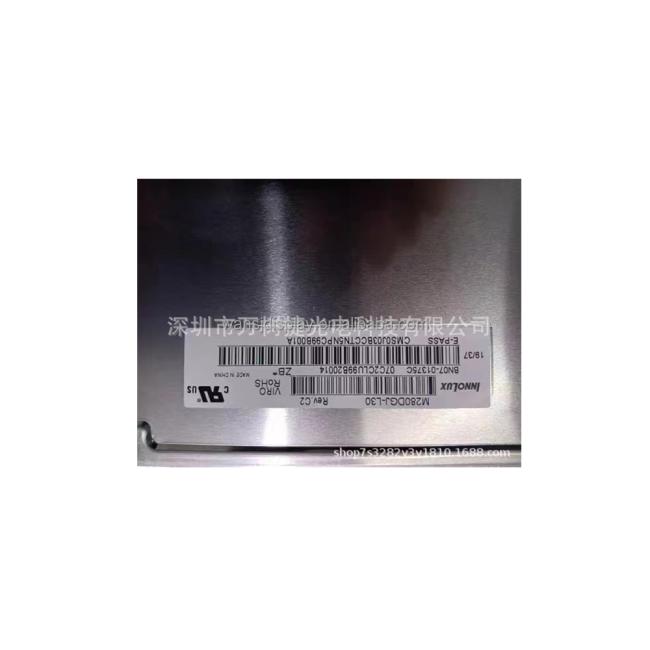

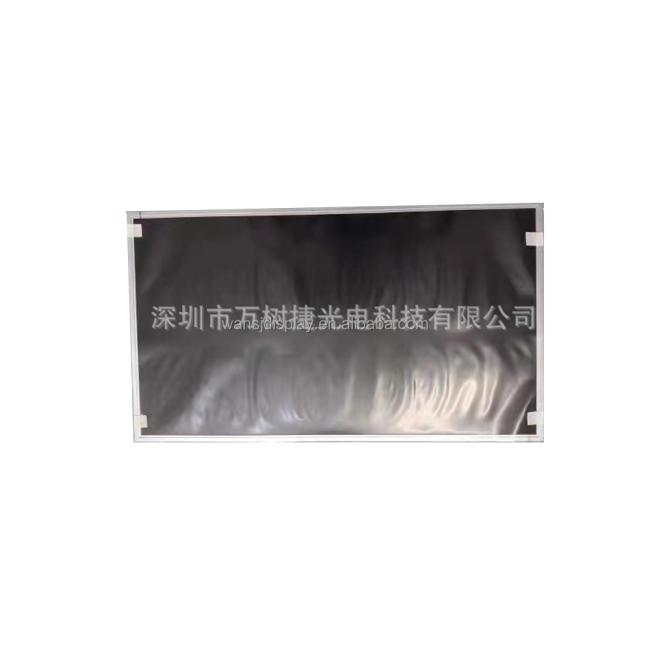

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
