BOE HR230WU1-400 23 inch 1920x1080 FHD sRGB LVDS interface ES 8.0 compliant TFT-LCD Desktop Monitor HMI LCM Display Module
Price:
$100/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BOE
Product Description
Products Description
Brand | BOE | Model P/N | HR230WU1-400 |
Diagona Size | 23inch | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1920(RGB)×1080, FHD 95PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 509.184(W)×286.416(H) mm | Bezel Opening | 513.0(W)×291.0(H) mm |
Outline Dim. | 533.2 × 312 × 11 (H×V×D) | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 250cd/mz (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 14 (Typ.)(G to G) ms |
Viewing Angle | 89/89/89/89 (Typ)(CR210) | Operating Mode | FFS, Normally Black, Transmissive |
Support Color | 16.7M 99% sRGB | Light Source | 4 strings WLED , 30K hours , No Driver |
Weight | 2.39Kgs (Typ.) | Touch Panel | Without |
Frame Rate | 60Hz | Environment | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector | InterfaceDetailed | UJU, IS100-L30R-C23, Pitch 1.0mm |

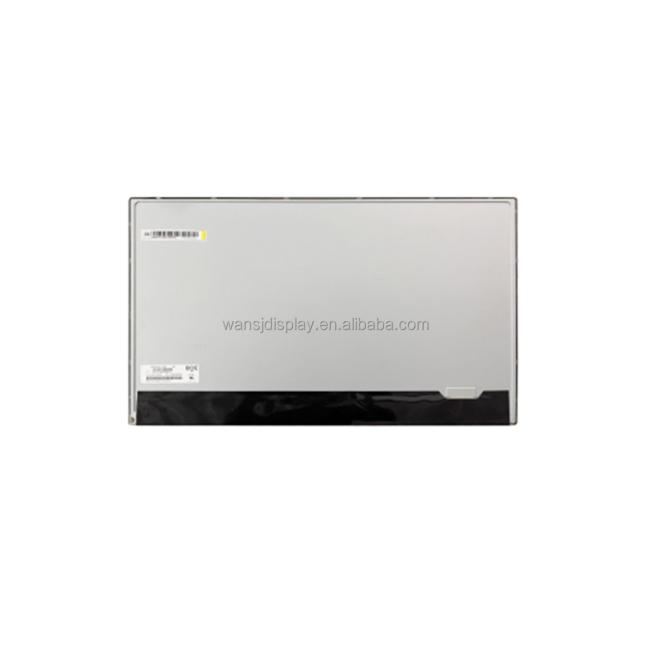

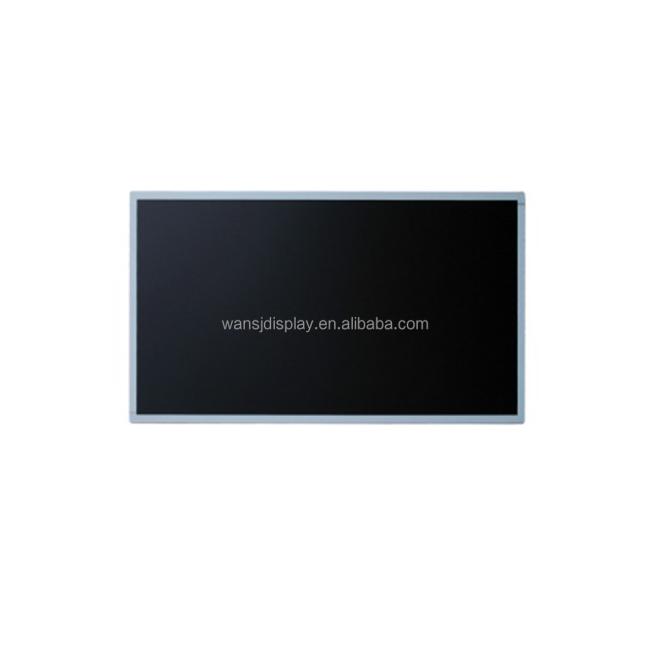

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
