Original AUO G121EAN01.2 12.1 Inch 1280x800 WXGA SRGB LVDS TFT-LCD High Brightness 1000nits Medical Healthcare Display Module
Price:
$208/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
AUO
Product Description
Products Description
Brand | AUO | Model P/N | G121EAN01.2 |
Diagona Size | 12.1inch | Panel Type | a-Si TFT-LCD,LCM |
Resolution | 1280(RGB)×800, WXGA 124PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 261.12(W)×163.2(H) mm | Bezel Opening | 264.22(W)×168.12(H) mm |
Outline Dim. | 278(H)×184(V) ×9.94(D) mm | Treatment | Antiglare, Hard coating (3H) |
Luminance | 1000cd/mz (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
View Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
Support Color | 262K/16.2M 99% sRGB | Light Source | WLED , 50K hours , With LED Driver |
Weight | 390g (Max.) | Touch Panel | Without |
Frame Rate | 60Hz | Environment | Storage Temp.: -30 ~ 85 °C Operating Temp.: 30~ 85 °C |
Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector | InterfaceDetailed | STARCONN, 093G30-B0001A-1, Pitch 1.0mm |

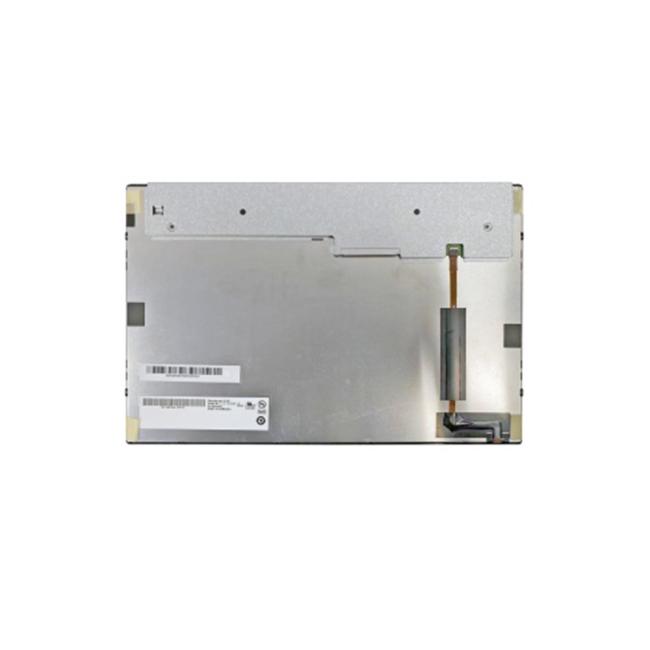

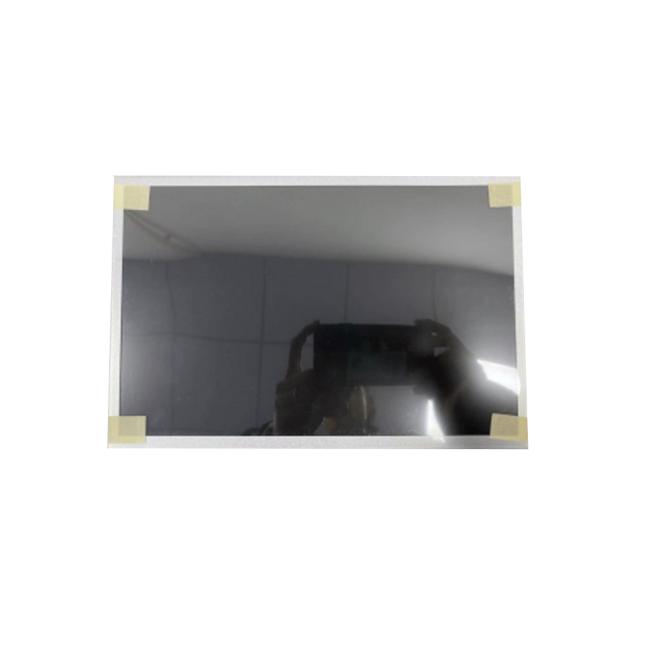

Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
