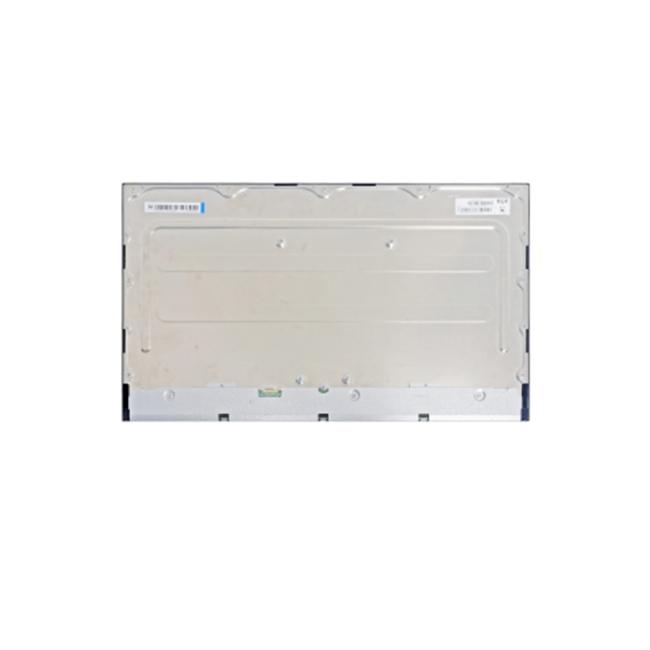

BOE MV270QUM-N50 27.0inch UHD IPS TFT-LCD Display Module 3840x2160 Resolution SRGB 95% DCI-P3 Desktop LCM with EDP Interface
Price:
$125/pieces 1-99 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
BOE
Product Description
Products Description
Brand | BOE | Model P/N | MV270QUM-N50 |
Diagonal size | 27.0" | Panel Type | a-Si TFT-LCD.LCM |
Resolution | 3840(RGB)×2160, UHD 163PPI | Pixel Format | RGB Vertical Stripe |
Active Area | 596.736(W)×335.664(H) mm | Bezel Opening | / |
Outline(mm | 609.4(H)×355.6(V) ×13.8(D) mm | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Work Mode | HADS, Normally Black, Transmissive |
Good View at | Symmetry | Response | 14 (Typ.)(G to G) |
Color Depth | 1.07B 95% DCI-P3 | Backlight | WLED [14S4P×2CN] , 30K hours , W/O Driver |
Mass | 2.45/2.60Kgs (Typ./Max.) | Touchscreen | Without |
Refresh Rate | 60Hz | Voltage Supply | 3.3V (Typ) |
Signal Type | eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector | Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: -0 ~ 50 °C |
Details Images
Company Profile
FAQ
Q1. What is your lead time? A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities. Q2. How does your factory do regarding quality control? A: Quality is priority. We always attach great importance to quality control from the very beginning to the end: 1) All raw material we used are non-toxic, environmental-friendly; 2) Skillful workers pay great attention to each details in handling the producing and packing processes; 3) We have a professional QA/QC team to ensure the quality. Q3. Do you accept OEM or ODM order? A: Yes, we accept both OEM and ODM for customers. Q4. What are your terms of delivery? A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you. Q5. What is the payment way? A: TT, Pay Later, West Union,Online Bank Payment. Should you have other questions, please let us know. We’ll add answers here for your further references. Thank you.
