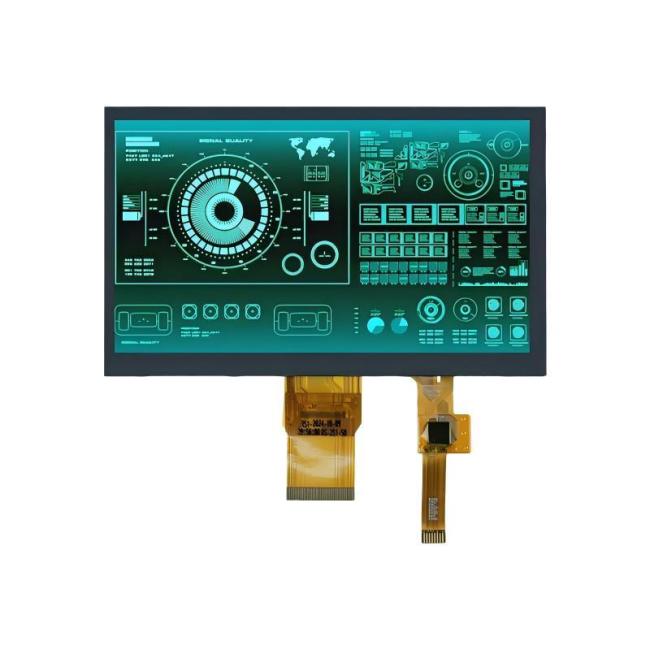

1. Product name: 7.0 inch IPS 1024x600 24 Bit RGB interface Industrial TFT LCD module with Capacitive Touch

2. Part No.: SJ070LQRHDFPA007

3. Size.: 7.0 inch

4. Compatible part No.: --

5. With touch panel or not: Yes

6. Touch type: Capacitive Touch

7. Display type: IPS

8. Display colors: 16.7M

9. Resolution (pixels): 1024x600

10. Pixel pitch: 0.0502(H)*0.1432(V)

11. Viewing direction: Free V.A

12. Driver IC: JD9165BA

13. Display mode: Transmissive / Normally black

14. Overall size: 164.36*99.46*5.78mm

15. Viewing area: --

16. Active area: 154.21*85.92mm

17. Luminance: 550cd/m²

18. Contrast: 800∶1

19. Interface type: 24 BIT RGB

20. Pin NO.: 50

21. Pin pitch: 0.5mm

22. Connecting type: plugging type

23. Input voltage: 3.3V

24. Backlight type and color: LED backlight / white

25. Backlight: 27 LEDs, 3 Series & 9 Parallel

V_F=9.0V, I_F=180mA

26. LED life time: 20000h

27. Operating temperature range: -10℃～+60℃

28. Storage temperature range: -20℃～+70℃

29. Compliant: RoHS

30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949

CTP Feature:

1. Principle: Projective

2. Transparency: ≥85%

3. Haze: ≤3%

4. Hardness: ≥6H

5. Touch point: Multiple points

6. Structure: G+G

7. Outline size: 164.10*99.20*2.45mm

8. VA size: --

9. Driver IC: GT9271

10. Interface: IIC

11. Connecting type: plugging type

12. Pin NO.: 8

13. Pin pitch: 1.0mm

14. Operating system support: Linux, Android

15. Compliant: RoHS

16. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
