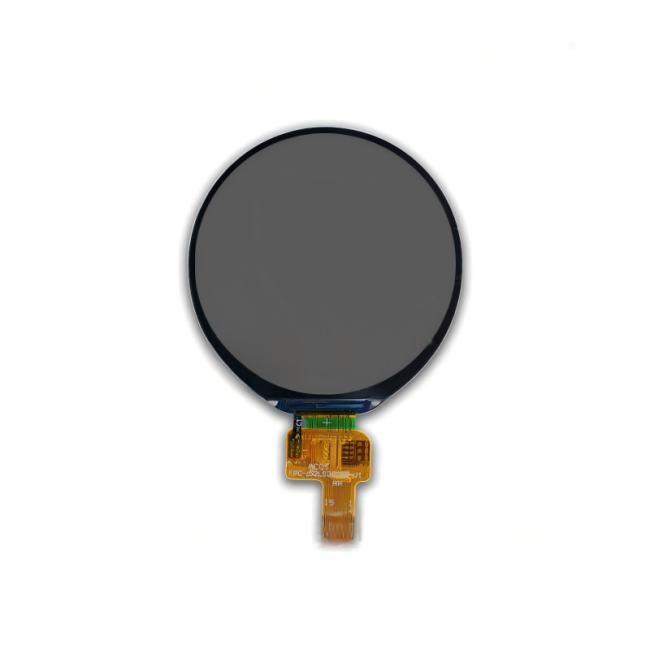

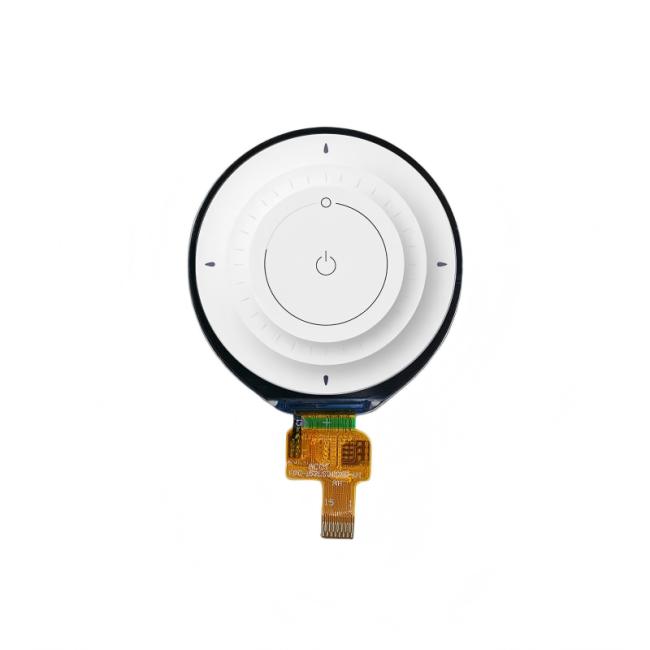

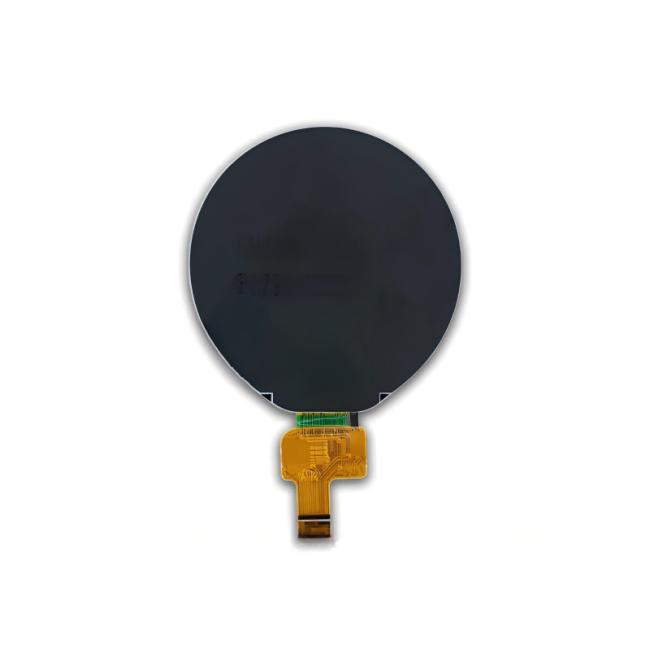

1.52 inch high contrast Round Industrial TFT LCD WITH QSPI Interface ST77916 IC
1. Product name: 1.52 inch high contrast Round Industrial TFT LCD WITH QSPI Interface ST77916 IC
2. Part No.: SJ015LQRLSFSD001
3. Size.: 1.5 inch
4. Compatible part No.: --
5. With touch panel or not: No
6. Touch type: No
7. Display type: IPS
8. Display colors: 262K
9. Resolution (pixels): 360x360
10. Pixel pitch: --
11. Viewing direction: Free V.A
12. Driver IC: ST77916
13. Display mode: Transmissive / Normally black
14. Overall size: 40.08*41.97*1.46mm
15. Viewing area: --
16. Active area: 37.58*37.58mm
17. Luminance: 500cd/m²
18. Contrast: 1500∶1
19. Interface type: QSPI
20. Pin NO.: 15
21. Pin pitch: --
22. Connecting type: plugging type
23. Input voltage: 2.8V
24. Backlight type and color: LED backlight / white
25. Backlight: 3 LEDs Parallel
VF=3.0V, IF=60mA
26. LED life time: TBD
27. Operating temperature range: -20℃～+70℃
28. Storage temperature range: -30℃～+80℃
29. Compliant: RoHS
30. Certification of registration: ISO9001, ISO13485, ISO14001, IATF16949
