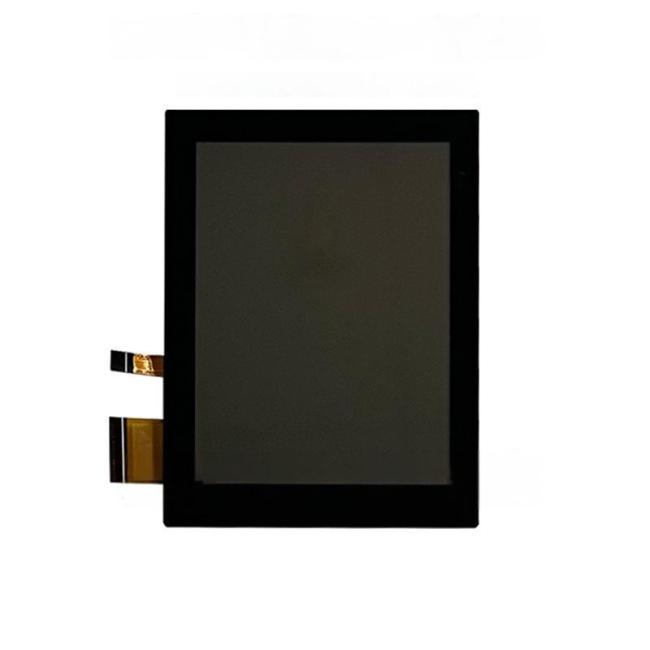

3.5-inch 240*320 Resolution Industrial TFT Display with Capacitive Touch and MCU/SPI+RGB Interface

Product Name: 3.5-inch 240*320 transflective outdoor LCD display with MCU/SPI+RGB interface and capacitive touch
Model:
Similar Models: /
Size: 3.5 inches
Display Mode: TFT LCD
Touch Type: Capacitive Touch Screen
Display Colors: 65K/262K
Resolution: 240*320
Dot Pitch: 0.2235(H)*0.2235(V)
Viewing Direction: 6:00
Controller IC: ILI9341
Display Type: Transflective, Normally White
Outline Dimension: 66.2487.124.43 mm
Viewable Area: 54.24*72.12 mm
Active Area: 53.64*71.52 mm
Brightness: 120 nits
Contrast Ratio: 60:1
Interface Type: 3/4 serial 8/9/16/18bit MCU, 3/4SPI+16/18BIT RGB
Number of Pins: 45
Pin Pitch: 0.3 mm
Connection Type: Plug-in
Operating Voltage: 4.6 V
Backlight Color and Type: White LED Backlight
Backlight Circuit: 6 LEDs, 20 mA, 19.2±0.3 V
Service Life: 50000 h
Operating Temperature: -20°C -- 70°C
Storage Temperature: -30°C -- 80°C
Quality System Certifications: ISO9001, ISO13485, TS16949, RoHS
Packaging: Anti-static bag, carton
Touch Screen Assembly Parameters:
30. Operating Principle: Projected Capacitive
31. Light Transmittance: ≥85%
32. Haze Value: ≤3%
33. Hardness: ≥6H
34. Channel Count:
35. Touch Points: Multi-touch
36. Structure: G+G
37. Outline Dimension: 66.2487.124.43 mm
38. Viewable Area: 54.24*72.12 mm
39. Driver IC: ST1633i
40. Interface: I2C
41. Connection Type: Plug-in
42. Number of Pins: 8pin
43. Pin Pitch: 0.5 mm
44. Operating Voltage: 3.3 V
45. Operating Temperature: -20°C -- 70°C
46. Storage Temperature: -30°C -- 80°C
