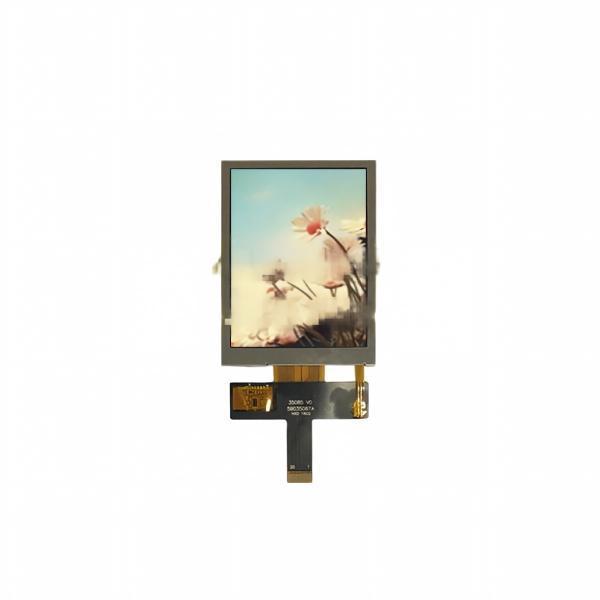

3.5-inch 480*640 MIPI Interface LCD Display Module for Industrial TFT Applications

Detailed Description:
1. Module Name: 3.5-inch, 480*640, HX8363-A, MIPI interface full-view transflective LCD module
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65/262K/16.7M
7. Resolution: 480*640
8. Dot Pitch: 0.1116(H) x 0.1116 (V)
9. Viewing Angle: Full viewing angle (160°)
10. Controller IC: HX8363-A
11. Display Type: Transflective, Normally Black
12. Outline Dimension: 64.0*85.0*3.10mm
13. Viewable Area: 56.4*74.4mm
14. Dot Matrix Area: 53.57*71.42mm
15. Luminance: 115cd/m²
16. Contrast Ratio: 300
17. Interface Type: MIPI Interface
18. Pin Count: 20
19. Pin Pitch: 0.5mm
20. Connection Type: Plug-in
21. Operating Voltage: 3.3V
22. Backlight Color and Type: White LED Backlight
23. Backlight Circuit: 8 LEDs in series
If=20mA, Vf=18.6V
24. Service Life: 50000h
25. Operating Temperature: -20~70°C
26. Storage Temperature: -30~80°C
27. Quality System Certification: ISO9001:2008
TS16949:2009
ISO 13485:2003
28. Product Certification: RoHS
