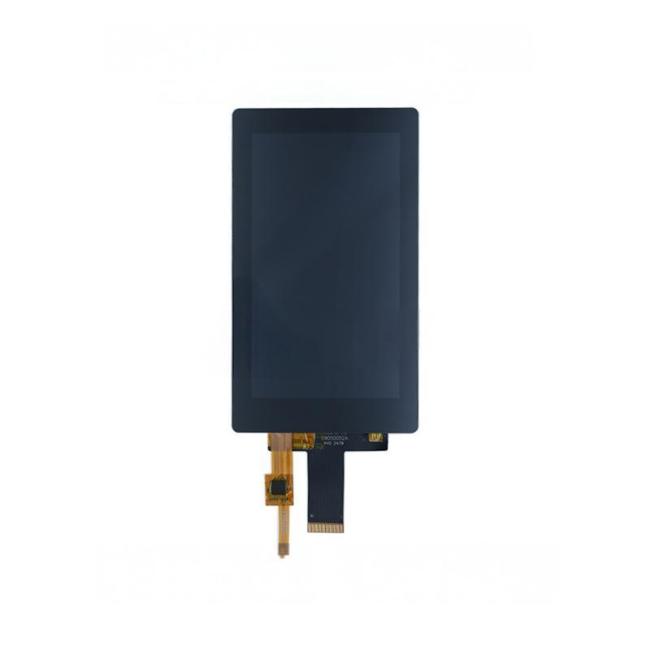

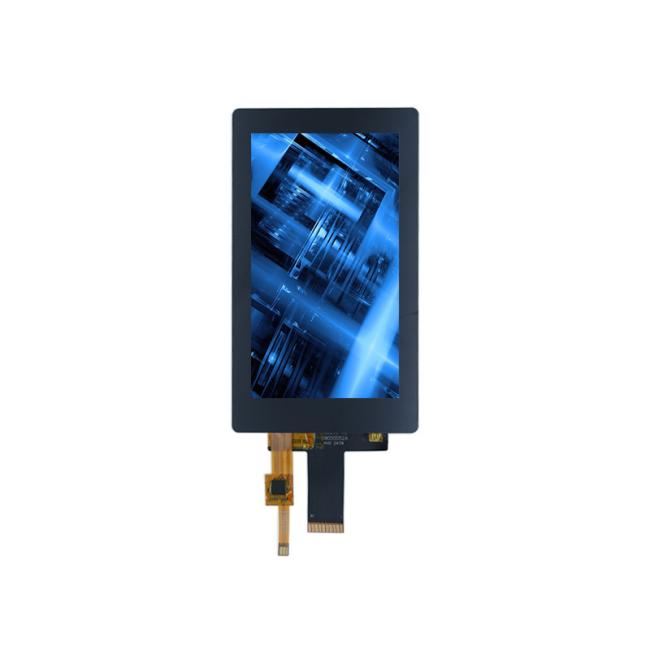

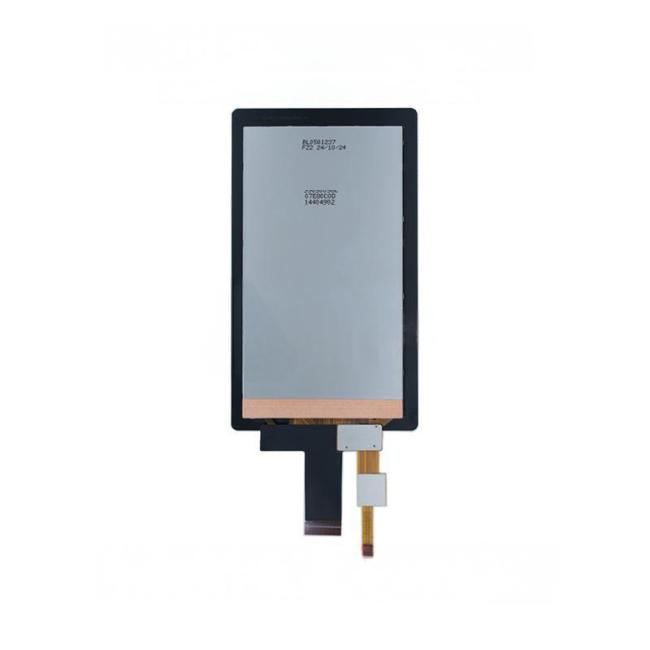

5.0-inch 720x1280 IPS LCD Screen with Capacitive Touch Screen and MIPI Interface

1. Product Name: 5.0-inch 720x1280 ILI9881C IPS LCD Screen with MIPI Interface, Capacitive Touch Screen, Fully Laminated
2. Model:
3. Size: 5.0 inches
4. Compatible Models: --
5. With Touch Function: Yes
6. Touch Type: Capacitive Touch
7. Display Mode: IPS
8. Display Colors: 16.7M
9. Resolution: 720x1280
10. Dot Pitch: 0.08625(H)*0.08625(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: ILI9881C
13. Display Type: Transmissive, Normally Black
14. Outline Dimensions: 78.56*135.65*4.33mm
15. Viewable Area: 62.70*111.00mm
16. Dot Matrix Area: 62.10*110.40mm
17. Brightness: 430cd/m²
18. Contrast Ratio: 800∶1
19. Interface Type: MIPI
20. Pin Count: 30
21. Pin Pitch: 0.5mm
22. Connection Type: Plug-in
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 12 LEDs, 6-series 2-parallel, VF=19.2V, IF=40mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949

Capacitive Touch Screen Parameters:
1. Operating Principle: Projected Capacitive
2. Light Transmittance: ≥85%
3. Haze Value: ≤3%
4. Hardness: ≥6H
5. Simultaneous Touch Points: 5 Points
6. Structure: G+G
7. Outline Dimensions: 78.56*135.65*1.63mm
8. Viewable Area: 62.70*111.00mm
9. Driver IC: GT911
10. Interface: I2C
11. Connection Type: Plug-in
12. Pin Count: 8
13. Pin Pitch: --
14. Supported Systems: Linux, Android
15. Product Certification: RoHS
16. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
