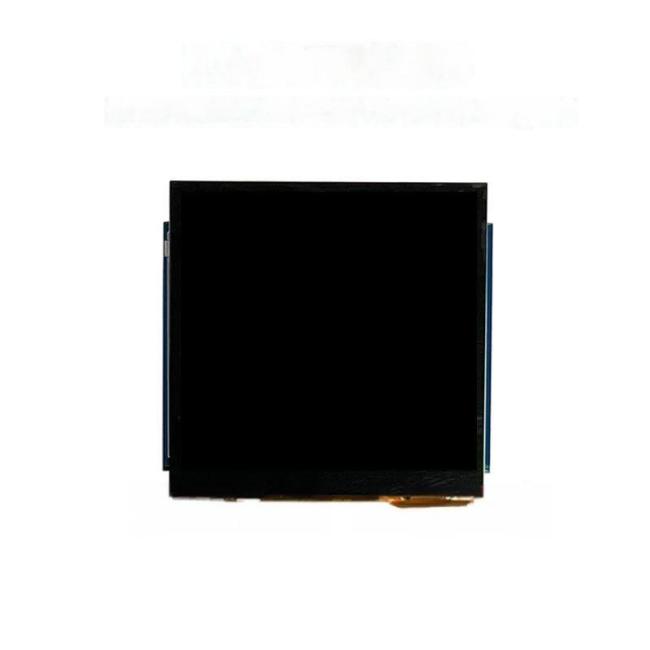

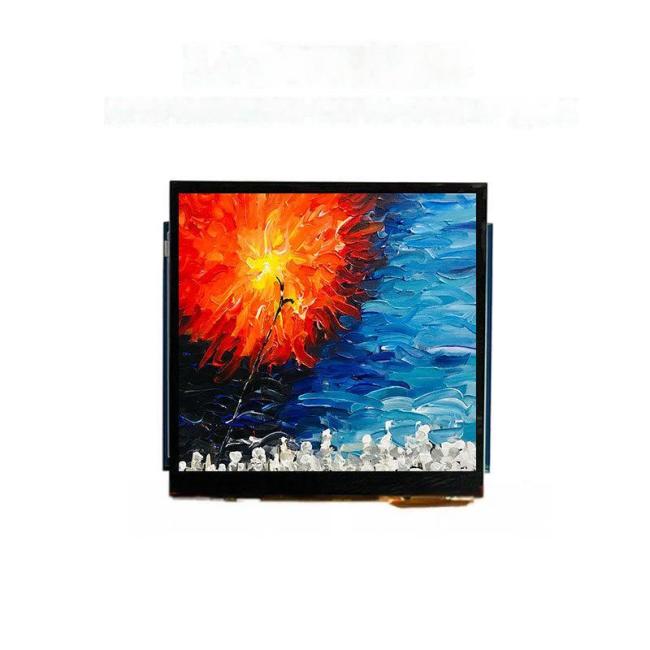

3.4-inch 480*480 full-view IPS square TFT LCD module, high brightness with Type-C interface
Price:
$1/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Product Name: 3.4-inch 480×480 Full Viewing Angle IPS Square TFT LCD Display, Type C Interface High-Bright Outdoor Display with Capacitive Touch Screen
2. Model:
3. Size: 3.4 inches
4. Touch Type: Capacitive Touch
5. Display Mode: IPS transmissive, normally black
6. Resolution: 480×480

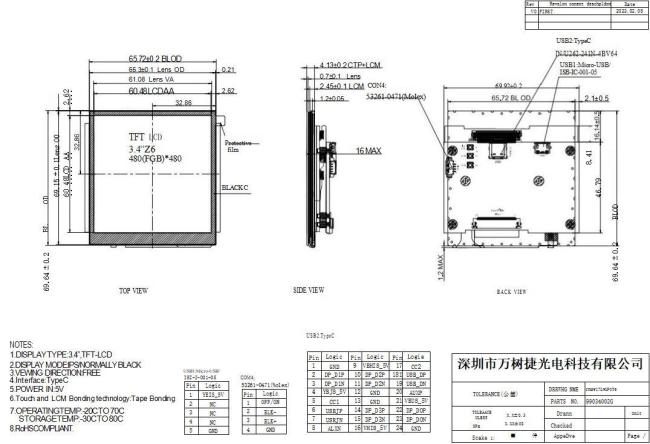

7. Outline Dimension: 65.72×69.64×16mm
8. AA Area: 60.48×60.48mm
9. Dot Pitch: 0.042×0.126mm
10. Viewing Angle: All
11. Brightness: 1000cd/m²
12. Contrast Ratio: 800

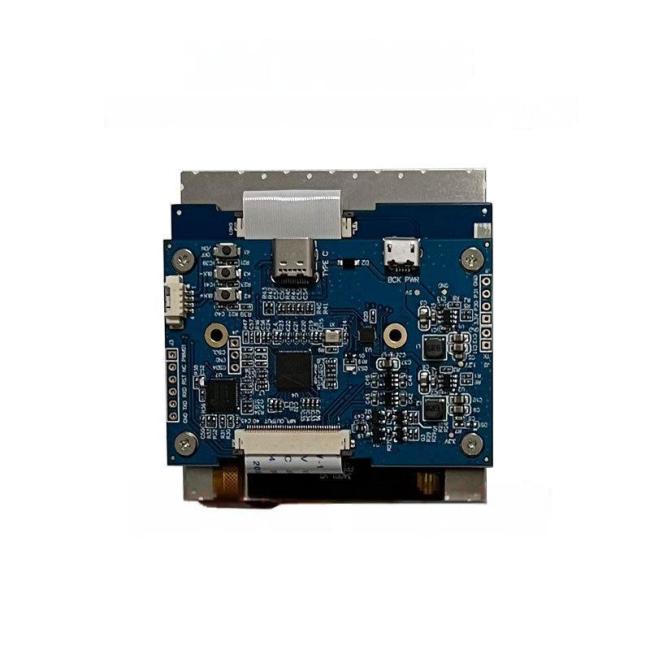

13. Interface: Type C
14. Control IC: ST7701S
15. Number of Pins: 20
16. Pin Pitch: 0.5mm
17. Connection Type: Plug-in
18. Power Supply: 5V
19. Backlight Color & Type: White LED Backlight
20. Backlight Circuit: 12 LEDs in series, If=40mA, Vf=19.2V
21. Service Life: 50000h
Capacitive Touch Panel Parameters:
24. Working Principle: Projected Capacitive
25. Light Transmittance: ≥85%
26. Haze Value: ≤3%
27. Hardness: ≥6H
28. Number of Channels:
29. Simultaneous Touch Points: Multi-touch
30. Structure: G+G
31. Outline Dimension: 65.72*69.64 mm
32. Viewable Area:
33. Driver IC: FT6336G
34. Interface: I2C
35. Connection Type: Plug-in
36. Number of Pins: 8pin
37. Pin Pitch: 0.5 mm
38. Supported Systems: Linux, Android
39. Operating Voltage: DC3.3V
40. Operating Temperature: -20 -- 70°C
41. Storage Temperature: -30 -- 80°C
42. Product Certification: RoHS
43. Quality System Certification: ISO9001 ISO13485 IATF16949 ISO14001
,
