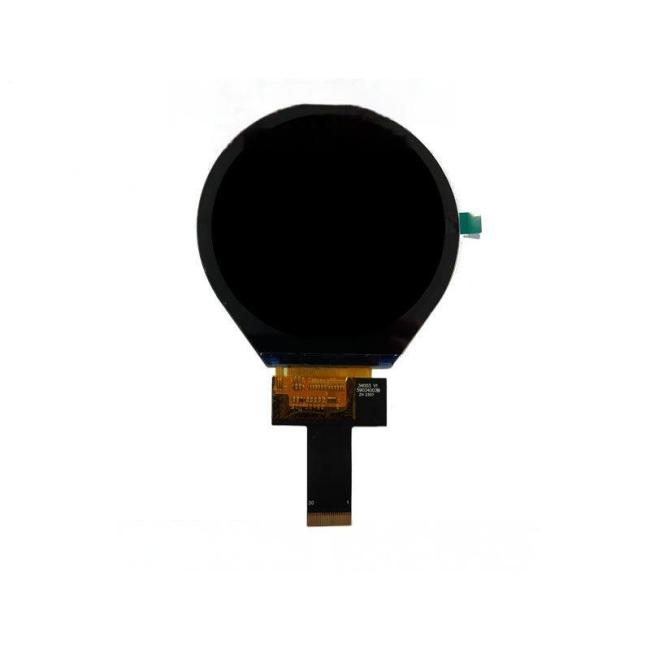

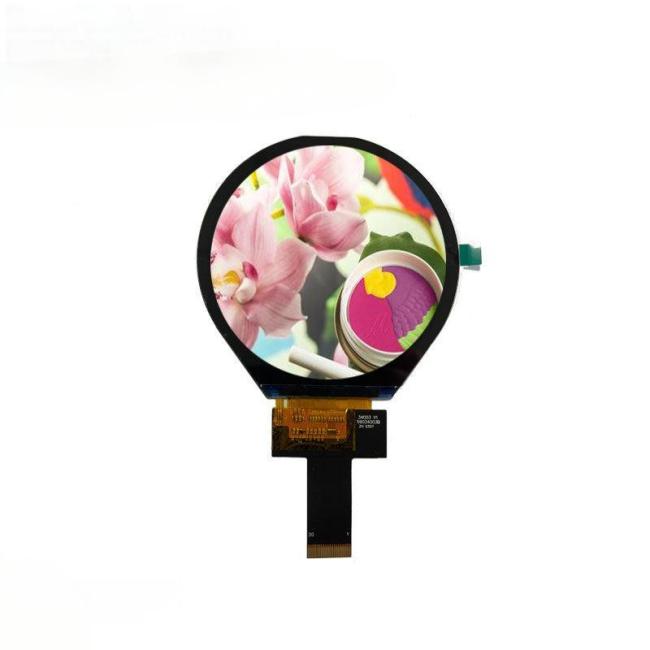

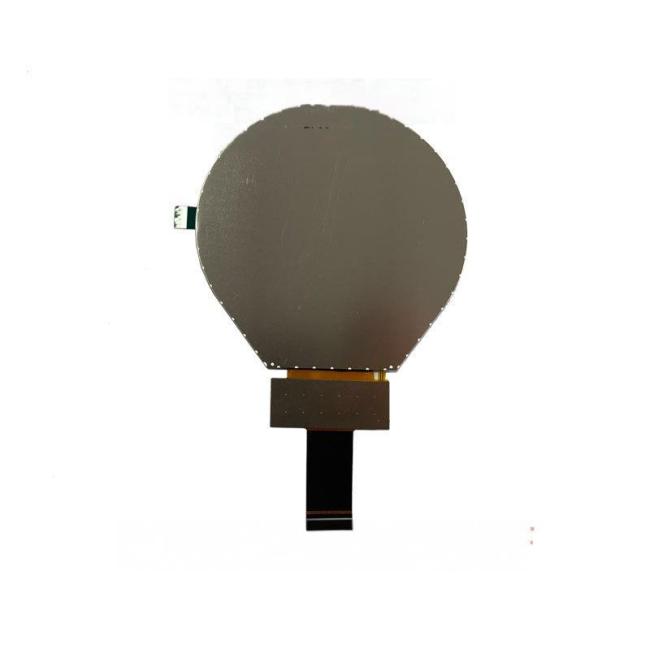

3.4-inch TFT Round 800*800 ILI9881C IPS Liquid Crystal Display, MIPI Interface Industrial LCD Module
Price:
$1/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Product Name: 3.4-inch 800×800 ILI9881C Round IPS TFT LCD Display, MIPI Interface Industrial LCD
2. Model:
3. Compatible Model: None
4. Size: 3.4 inches
5. Touch Type: None
6. Display Mode: IPS
7. Display Colors: 16.7M
8. Resolution: 800×800
9. Dot Pitch: 0.1095×0.1095mm
10. Viewing Angle: Full viewing angle
11. Control IC: ILI9881C
12. Display Type: Normally Black, Full Transmissive

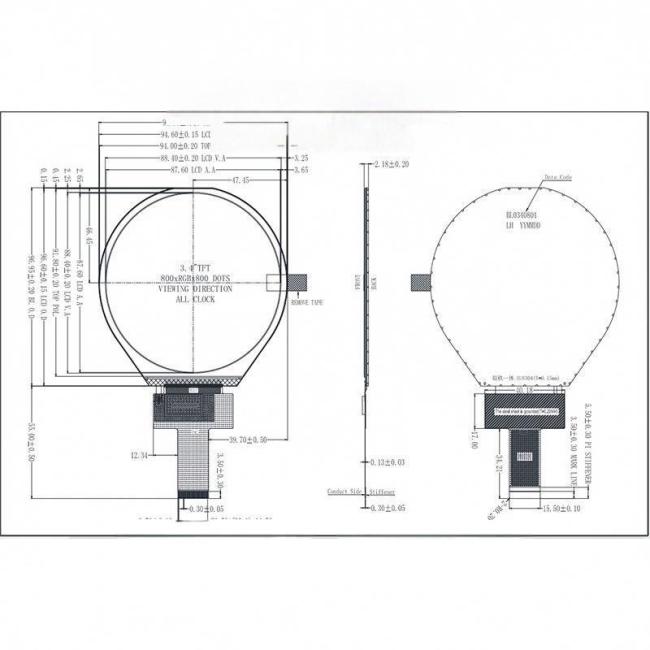

13. Outline Dimension: 94.9×96.95×2.18mm
14. Viewable Area:
15. Active Area: 87.6×87.6mm
16. Brightness: 430cd/m²
17. Contrast Ratio: 1200
18. Interface Type: 4Lane MIPI
19. Pin Count: 30PIN
20. Pin Pitch: 0.5mm
21. Connection Type: Plug-in
22. Operating Voltage: 3.3V
23. Backlight Color & Type: White LED, 8 LEDs
24. Backlight Circuit: 8LED, 2 parallel and 4 series
25. Service Life: 50000h
26. Operating Temperature: -20~+70°C
27. Storage Temperature: -30~+80°C
28. Quality System Certification: ISO9001 ISO13485 ISO14001 IATF16949
29. Product Certification: ROHS
30. Service Life: 50000h
