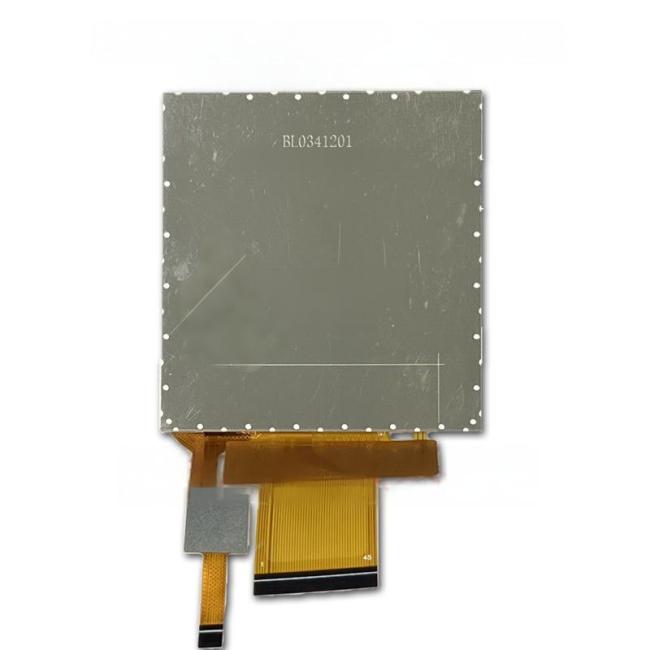

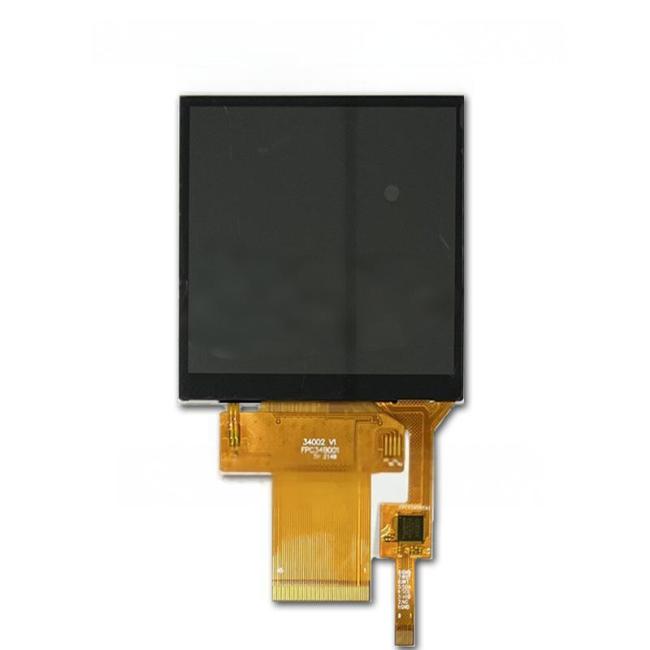

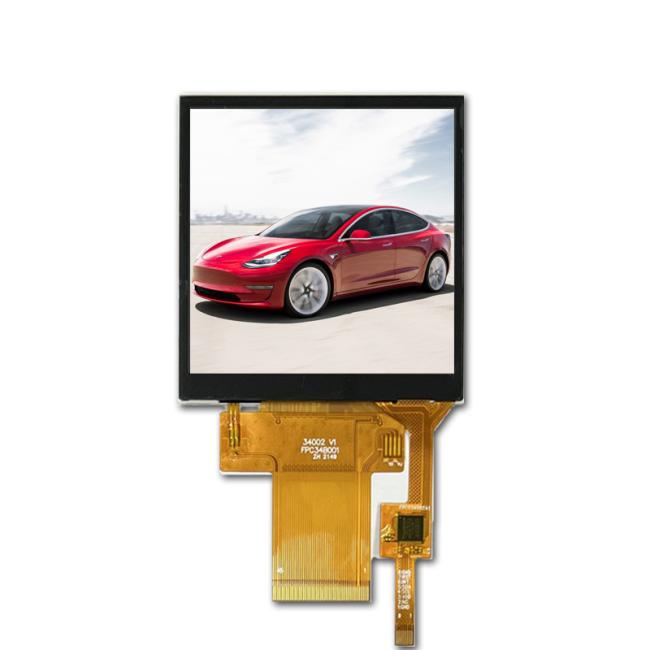

3.4-inch 480*480 IPS full-view ultra-high-brightness full-color LCD screen with SPI/RGB interface and capacitive touch panel
Price:
$1/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Module Name: 3.4-inch 480*480, ST7701S, SPI/RGB interface, IPS full viewing angle ultra-high brightness square display visible outdoors under sunlight, full-color LCD with capacitive touch screen
2. Model:
3. Compatible Models:
4. Size: 3.4 inches
5. With Touch: No
6. Display Mode: IPS
7. Resolution: 480*480
8. Dot Pitch: 0.042(H)*0.126(V)
9. Viewing Angle: Full viewing angle
10. Controller IC: ST7701S
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 65.72*69.64*2.45 mm
13. Active Area: 60.48*60.48mm
14. Contrast Ratio: 800:1
15. Interface Type: SPI/RGB interface
16. Pin Count: 45
17. Pin Pitch: 0.5mm
18. Type: Plugging type
19. Operating Voltage: 3.3V
20. Backlight Color & Type: White LED backlight
21. Backlight Circuit: 12 LEDs in series
If=40mA, Vf =19.2V
22. Service Life: 50000h
Capacitive Touch Screen Parameters:
23. Working Principle: Projected Capacitive
24. Light Transmittance: ≥85%
25. Haze Value: ≤3%
26. Hardness: ≥6H
27. Channel Number:
28. Simultaneous Touch Points: Multi-touch
29. Structure: G+G
30. Outline Dimension: 65.72*69.64 mm
31. Viewing Area:
32. Driver IC: FT6336G
33. Interface: I2C
34. Connection Type: Plugging type
35. Pin Count: 8pin
36. Pin Pitch: 0.5 mm
37. Supported Systems: Linux, Android
38. Operating Voltage: DC3.3V
39. Operating Temperature: -20 -- 70°C
40. Storage Temperature: -30 -- 80°C
41. Product Certification: RoHS
42. Quality System Certification: ISO9001 ISO13485 IATF16949
