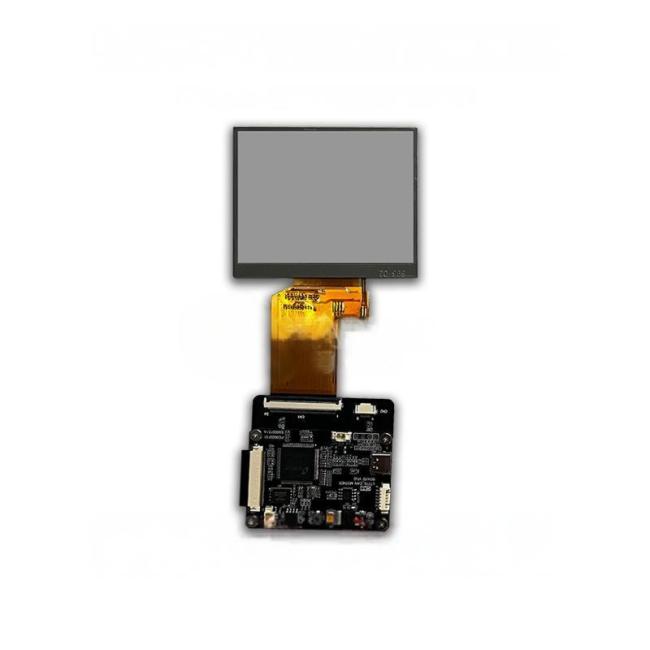

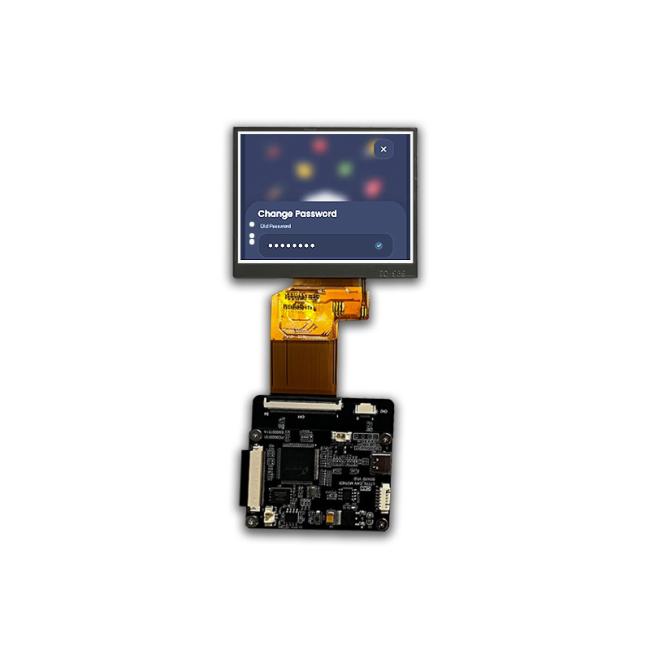

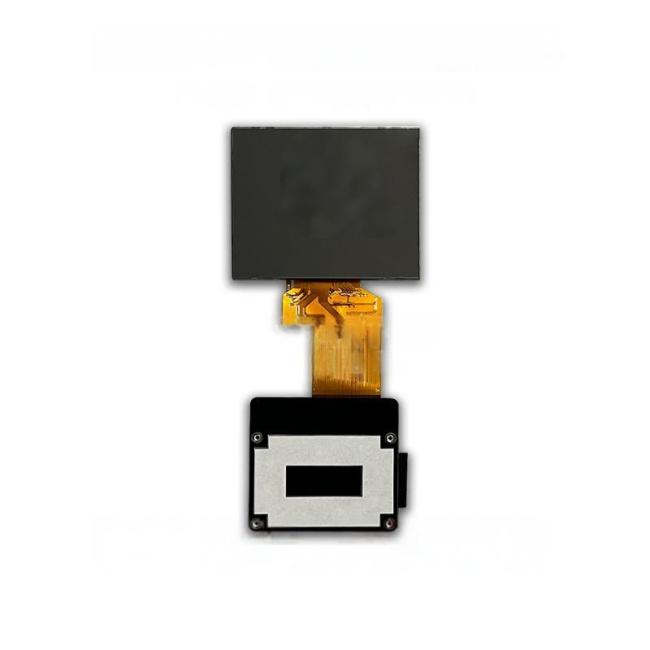

3.5-inch Wide-Temperature Industrial TFT Display with CAN Signal Interface and UART LCD Screen Module
Price:
$1/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Product Name: 3.5-inch 320x240 Serial Screen CAN Signal Interface Wide-Temperature LCD Display Module with UART Board
2. Model:
3. Size: 3.5 inches
4. Touch Function: This model does not support touch (touch version available as an option)
5. Display Mode: TFT
6. Display Colors: 16.7M
7. Resolution: 320x240
8. Screen Rotation: Supports 90° or 270° rotation
9. Dot Pitch: 0.219(H)*0.219(V)
10. Viewing Angle: Full viewing angle
11. Display Type: Transmissive, normally black
12. Screen Outline Dimension: 86.84*74.84*15.10mm
13. Viewing Area (VA): --
14. Active Area (AA): 70.08*52.56mm
15. Driver IC: ST7272A
16. Brightness: 1250cd/m²
17. Contrast Ratio: 1100∶1
18. Interface Type: CAN
19. Operating Voltage: 5V
20. Backlight Color and Type: White LED backlight
21. Backlight Circuit: 10 LEDs, 40mA, 15±0.3V
22. Service Life: 50000h
23. Operating Temperature: -30℃~+85℃
24. Storage Temperature: -40℃~+85℃
25. Product Certification: RoHS / REACH
26. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
Features of UART Board:
1. Supported Interfaces: RS232/RS485/TTL/CAN
2. Flash Memory Capacity: 128M-byte
3. Supports touch screen expansion interface
4. Supports Modbus RTU industrial communication protocol
5. Baud Rate: 115200 bps
6. Supports speaker interface
7. Supports RTC interface
8. Supports firmware update via SD card
9. Power supply through Type-C power interface
10. Supports 90° or 270° screen rotation
11. Supports serial board development tool suite
12. Driving Voltage: 5V
13. UART Board Outline Dimension: 58.76*55.47mm
Schematic Diagram of UART Serial Board: RS232/RS485/TTL/CAN share the same principle
,![]()
