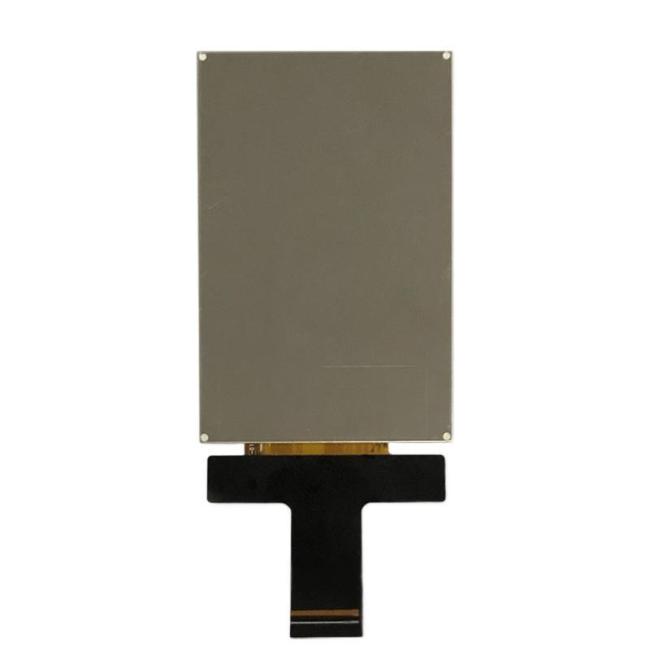

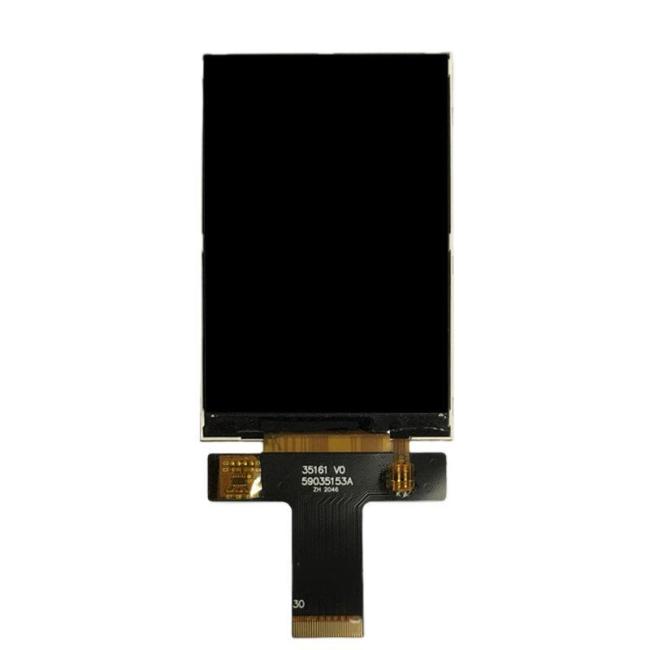

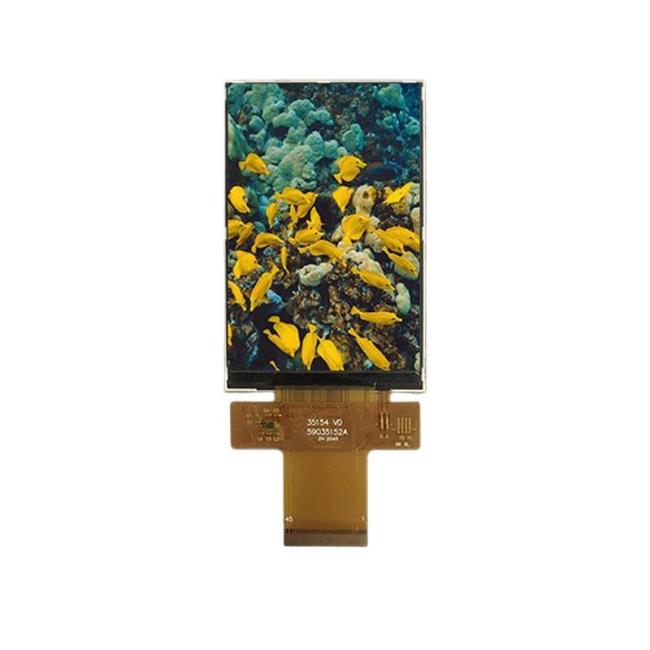

3.5-inch 640*960 SPI+RGB Industrial TFT Display IPS LCD Module with NV3052CGRB Controller
Price:
$1/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Module: 3.5-inch 640*960, NV3052CGRB, SPI+RGB IPS LCD module with long-term supply
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: IPS
6. Display Colors: 65/262K/16.7M colors
7. Resolution: 640*960
8. Dot Pitch: 0.078(H)*0.078(V)
9. Viewing Angle: All
10. Controller IC: NV3052CGRB
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 54.58*84.42*2.55 mm
13. Viewable Area:
14. Active Area: 49.92*74.88mm
15. Brightness: 500cd/m²
16. Contrast Ratio: 500
17. Interface Type: SPI+RGB
18. Pin Count: 45
19. Pin Pitch: 0.5mm
20. Connection Type: Plugging
21. Operating Voltage: 3.3V
22. Backlight Color & Type: White LED Backlight
23. Backlight Circuit: 5 series 2 parallel
If=40mA, Vf =15V
24. Service Life: 50000h
25. Operating Temperature: -30～+85℃
26. Storage Temperature: -30～+85℃
27. Quality System Certification: ISO9001 ISO13485 TS16949
28. Product Certification: RoHS
