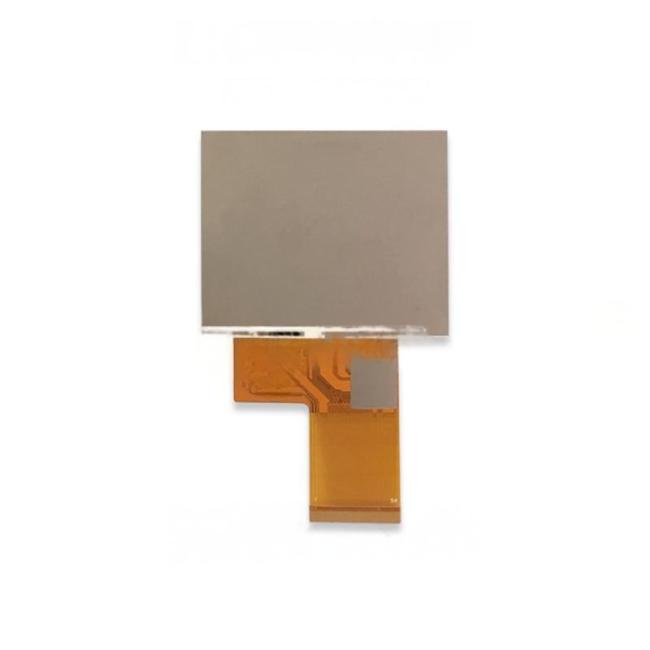

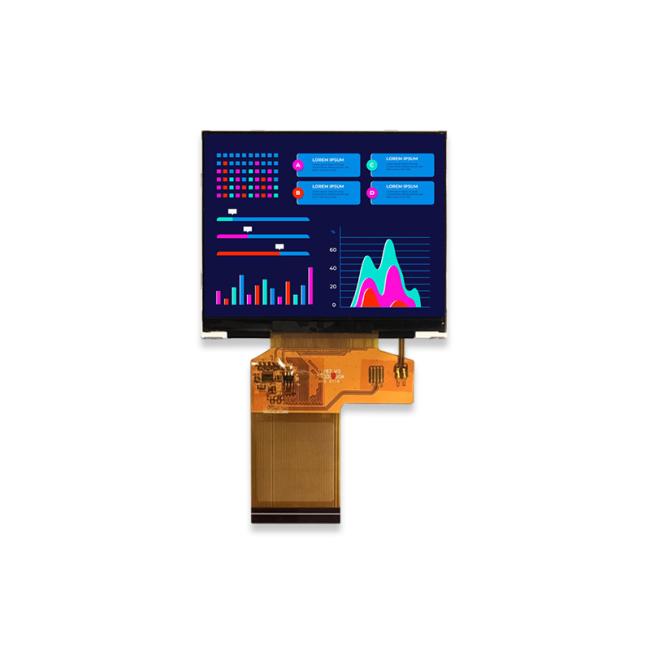

3.5-inch 640x480 Industrial TFT Display with 16/18/24-bit RGB Interface IPS LCD Module
Price:
$0/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description
1. Product Name: 3.5-inch 640x480 NV3052CGRB 16/18/24-bit RGB Interface IPS LCD Module
2. Model:
3. Size: 3.5 inches
4. Compatible Model: --
5. With Touch: No
6. Touch Type: None
7. Display Mode: IPS
8. Display Colors: 65K/262K/16.7M
9. Resolution: 640x480
10. Dot Pitch: 0.1095(H)*0.1095(V)
11. Viewing Angle: Full viewing angle
12. Driver IC: NV3052CGRB
13. Display Type: Transmissive, Normally Black
14. Outline Dimension: 74.38*62.35*2.43mm
15. Viewable Area: --
16. Dot Matrix Area: 70.08*52.56mm
17. Brightness: 800cd/m²
18. Contrast Ratio: 800∶1
19. Interface Type: 16/18/24-bit RGB
20. Number of Pins: 54
21. Pin Pitch: 0.5mm
22. Connection Type: Plug-in
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 12 LEDs, 6S2P VF=19.2V, IF=40mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
