3.5-inch 640x480 Industrial TFT Display with MIPI Interface, High-Brightness Industrial LCD Module with Capacitive Touch
Price:
$0/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description

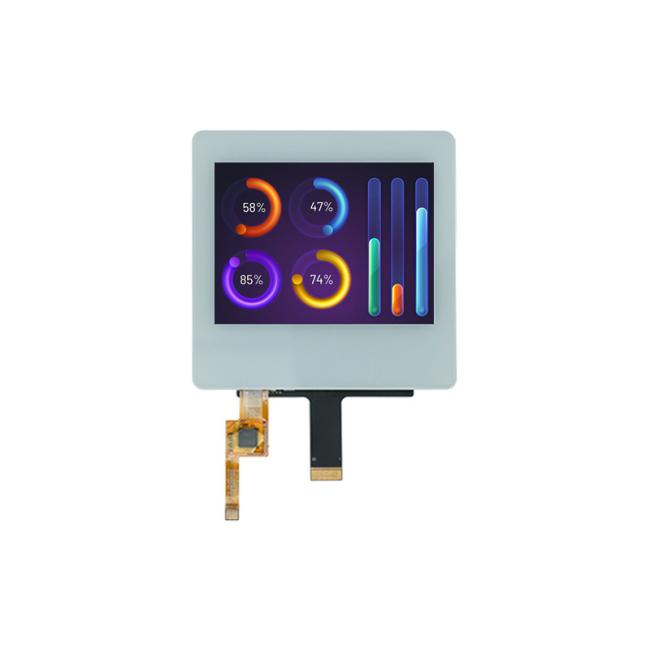

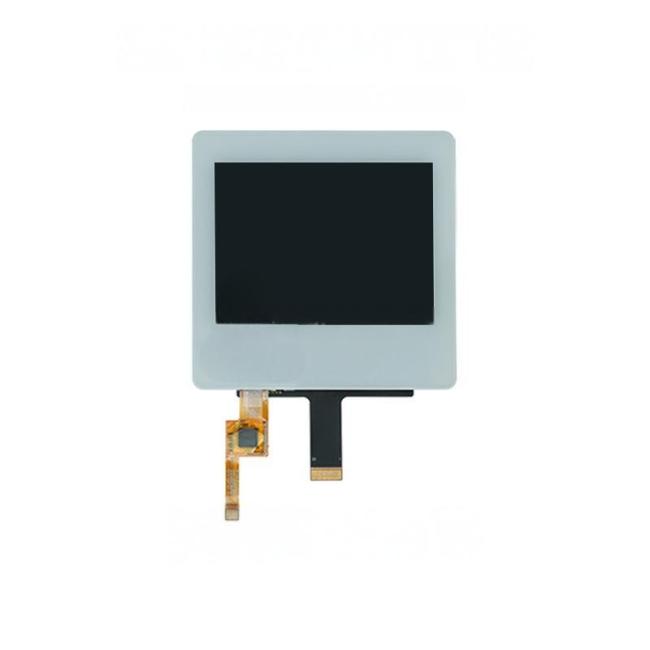

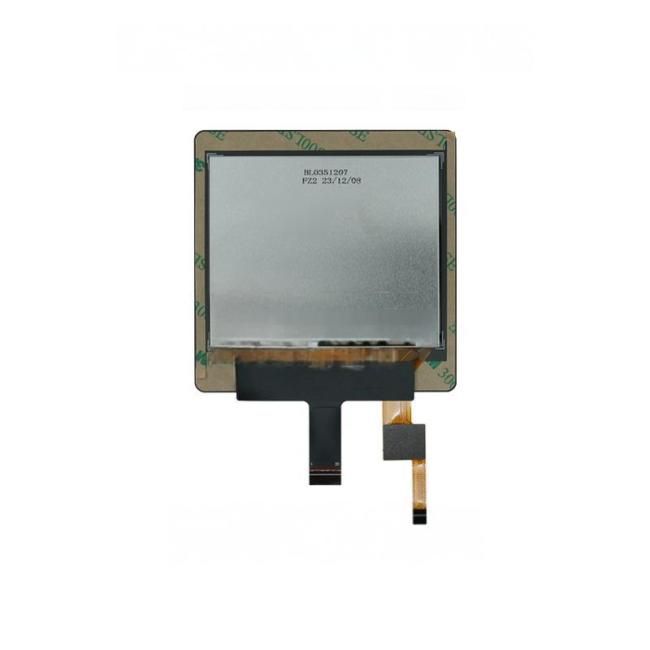

WSJ035HM0021KLCT is a 3.5-inch integrated LCM+CTP module. The module integrates a transmissive TFT-LCD panel, driving circuits, a G+G structure capacitive touch screen and a 12-LED edge-lit backlight unit. The TFT has a resolution of 640×480 pixels and supports 16.7M color display, with an active display area of 70.08 (H) × 52.56 (V) mm. The CTP is equipped with the FT5436DQQ controller, supporting the I2C interface and 5-point touch. The module dimension is 85.80×85.80×4.46mm. Its operating and storage temperature range is -30~+85℃. The typical digital supply voltage is 3.3V, the typical backlight brightness is 950cd/m², the LED service life is 50000 hours, and it adopts a 2-lane MIPI interface.
1. Product Name: 3.5-inch Horizontal Screen 640x480 ST7703 Display, MIPI Interface Color Industrial LCD High-brightness High-contrast Liquid Crystal Display Module with Capacitive Touch
2. Model: WSJ035HM0021KLCT
3. Size: 3.5 inches
4. Compatible Model: --
5. With Touch: Yes
6. Touch Type: Capacitive Touch
7. Display Mode: TFT
8. Display Color: 16.7M
9. Resolution: 640x480
10. Dot Pitch: 0.1095(H)*0.1095(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: ST7703
13. Display Type: Full Transmissive, Normally Black
14. Outline Dimension: 85.80*85.80*4.46mm
15. Viewable Area: 70.68*53.16mm
16. Dot Matrix Area: 70.08*52.56mm
17. Brightness: 950cd/m²
18. Contrast Ratio: 1200∶1
19. Interface Type: 2 Lane MIPI
20. Pin Count: 20
21. Pin Pitch: 0.5mm
22. Connection Type: Plug-in
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 12 LEDs, 6-series 2-parallel, VF=19.2V, IF=40mA
26. Service Life: 50000h
27. Operating Temperature: -30℃～+85℃
28. Storage Temperature: -30℃～+85℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
Capacitive Touch Panel Specifications:
1. Operating Principle: Projected Capacitive
2. Light Transmittance: ≥85%
3. Haze Value: ≤3%
4. Hardness: ≥6H
5. Simultaneous Touch Points: 5 points
6. Structure: G+G
7. Outline Dimension: 85.80*85.80*1.85mm
8. Viewable Area: 70.68*53.16mm
9. Driver IC: FT5436DQQ
10. Interface: I2C
11. Connection Type: Plug-in
12. Pin Count: 8
13. Pin Pitch: 0.5mm
14. Supported Systems: Linux, Android
15. Product Certification: RoHS
16. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
