3.5-inch 480x800 MIPI Interface TFT LCD Module with Capacitive Touch Screen for Industrial TFT Display
Price:
$0/pieces 1-99 pieces
MOQ:
1pcs
Delivery Time:
1-2WEEKS
Brand:
WANSHUJIE
Product Description

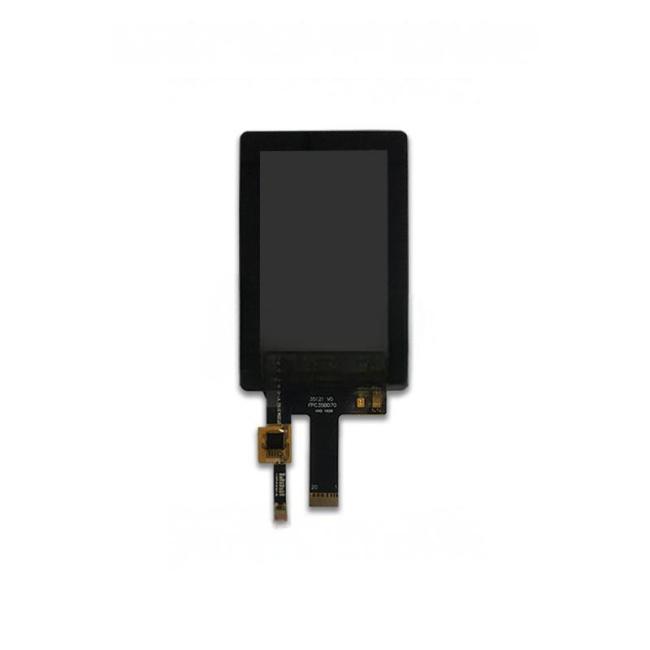

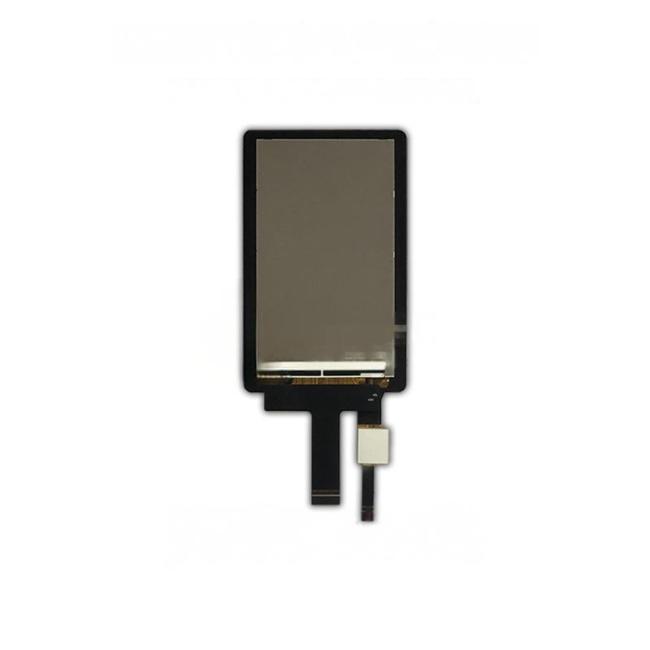

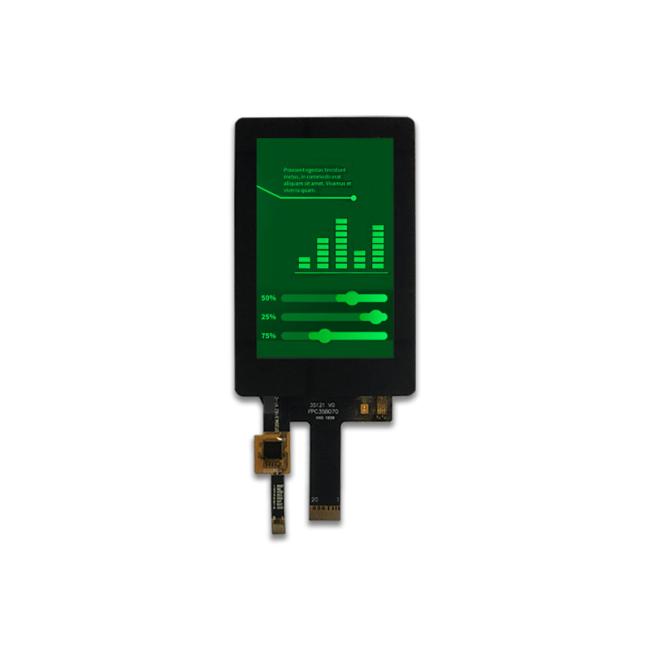

WSJ0035HM0045KTCL is a 3.5-inch TFT LCD module with touch function. It adopts ST7701S display controller and FT5436DQQ touch controller, with a resolution of 480(RGB)×800 pixels, capable of displaying 16.7M colors, supporting full viewing angle, 5-point touch and gesture operations. TTCLhe overall dimension is 60.16×96.3×4.46mm, operating voltage is 3.3V. The operating temperature range of the display module is -20~+70℃, and the operating temperature range of the touch module is -30~+85℃.
1. Product Name: 3.5-inch 480x800 ST7701S Full Viewing Angle MIPI Interface TFT LCD Module with Capacitive Touch Screen
2. Model: WSJ0035HM0045KTCL
3. Size: 3.5 inches
4. Compatible Model: --
5. With Touch Function: Yes
6. Touch Type: Capacitive Touch
7. Display Mode: TFT
8. Display Colors: 16.7M
9. Resolution: 480x800
10. Pixel Pitch: 0.0945(H)*0.0945(V)
11. Viewing Angle: Full Viewing Angle
12. Driver IC: ST7701S
13. Display Type: Normally Black, Transmissive
14. Outline Dimension: 60.16*96.30*4.46mm
15. Active Area: 45.96*76.20mm
16. Dot Matrix Area: 45.36*75.60mm
17. Brightness: 420cd/m²
18. Contrast Ratio: 700∶1
19. Interface Type: 2-Lane MIPI
20. Pin Count: 20
21. Pin Pitch: 0.5mm
22. Connection Type: Plug-in
23. Operating Voltage: 3.3V
24. Backlight Color & Type: White LED Backlight
25. Backlight Circuit: 7 LEDs in series, VF=21V, IF=20mA
26. Service Life: 50000h
27. Operating Temperature: -20℃～+70℃
28. Storage Temperature: -30℃～+80℃
29. Product Certification: RoHS
30. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
Capacitive Touch Panel Parameters:
1. Operating Principle: Projected Capacitance
2. Light Transmittance: ≥85%
3. Haze Value: ≤3%
4. Hardness: ≥6H
5. Simultaneous Touch Points: 5 points
6. Structure: G+G
7. Outline Dimension: 60.16*96.30*1.50mm
8. Active Area: 45.36*75.60mm
9. Driver IC: FT5436DQQ
10. Interface: I2C
11. Connection Type: Plug-in
12. Pin Count: 8
13. Pin Pitch: 0.5mm
14. Supported Systems: Linux, Android
15. Product Certification: RoHS
16. Quality System Certification: ISO9001, ISO13485, ISO14001, IATF16949
