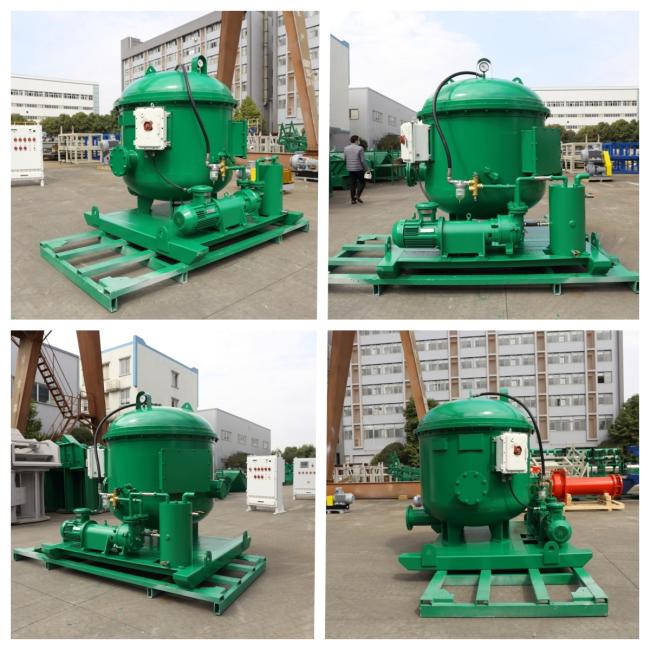

Vertical Vacuum Degasser - Space-Saving Design for Drilling Mud Gas Removal
Engineered for high-risk drilling environments, the ZSCQ/120 utilizes a vacuum pump (2880rpm, 3kW) to create negative pressure, fracturing gas bubbles in mud. Its optimized separation chamber maximizes contact time for 85%+ efficiency. The system operates isothermally, preventing ignition hazards with flammable gases. Compatible with ZJ20-ZJ90 rigs, it requires minimal maintenance and doubles as a heavy-duty agitator when gas intrusion is absent.
Features
High suction efficiency - Water ring vacuum pump is used.
High separation efficiency - Adopting a multi-layer folded parachute separator - Large separation area, high gas separation efficiency.
Automatic control - Stainless steel floating ball is used to adjust the vacuum level automatically.
High treatment capacity - High efficiency jet discharge is used.
Easy maintenance - Designed with wide access ports.
| Model | ZSCQ / 120 |
| Capacity (m³/h) | 120 |
| Separation Area (c㎡) | 27720 |
| Vacuum Level (MPa) | 0.02 ~ 0.04 |
| Separation Efficiency (%) | ≥85 |
| L × W × H (mm) | 2163 × 1138 × 1512 |
| Weight (kg) | 950 |
| Matching Centrifugal Pumps | |
| Flow (m3 /h) | 150 |
| Lift (m) | 22 ~ 30 |
| Rotational Speed (rpm) | 1470 |
| Mating Power (kW) | 22 ~ 30 |
|
Vacuum Pumps |
|
| Rotational Speed (rpm) | 2880 |
| Mating Power (kW) | 3 |
