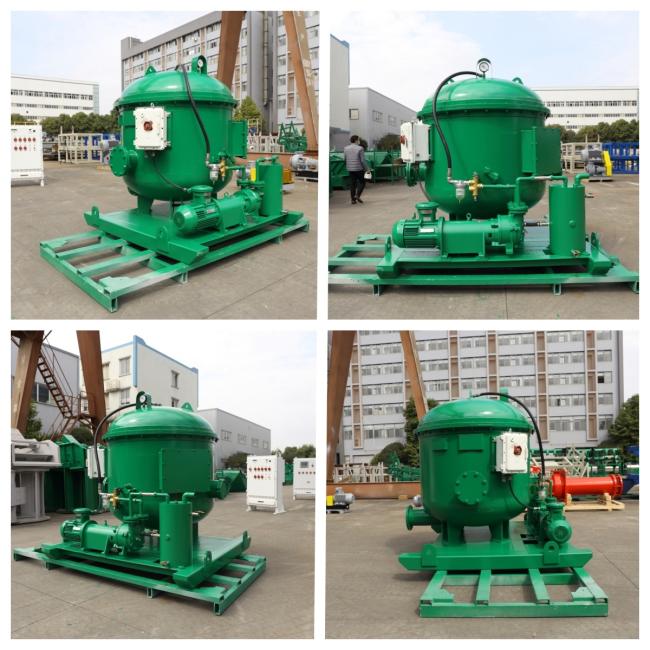

Deep Wells 1480rpm Vacuum Degasser Reduces Drilling Fluid Viscosity Vacuum Degasifier
Cost-Effective Degasser for Deep Wells | Reduces Drilling Fluid Viscosity
As secondary solids control equipment, the ZSCQ/240 integrates with desanders and centrifuges via its 2400m³/h transfer capacity and lift pump support. The vacuum degasser’s dual role as an agitator homogenizes mud before chemical treatment, while gas discharge pipes route safely away from rig zones. Pre-wired for automated tank-level monitoring, it cuts installation time by 50% versus modular units.
Features
High suction efficiency - Water ring vacuum pump is used.
High separation efficiency - Adopting a multi-layer folded parachute separator - Large separation area, high gas separation efficiency.
Automatic control - Stainless steel floating ball is used to adjust the vacuum level automatically.
High treatment capacity - High efficiency jet discharge is used.
Easy maintenance - Designed with wide access ports.
Parameters
| Model | ZSCQ / 240 |
| Capacity (m³/h) | 240 |
| Separation Area (c㎡) | 92041 |
| Vacuum Level (MPa) | 0.03 ~ 0.05 |
| Separation Efficiency (%) | ≥95 |
| L × W × H (mm) | 2653 × 2000 × 2050 |
| Weight (kg) | 1900 |
| Matching Centrifugal Pumps | |
| Flow (m3 /h) | 200 |
| Lift (m) | 30 ~ 35 |
| Rotational Speed (rpm) | 1480 |
| Mating Power (kW) | 45 ~ 55 |
|
Vacuum Pumps |
|
| Rotational Speed (rpm) | 1450 |
| Mating Power (kW) | 5.5 |
