59rpm 73rpm Mud Agitators Low Maintenance Dirt Agitator For Rig Tanks
Reliable Drilling Fluid Agitators - Low Maintenance, Optimized for Rig Tanks

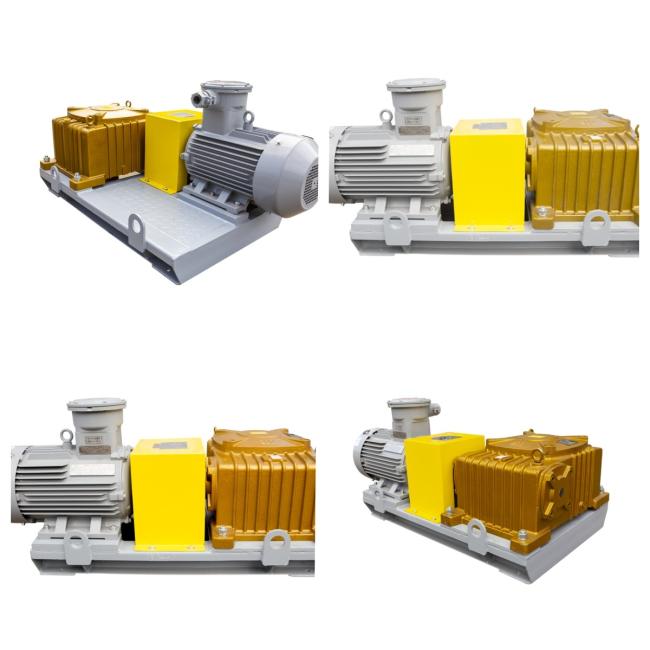

The mud agitator is a device in the solids control system specifically designed to maintain the uniformity and stability of the drilling mud and to suspend the solid phase particles while providing continuous and reliable mixing of the drilling fluid.
XBSY JB/W series mud agitators are divided into two categories: single-wave wheel and double-wave wheel, each category contains JB/W2.2, JB/W3, JB/W5.5, JB/W7.5, JB/W11, JB/W15, JB/W18.5 and JB/W22, which can adapt to the needs of both 50 and 60 Hz power grids.
Features
Reliable Operation - good performance, low maintenance and low noise with worm/turbine reducer.
Good Mixing Effect - The use of inclined blades - Nice stirring and mixing effect.
Wide Range of Application - Diversified structure, widely used in land mud tanks and offshore platforms.
| Model | Motor Power | Motor Speed | Impeller Speed (rpm) | Impeller Discharge | Impeller Diameter (mm) | Weight (kg) | L × W × H (mm) | ||
| / | / | / | 50HZ | 60HZ | / | Single Impeller | Double Impeller | / | / |
| JB / W11 | 11 | 1460 / 1760 | 59 or 73 | 71 | 18750 | 940 | U900/L600 | 462 | 1222×664×665 |
