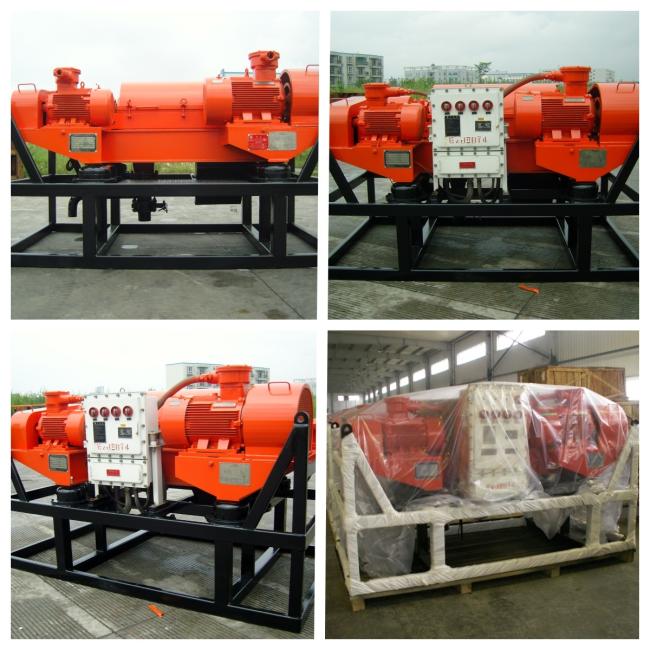

45KW 55kW Drilling Mud Centrifuge 1537Fr Drilling Fluid Centrifuge
Cost-Effective Drilling Centrifuge: 45/55kW Motor & 1537 Fr Force
Duplex stainless steel drum (520 mm diameter) resists abrasion from silica-rich formations. Tungsten carbide tiles protect conveyor blades, extending wear life to 8,000 hours. Vibration isolators ensure stability on uneven terrain, while corrosion-resistant coatings withstand marine environments.Achieve 30% lower operating costs versus VFD centrifuges. The direct-drive system eliminates frequency converter losses, and pulley adjustments require no specialized training. ROI: <8 months via reduced fluid waste and extended equipment lifespan. Compatible with screw/centrifugal feed pumps for flexible integration.
Features
Constant Drum Speed - Can be changed by changing the drive pulley.
Easy to Operate and Maintain- Can be matched with different drum speeds and processing capacities according to the size of the drilling rig and actual demand.
Cost-saving - The centrifuge of choice for conventional drilling mud treatment.
| Model | LW520 × 1290-N |
| Drive Type | Power Frequency |
| Drum Inner Diameter (mm) | 520 |
| Drum Working Length (mm) | 1290 |
| Maximum Drum Speed (r/min) | 2500 |
| Drum Working Speed (r/min) | 2100 / 2300 |
| Fr | 1284 / 1537 |
| Pusher Differential Speed (r/min) | 25 |
| Max. Capacity (m3/h) (Clearwater) | 70 |
| Rated Power (kW) (Main Motor) | 45 / 55 kW |
| Rated Speed (r/min) (Main Motor) | 1480 r / min |
| Rated Power (kW) (Auxiliary Motor) | 15 kW |
| Rated Speed (r/min) (Auxiliary Motor) | 970 r/min |
| Feeding Pump Model | Screw Pumps or Centrifugal Pumps |
| L * W * H (mm) | 3280 × 1725 × 1780 |
| Weight (kg) | 4000 |
