High Tensile Strength 7x7 Galvanized Aircraft Cable 1x7 1x19 7x19
Price:
Negotiable
MOQ:
1000 meters
Delivery Time:
15-30 days
Brand:
gaosheng
Product Description

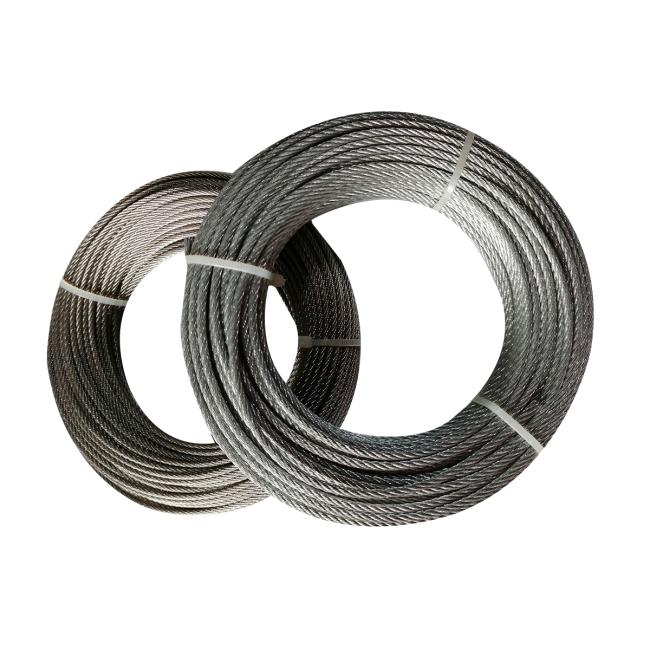

High Tensile Strength 7×7 Galvanized Aircraft Cable
Galvanized aircraft cable is manufactured according to strict requirements for pulling force and tensile strength. Designed for use as winch cable or control cable in aircraft operating systems, including applications in rudder, aileron, engine, landing gear, and compass needle corrector systems. Manufactured to MIL-W-83420D standard.
Key Features
- Precision manufacturing with dimensional accuracy up to ±0.01mm
- Exceptional surface quality and brightness
- Superior corrosion resistance and high tensile strength
- Excellent fatigue resistance for long service life
- Minimal impurities with stable chemical composition
- Manufactured from premium 60#, 65#, or 70# carbon steel
- Available with hot galvanizing or electrogalvanizing treatment
- Packaging options: wooden reel or coil
Technical Specifications
| Diameter (inches) | Construction | Breaking Strength (lbs) | Weight (lbs)/1000 Ft |
|---|---|---|---|
| 1/16" | 1×7 | 500 | 10 |
| 3/64" | 7×7 | 270 | 5 |
| 1/16" | 7×7 | 480 | 8 |
| 5/64" | 7×7 | 650 | 12 |
| 3/32" | 7×7 | 920 | 16 |
| 1/8" | 7×7 | 1700 | 28 |
| 5/32" | 7×7 | 2600 | 46 |
| 3/16" | 7×7 | 3700 | 64 |
| 1/4" | 7×7 | 6100 | 106 |
| 3/32" | 1×19 | 1200 | 20 |
| 3/32" | 7×19 | 1050 | 17 |
| 1/8" | 7×19 | 2000 | 29 |
| 5/32" | 7×19 | 2800 | 45 |
| 3/16" | 7×19 | 4200 | 65 |
| 7/32" | 7×19 | 5600 | 89 |
| 1/4" | 7×19 | 7000 | 111 |
| 5/16" | 7×19 | 9800 | 173 |
| 3/8" | 7×19 | 14400 | 243 |
