6X7 6X19 1/8" Preformed Galvanized Steel Wire Rope Galvanized Aircraft Cable
Price:
CN¥0.4993/meters >=10000 meters
MOQ:
10000 meters
Delivery Time:
22-30 days, 15-30 Days
Brand:
Gaosheng
Product Description

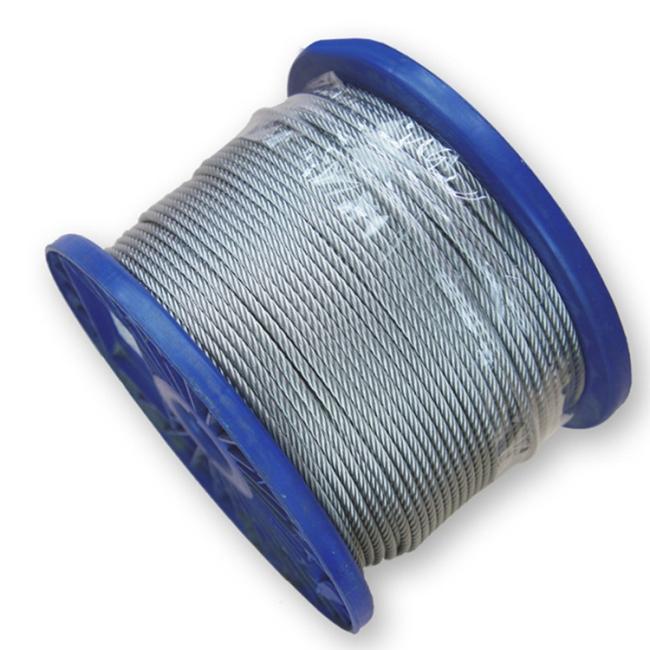

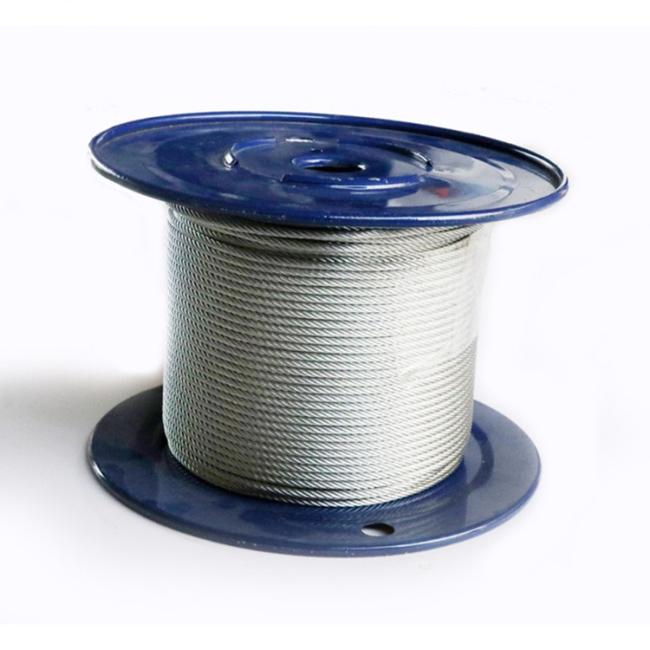

6X7 6X19 1/8" Preformed Galvanized Steel Wire Rope Galvanized Aircraft Cable
Galvanized aircraft cable is manufactured according to the strict requirement related to the pulling force and tensile strength of the aircraft cable. It is generally used as the winch cable or the control cable for the operating system and control system of airliner and transport aircraft, such as rudder, aileron, engine, landing gear, compass needle corrector, etc, manufactured according to MIL-W-83420D standard.
Features
- Produced with dimensional accuracy up to ±0.01mm.
- Outstanding surface quality and surface brightness.
- The galvanized aircraft cable is characterized by good corrosion resistance, high tensile strength, and outstanding fatigue resistance.
- This steel wire rope contains little impurities. The stable chemical composition makes the product durable for use.
- Made of superior 60#, 65#, or 70# carbon steel, treated with hot galvanizing or electrogalvanizing technology.
- Can be packed with wooden reel or in coil.
| Diameter meter | Construction | Breaking Strength (lbs) | Weight (lbs)/1000 Ft |
| 1/16" | 1x7 | 500 | 10 |
| 3/64" | 7x7 | 270 | 5 |
| 1/16" | 7x7 | 480 | 8 |
| 5/64" | 7x7 | 650 | 12 |
| 3/32" | 7x7 | 920 | 16 |
| 1/8" | 7x7 | 1700 | 28 |
| 5/32" | 7x7 | 2600 | 46 |
| 3/16" | 7x7 | 3700 | 64 |
| 1/4" | 7x7 | 6100 | 106 |
| 3/32" | 1x19 | 1200 | 20 |
| 3/32" | 7x19 | 1050 | 17 |
| 1/8" | 7x19 | 2000 | 29 |
| 5/32" | 7x19 | 2800 | 45 |
| 3/16" | 7x19 | 4200 | 65 |
| 7/32" | 7x19 | 5600 | 89 |
| 1/4" | 7x19 | 7000 | 111 |
| 5/16" | 7x19 | 9800 | 173 |
| 3/8" | 7x19 | 14400 | 243 |
