4 X 31 8.3mm Hot Dip Galvanized Steel Wire Rope For Suspended Platform
MOQ:
5000 meters
Delivery Time:
Negotiable
Brand:
gaosheng
Product Description

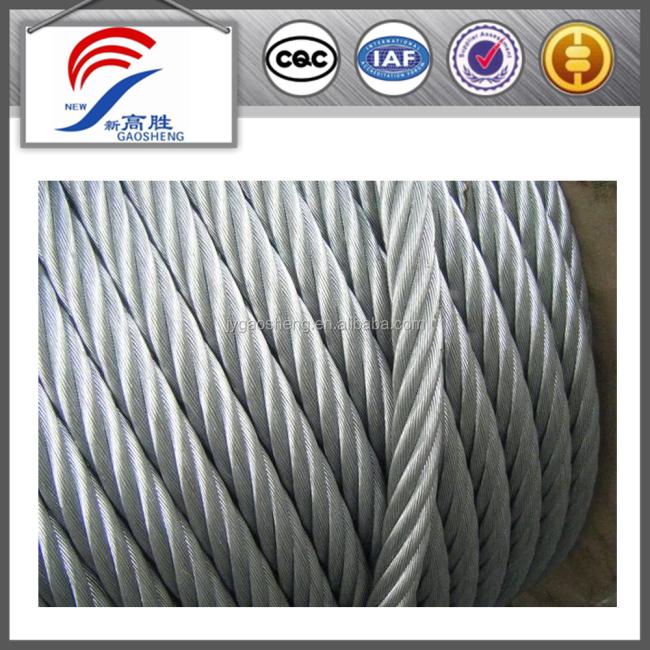

4x31 8.3mm Hot Dip Galvanized Steel Wire Rope for Suspended Platform
Product Specifications
| Attribute | Value |
|---|---|
| Steel Grade | Galvanized |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Type | Galvanized |
| Application | Rope, suspended platform |
| Diameter | 8.3mm |
| Tensile Strength | 1770Mpa-1960Mpa |
| Certificate | ISO 9001:2008 |
Detailed Product Information
| Size | As requirement |
| Standards | GB, DIN, AISI, ISO, JIS, BS, ASTM |
| Lay | Left hand regular lay or right hand regular lay |
| Material | Carbon steel #60, #70, #72A, #80, #82A |
| Core | Fiber core |
| Nominal tensile strength | 1770N/mm², 1870N/mm², 1960N/mm² |
| Brand | GAOSHENG |
| Min Order | 1000m |
| Delivery Time | 15-30 days according to size & quantity |
Product Description
This 4x31 8.3mm hot dip galvanized steel wire rope, also known as gondola rope, is specifically designed for suspended access equipment, window cleaning scaffolding, and manual hoisting equipment.
Key Features
- Made from high tensile strength steel wire
- Parallel construction for consistent performance
- Small diameter tolerance for precise applications
- Highly flexible for easy handling and installation
- Hot dip galvanized surface for superior corrosion resistance
Technical Specifications
4x25Fi+FC / 4x31SW+FC Construction
| Nominal Diameter | Tensile Strength (N/mm²) | Min. Breaking Load (kN) | Approx. Weight (kg/100m) |
|---|---|---|---|
| 8.3mm | 1770-1960 | 44.2-55.8 | 26.4 |
