*Start arc AMPS,weld AMPS,Arc force adjustment.
*32 bits MCU inside
*Analog operation panel.
*Anti-stick.
*Digital display weld Amps and voltage.

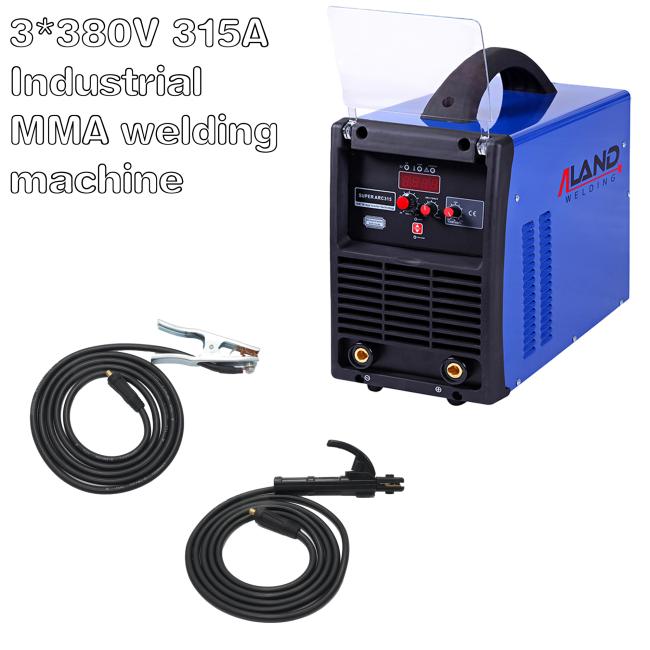

3*380V Manual Metal Arc Welders for Welding Mma Welders DC MMA Welding Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ALAND
Product Description

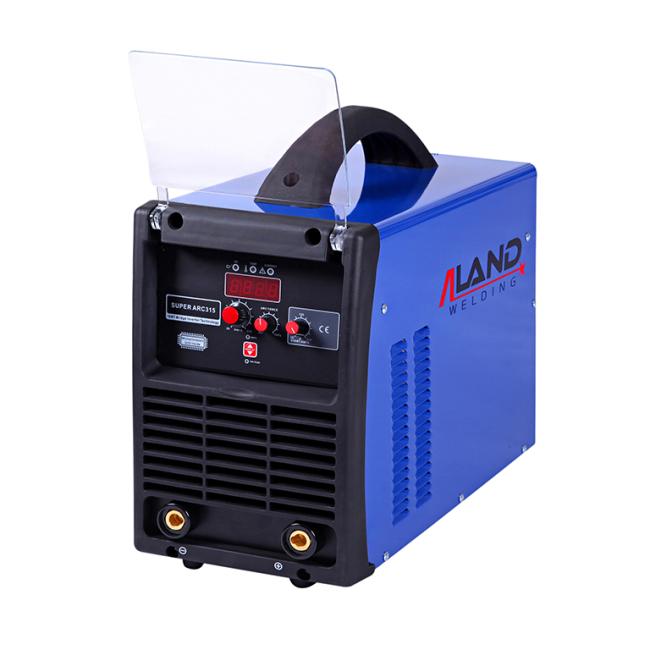

1. Introduction to welding machine
The SUPERARC315 is an IGBT Inverter welding machine that supports DC MMA and Pulse ACDC TIG welding, with adjustable arc start current, welding current, and arc force. Powered by a 32-bit MCU, it offers precise control, foot pedal and manual adjustments, and features an analog operation panel. It includes an anti-stick function and digital display for real-time amperage and voltage.With 3*400V input and a maximum output of 315A, it’s perfect for high-power industrial welding.

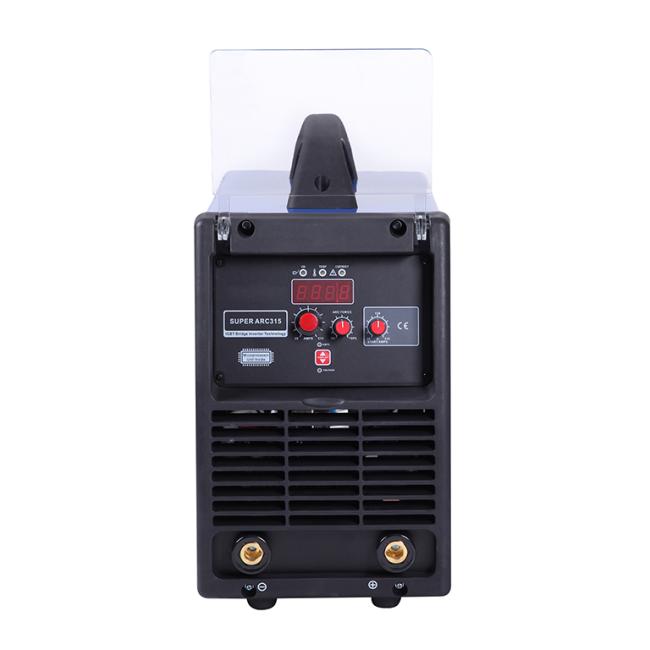

2.Panel display
3.Attribute table
Model | SUPERARC250 | SUPERARC315 | SUPERARC400 |
Power Supply Voltage | 3*380V,50/60Hz | 3*380V,50/60Hz | 3*380V,50/60Hz |
Rate Input Capacity (KVA) | 9 | 16.6 | 23 |
Rate Input Current | 13 | 24 | 33 |
No Load Voltage | 80 | 80 | 80 |
Output current Range | 20-250A | 20-315A | 20-400A |
Duty Cycle | 60% | 60% | 35% |
Weight | 15KG | 22KG | 25KG |
L*W*H(mm) | 560*240*460 | 560*240*460 | 560*240*460 |

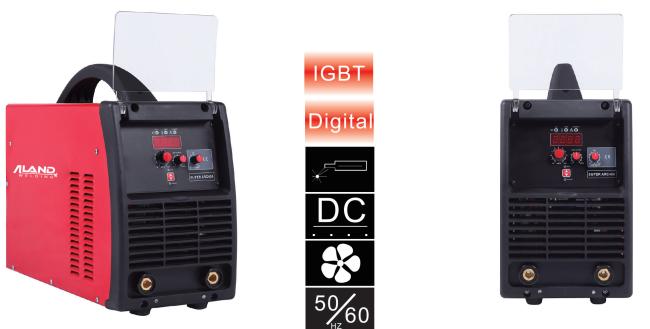

4. Analysis of product buying points
*IGBT inverter DC MMA
5. Product configuration
Serial Number | Name | Specification | Quantity |
1 | Electrode Holder | 3m | 1 |
2 | Earth Clamp | 3m | 1 |
