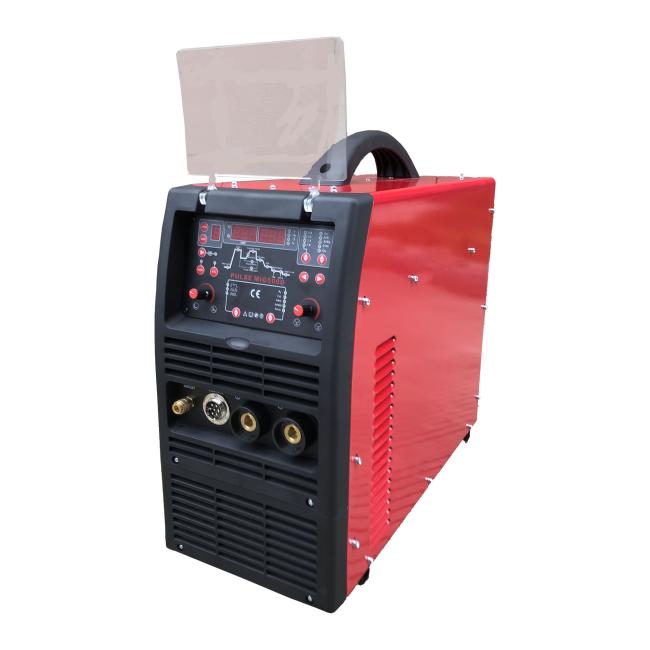

380v Multifunctional Mig Welders MIG Aluminum Double Pulse Pulse TIG DC MMA MIG Welding Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ALANDWELDING
Product Description
Features
DIGITAL PULSEMIG350D, 500D SERIES
1. Digital Control DC MMA,Pulse TIG and Double-Pulse Mig
2. IGBT inverter soft switch
3. Syergice mig /pulse mig
4. Over current and over hot protection
5.Special design trolley
6. 2T/4T function
7. Two knobs adjusting
8. 4Rolers wire feeder
9. Material chosen
10. Co2 ,Mix and Argon gas
Product Paramenters
MODEL | PULSEMIG500D | ||
INPUT | Voltage | 3*AC380~415V 50Hz/60Hz | |
Rated input current | 21A | ||
Rated input power | 15KVA | ||
DC MMA | No-load Voltage | 60V | |
current Adjusting Range | 20~350A | ||
Rated Output Current | 350A | ||
Start Current | 0-200A | ||
Arcforce Current | 0-200A | ||
Rated Duty Cycle | 60% | ||
CO2 | No-load Voltage | 60V | |
Rated Duty Cycle | 60% | ||
Current Adjusting Range | 20~350A | ||
Rated Output Current | 350A | ||
crater-fill voltage | 14-40V | ||
crater-fill current | 10-350A | ||
burnback time | 0.01-0.5S | ||
burnback voltage | 10.0-25.0V | ||
Wire Alloy Material | -- | ||
Synergic MIG Or BASIC MIG | all | ||
crater mode | 2T( no Start Current & no crater curent) or 4T( no Start Current),no S4(special 4 step) | ||
gas type | CO2 or Ar | ||
PULSE MIG | Welding Current | 20-500A | |
Welding Voltage | -5.0~+5.0 | ||
Rated Output Current | 500A | ||
Rated Duty Cycle | 60% | ||
Start(Initial) Current | 10-500A | ||
Start(initial) Voltage | -5.0~+5.0 | ||
crater-fill voltage | -5.0~+5.0 | ||
crater-fill current | 10-500A | ||
burnback time | 0.01-0.5S | ||
burnback voltage | -5.0~+5.0 | ||
Wire Alloy Material | Fe,AISi,AIMg,CrNi,Cu | ||
Synergic MIG or BASIC MIG | only Synergic MlG | ||
crater mode | 2T( no Start Current & no crater curent) or 4T( no Start Current) or S4 (special 4 step) | ||
gas type | 80%Ar+20%C02,(Fe,Cu);100%Ar(AISi,AIMg) ;98%Ar+2%CO,or O2(CrNi) | ||
INPUT | Voltage | 3*AC380~415V 50Hz/60Hz | |
DOUBLE PULSE MIG | PULSE peak Current | 10~500A | |
PULSE peak Voltage | -5.0~+5.0 | ||
Welding(base) Current | 10~500A | ||
Welding(base) Voltage | -5.0~+5.0 | ||
mixed frequency | 0.1-9.9Hz | ||
mixed ratio | 10-90% | ||
Start(initial) Current | 10-500A | ||
Start(Initial) Voltage | -5.0~+5.0 | ||
crater-fill voltage | -5.0~+5.0 | ||
crater-fill current | 10-500A | ||
Rated Duty Cycle | 60% | ||
Rated Output Current | 500A | ||
Wire Alloy Material | Fe,AISi,AIMg,CrNi,Cu | ||
Synergic MIG or BASIC MIG | only Synergic MIG | ||
crater mode | 2T( no Start Current & no crater current)or 4T( no Start Current)or S4(special 4 step) | ||
gas type | 80%Ar+20%CO2(Fe,Cu);100%Ar(AISi;,AIMg);98%Ar+2%CO2 or O2(CrNi) | ||
CO2 or MIG | inductance | 1~10 | |
Pre gas Flow Time | 0~3s | ||
Post gas Flow Time | 0~20s | ||
Wire Diameter | 0.8,1.0,1.2,1.6(solid/flux） | ||
Efficiency | ≥80% | ||
Protection Class of enclosure | IP21S | ||
Insulation class | F | ||
Protection class of shell | fan cooling | ||
Product Advantages Introduction
Portable Design
Portable handheld design makes welding more convenient

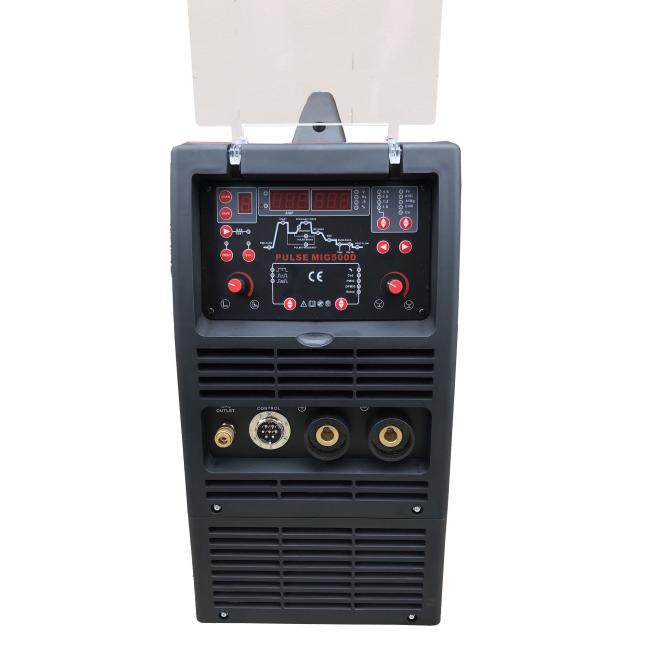

Digital Display
The welding machine panel design is simpler, digital display data, and current and voltage control are more accurate.

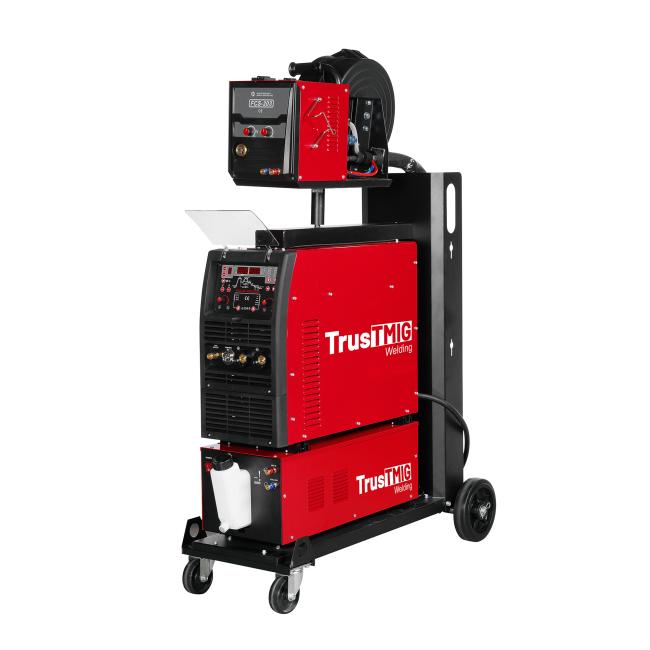

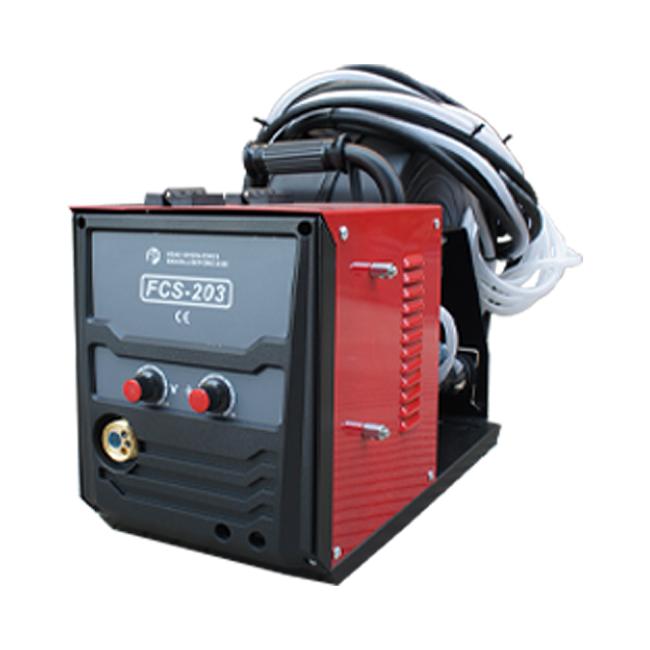

External Wire Feeder
The external wire feeder makes the welding machine more stable when performing high-power welding operations.
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding
solutions.We are proud to provide One Stop Solution for All Your Welding Needs.

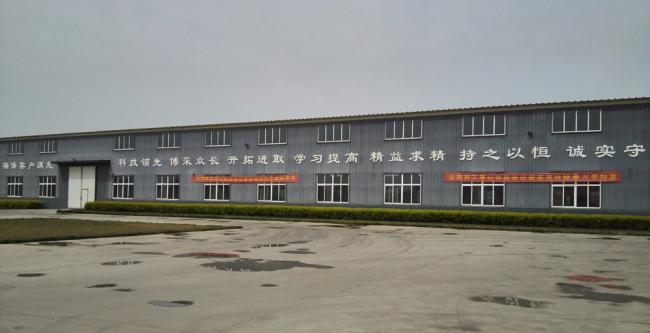

We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment,talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business
success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality
Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
