Plastic Granules Extruder Grain Making Machine Sale
Plastic granules extruder grain making machine sale
The company concentrated on research development and manufacturing “high level, accurate, highly sophisticated series product —Co-rotating parallel “cordwood” twin screw extruder. We have provided customer first-class products with strong torque, high production, energy conservation and environmental protection products.
| Model | Diameter(mm) | L/D | RPM ( r/min) | Power (Kw) | Torque(N.m) | T/N | Capacity (Kg/h) |
| SJSL-20 | 20 | 32-44 | 600 | 5.5 | 30 | 4.8 | 6.5-15 |
| SJSL-36 | 36 | 32-48 | 600 | 15 | 115 | 4.2 | 30-75 |
| SJSL-51A | 51 | 32-52 | 500 | 45 | 405 | 5.1 | 100-200 |
| SJSL-51B | 51 | 32-52 | 600 | 55 | 415 | 5.2 | 150-25 |
| SJSL-63A | 63 | 32-62 | 400 | 55 | 620 | 4.4 | 160-250 |
| 500 | 75 | 675 | 4.8 | 200-300 | |||
|
SJSL-63B |
63 | 32-64 | 600 | 90 | 675 | 4.8 | 225-375 |
| 800 | 110 | 620 | 4.4 | 300-500 | |||
| SJSL-75A | 72 | 32-64 | 400 | 90 | 1015 | 4.7 | 225-350 |
| 500 | 110 | 1005 | 4.6 | 300-550 | |||
| SJSL-75B | 72 | 32-64 | 600 | 132 | 990 | 4.6 | 400-650 |
| 800 | 160 | 900 | 4.2 | 480-800 | |||
| SJSL-92A | 92 | 32-64 | 400 | 250 | 2815 | 5.9 | 650-1050 |
| 500 | 2250 | 4.7 | 750-1250 | ||||
| SJSL-92B | 92 | 32-64 | 600 | 280 | 2365 | 5.0 | 900-1500 |
| 800 | 2250 | 4.7 | 1200-2000 | ||||
| SJSL-135A | 135 | 32-48 | 400 | 315 | 6190 | 4.6 | 1500-2500 |
| SJSL-135B | 135 | 32-48 | 500 | 400 | 6750 | 5.1 | 200-3500 |
Auxiliary
|
Water trough SJSL20:1-2m SJSL-36/51:3m SJSL-63A/75A:4m SJSL-75B/95:5/6m |
|
|
Blowing dryer SJSL-20: 1.5kw SJSL-36/51: 1.5kw SJSL-75A/63A:2.2kw SJSL-75B/95:3kw,4kw
|
|
|

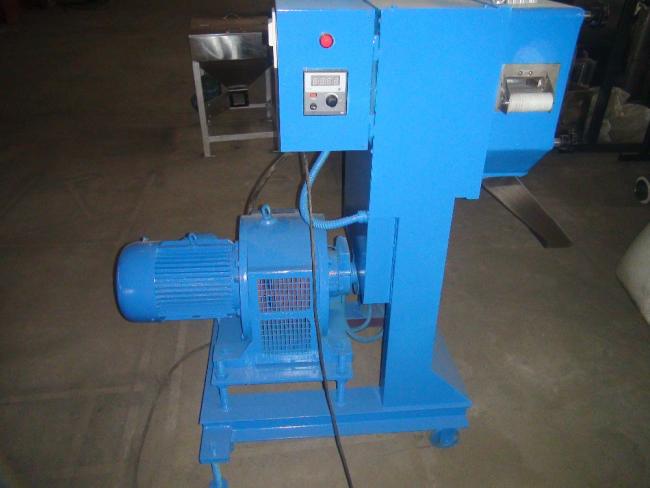

Pelletizer SJSL-20: 50kg/h 0.75kw SJSL-36:100kg/h 2.2kw SJSL-51/63A: 300kg/h 4kw SJSL-63B/75A: 500kg/h 5.5kw SJSL-75B/95:1000kg/h |
|
Application for water-cooling strand
1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,
ABS, AS, POM, PPS, PET, etc.
2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,
PA+SBS, etc.
3. Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.
4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,
optical fiber protection compounds, cable coating material, thermal contraction material,
etc.
5. Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes
filter tip material, acetate fiber material, etc.
6. High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +
additives, etc.
7. Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.
8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,
anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.
9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.
Other product
Water-ring Hot-face pelletizing line
Pelletizing in the water line
Air-cooling hot-face pelletizing line
Air-cooling strand pelletizing line
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. how long is the warranty?
We can offer one-year warranty for the whole machine.
