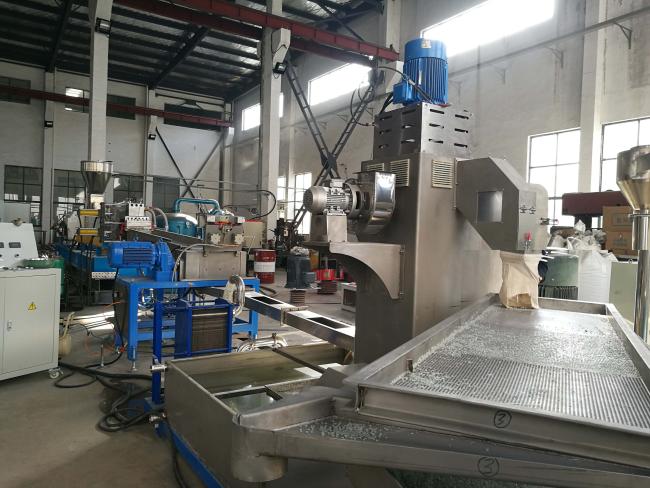

PET Bottle Flakes Pet Granulator Machine Twin Screw Extruder
PET bottle flakes pet granulator machine twin screw extruder
Nanjing Yongjie started to make pet granules making machine since 2005.For PET flake moisture <=1%, IV loss is around 5%
|
Model type |
Series |
Barrel Diameter (mm) |
Screw Diameter (mm) |
Screw L/D |
screw speed n(r/min) |
Main motor power(Kw) |
Screw torque T(N.m) |
Torque rating (T/A3) |
production capacity (kg/h) |
|
SJSL-36 |
A/B/C/D |
36 |
35.6 |
32-48 |
400/600 |
11/15/18.5/22 |
125-225 |
4.6-8.3 |
30-120 |
|
SJSL-51 |
A/B/C/D |
51 |
50.5 |
32-52 |
500/600 |
45/55/75/90 |
405-680 |
5.1-8.5 |
120-400 |
|
SJSL-65 |
A/B/C/D |
63 |
62.4 |
32-64 |
500/600 |
75/90/110/132 |
680-1200 |
4.8-8.5 |
180-750 |
|
SJSL-75 |
A/B/C/D |
72 |
71 |
32-64 |
500/600 |
110/132/160/250 |
995-1890 |
4.6-8.7 |
300-1200 |
|
SJSL-95 |
A/B/C/D |
94 |
93 |
32-64 |
500/600 |
250/315/450/550 |
2260-4510 |
4.7-8.7 |
700-2500 |
|
SJSL-135 |
A/B/C/D |
135 |
133 |
32-48 |
400/500 |
550/750/900/1200 |
6200-10800 |
4.4-7.7 |
1550-6500 |
Application for water-ring hot face production line
1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.
2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material,
cable coating material , thermal contraction pipe material.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic
elastomer, EVA and hot melt additives.
4. Color mater batch: PE, ABS, PS, EVA master batch, etc.
5. ABS, EVA flaming retarding master batch, etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
