China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machine
China Nanjing Plastic Pelletizing Line Filler Master Batch Extruder Machiner
water ring plastic pelletizing machine can be used to the processing and application of
filling and modified of polymer compounding material
Application for water ring plastic pelletizing line:
For: PE, EVA etc. + CaCo3, talc, Tio2, filling modified
and carbon black etc.
For: LDPE , HDPE , LLDPE , MDPE , drivepipe,
insulation material , crosslinking material,
cable coating material ,thermal contraction
pipe material, etc.
For: PPR pipe compounds, PE crosslinking tube
material, TPR, TPU thermoplastic elastomer,
EVA and hot melt adhesive etc.
For: PE, ABS, PS, EVA masterbatch, etc.
For: ABS, EVA Flaming retarding masterbatch, etc.
For: PE, PP, PS filling masterbatch, etc.
Flow digram:

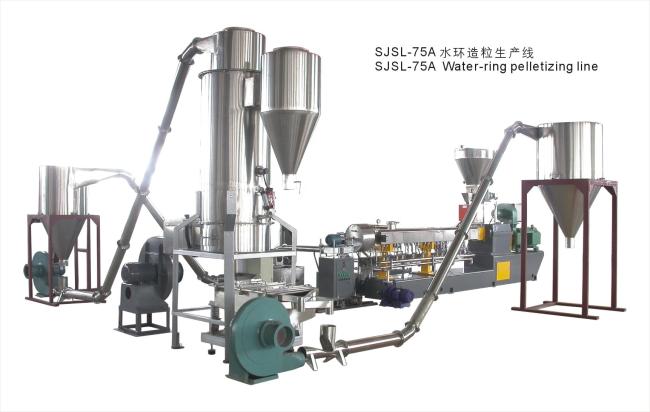

Water ring Plastic pelltetizing line photos:
Extruder material description:
|
PLC electric control |
|
|
Gearbox The gear is made of high quality alloy (20CrNi2Mo).It had been treated by cementation process, the precision grade can reach 6th. |
|
|
Screw 1.The screw elements are made of W6Mo5Cr4V2(6542#)high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.
2. The screw elements are connected to the core axle through involute spline. |
|
|
Screen changer Automatic hydraulic screen changer, double-position, elliptic shape. |
|
Auxiliary machinery for water-ring granulating line:
|
Centrifugal dehydrator: 100kg--3kw; 300kg--4kw; 500kg--5.5kw; 800kg--7.5kw; 1000kg--11kw
|
|
|
Vibrating sieve |
|
|
Storage bin |
|
FAQ
1. Are you a factory or trading company?
Both.
2. Where is your factory located? How can I visit there?
Our factory is located in industrial centralized area of Moling town, Jiangning, Nanjing, China.
(1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport;
(2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.
3. What's your advantages?
(1) Excellent quality control
(2) First-class service
(3) Professional Tech. and R&D team
(4) Quick manufacturing time
(5) Quite competitive price
4. How long is the delivery time?
Under normal conditions, products are delivered within 35 days.
5. How can I know the stauts of my order?
We will send you photos and videos of your order at different satge in time and keep you informed of the latest information.
6. How long is the warranty?
We can offer one-year warranty for the whole machine.
