TC Factory Direct Hot Product Upgrade Large Size Board PVC Film Pur Hot Glue Press Laminating Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TC Machinery Electronic
Product Description
Product Description
Fully automatic pur hot metl flat panel laminating machine
Working Width | 1350mm | |
Working Height | 900+20mm | |
Feed Speed | 8-20m/min | |
Passing Height | 3-45mm | |
Machine length | L17000 or other lengths * W2250* H3400mm | |
Machine Weight: | 8 tons | |
Glue Melter | 200kgs (55 gallon, 2 guns, 2 hoses) | |
Substrate: | ||
Material | WPC/PVC Foam /Chipboards/MDF/HDF/Honeycomb boards/ Aluminum Composite Board,etc | |
Width | 500-1250mm | |
Length | 500-2450mm | |
Thickness | 3-45mm | |
Surface Decorative Materials: | ||
Covering Material | Acrylic,HPL, Aluminum, High Glossy Film, PVC film, PET Film, Paper, etc. | |
Products Words
PUR Hot Melt Adhesive Laminating Machine has the
advantage of no crushing, no bubbly and good quality feature, as well as advanced
technical, high precision, reasonable composition, new structure, easy operation,
it’s a good machine for the high precise sticking also include front and back
conveying, glue spreading structure, feeding, brusher cleaning and hot pressing structure.The laminated finished board are weather resistance, waterproof, anti-uv
and anti-aging, suitable for many decoration usages, such as kitchen cabinets, Bathroom cabinet, wardrobe, other doors and furnitures, walls, and other decoration us.
The machine can clean dust, spread glue, heat, press decorative film and protective
The machine can clean dust, spread glue, heat, press decorative film and protective
film automatically, you just feed the boards till the whole processings are finished, the finished products are without bubbles, without wrinkles, achieve perfect finished
effect, and alsocan reduce a lot of labor cost, improve production effect and assure
effect, and alsocan reduce a lot of labor cost, improve production effect and assure
qualified passing rate.
During the production, you could adjust temperartures, glue volume according to there quirments.
What is more, you can also add another auto systems, such aboard feeding, outfeeding,
film cutting and trimming, a full automatic line, without human interfence.

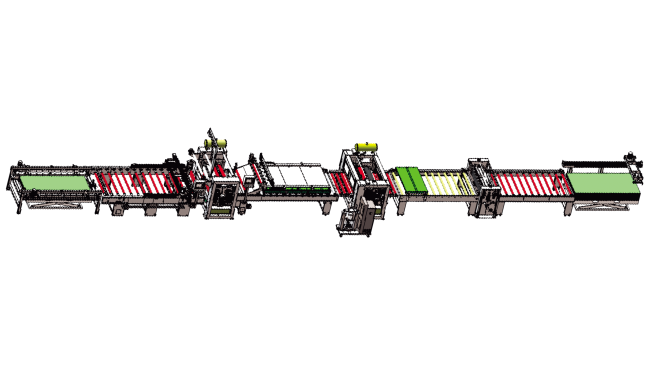

Machine Configurations for Choice:
1. Panel Auto Loading
2. Dust cleaner
*Double side dust cleaner,
*Simple dust cleaners
*Electrostatic liquid dust removal for choice
3. Pre-heating
4. Glue spreader
*3 Roller
*5 Roller+Doctor blade
5. Decorative sheet placing table+Heating oven
6. Film Laminator
7. Auto cutter + Auto trimmer
8. Single Panel Turn Over
9.Panel Auto Unloading
Machine Configurations for Choice:
1. Panel Auto Loading
2. Dust cleaner
*Double side dust cleaner,
*Simple dust cleaners
*Electrostatic liquid dust removal for choice
3. Pre-heating
4. Glue spreader
*3 Roller
*5 Roller+Doctor blade
5. Decorative sheet placing table+Heating oven
6. Film Laminator
7. Auto cutter + Auto trimmer
8. Single Panel Turn Over
9.Panel Auto Unloading
Film Laminator
1. Decotative Film Laminating + Protectie Film Laminating;
2. oil+Electric Heating;
3. Decerative Roll film corrector;
4. Stronger Frame more stable, Powder coating instead of paint for better scratch resistance;
5. PLC Touch Screen:easy to operate the machine and easier and faster to detect to solve if fault;
6. PVC/PET FILM edge auto trimming;
GLUE SREADER
1.5 rollers:∮240x1350mm width;
2.TWO layers of scraper:better gluing effect for doing high glossy film;
3:oil & Electric Heating;
4.Foldable conveyors: easy clean the machine after production every time;
5.PLC Touch Screen: much better and easier to Control the machine, easier and faster detect fault;

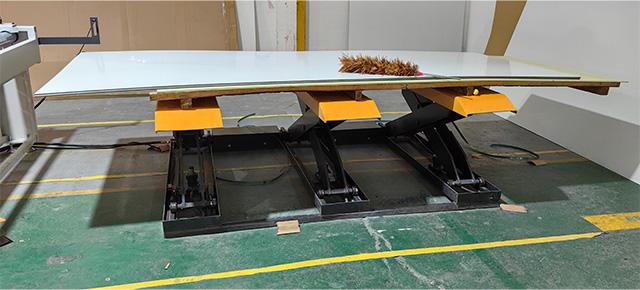

Lifting platform
The platform automatically lifts and lowers, making it easier to carry plates than manual work, saving manpower and labor costs.
DOUBLE SIDE DUST CLEANER
1.5KW AIR FAN*2PCS BETTER CLEANING EFFECT
DELIVERY ROLLERS
STRONGER AND MORE DURABLE
Suitable Materials
Widely used in kitchen cabinet door, bedroom wardrobe door, ,cupboard doorshoes
Covering Film: High glossy film, PVC, Roller Paper, HPL, CPL, Acrylic,
cabinet, TV cabinet, display cabinet,Children bedroom cabinet and study cabinet and bathroom cabinet , sliding doors , inner doors ,indoor decoration.
Panels: Particle Board, MDF, Plywood, High Polymer Plastic Board ,
Foam Boards, etc.
Covering Film: High glossy film, PVC, Roller Paper, HPL, CPL, Acrylic,
Aluminum Sheet, Aluminum Foil,etc.
Glue:PUR hot melt glue( or add cold glue together)
Glue:PUR hot melt glue( or add cold glue together)
Packing & Delivery
1, Foam & shrink film
2, Wooden case should be added more cost
Company Profile
Take innovation as the mission of GUANGDONG TC MACHINERY
MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:
* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.
Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:
* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.
Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect
to work with you together and offer you the best service.
Exhibition
Certifications
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,
We are the factory since 2006. located at No. 28, Kunshan East Road,
Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.
Q5. What about the after sales services?
Services is permanet.
We will offer photos with illustrations, videos, manual or on-line support.
if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
a plant area of around 26,000 square meters.
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.
Q5. What about the after sales services?
Services is permanet.
We will offer photos with illustrations, videos, manual or on-line support.
if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
