Glue:PUR Hot Glue
Covering Film:PVC,Melamine Roll Paper,Leather
Base Profiles:MDF,Particle board,plywood,WPC,PVC,PVC foam board
TC Factory Direct Sales WPC Door Wrapping Machine WPC Door Laminating Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TC Machinery Electronic
Product Description
Product Description

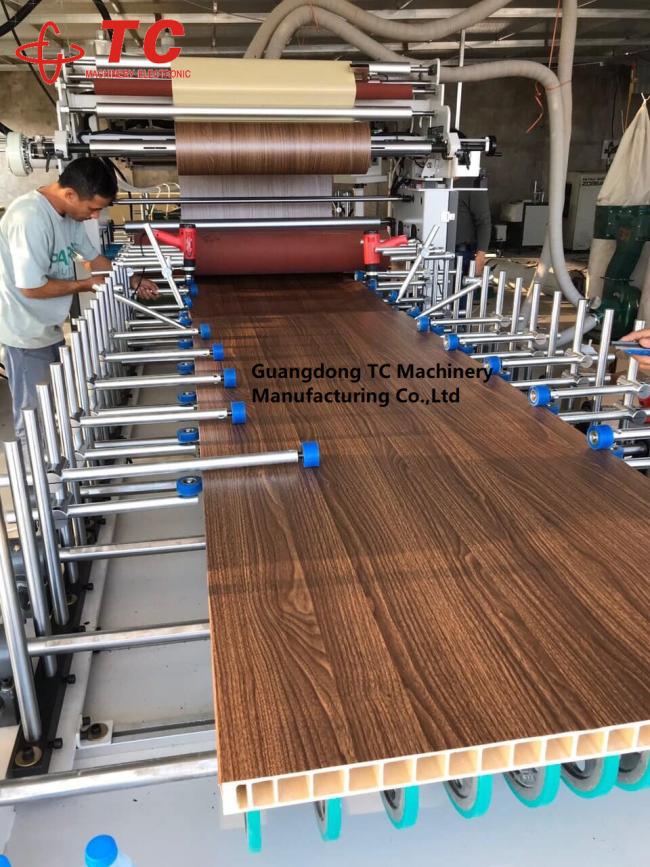

The machine is to press decorative pvc film, melamine paper or other
decorative film on the flat surface of wooden,plastic,wood-plastic,
metal board by two sets of pressing rollers, in additiona, machine
include with small pressure wheels, you couldinstall different shapes
include with small pressure wheels, you couldinstall different shapes
of pressure wheels to press decorative film on two side edges or the
bottom sides of the boards.
For the whole pressings of standard machine, you need to load the boards,
cut off the film and unload the boards manually, themachine will spread
glue and laminate decorative film automatically, which will improve the
production effeciency and also assure stable qualified products.
In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.
For the whole pressings of standard machine, you need to load the boards,
cut off the film and unload the boards manually, themachine will spread
glue and laminate decorative film automatically, which will improve the
production effeciency and also assure stable qualified products.
In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.
Machine Configurations: | ||||||
SL.No. | Name of Each Par | Description | Qty. | |||
1 | Infeed Roller Conveyor | 1350mm width 3m length, with power | 1 | |||
2 | Dust Brusher | to brush the dust | 1 | |||
3 | Dust Air Blower | To wind the dust | 2 | |||
4 | Heating box | IR heating | 2 | |||
5 | Glue Melter Machine | 55 Gallon Glue Melter Machine | 1 | |||
6 | Main Wrapping Machine | 6.3m length 1300 main wrapping machine | 1 | |||
2 sets of pressing roller, | ||||||
roll film unwinding unit | ||||||
Machine two-side width adjustable | ||||||
7 | Roll Film Auto Corrector | Electric correction and release film device | 1 | |||
8 | Protective Film Laminator | To laminate protective film while laminating decorative film | 1 | |||
9 | Roll Film Crane | To lift the heavy roll film automatically | 1 | |||
10 | Unloading Roller Conveyor | 2.9m length,900MMwidth,non-power | 1 | |||
11 | Stair cases | ould go through to stand in the middle to check and clean the glue coating head easily | 1 | |||
1300 Pur Hot Melt Glue Wrapping Machine | ||||
1 | Machine | 11900*2320*2000mm | ||
2 | Machine weight | around 4 tons | ||
3 | Processing length | 600—3000mm | ||
4 | Panel width | 600—1220mm | ||
5 | Max. Covering film wdith | 1300mm | ||
6 | Max. Roll Film Diameter | Φ400mm | ||
7 | Central Roll Film Diameter | Φ76mm | ||
8 | Machine speed | 5-20m/min. | ||
9 | Feeding motor | 2.2kws | ||
10 | Heating Lamp power | 3 kws | ||
11 | Total power | around 45kws（INCL. 200KGS GLUE MELTER MACHINE'S) | ||
12 | Hot melt adhesive | 30-50g/m2 | ||
13 | Rubber bucket diameter | 55 gallons | ||
Products Words
GLUE COATING HEAD
●Teflon Coating, high temperature resistant
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair
LAMINATING EFFECT

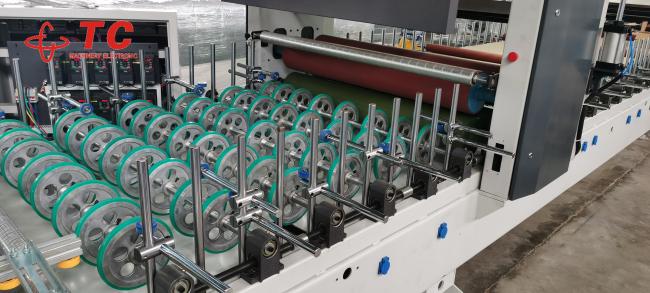

● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel
GLUE COATING HEAD
●Teflon Coating, high temperature resistant
●Gluing knife processing tolerance less than a piece
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece
of a hair
LAMINATING EFFECT
● Install sturdy aluminum alloy wheels and high-quality metal bearings.
● Fast and flexible adjustment design, suitable for
different production ranges.
different production ranges.
Transmission system
● 2 sets of pressing rollers to press on flat surface
● Different designs of pressure wheels to press film on two side edges and bottom edges of the panel
Suitable Materials
PUR universal wrapping machine is suitable for sticking leather,PVC,veneer etc on
decorative strip(wpc strips),aluminum profiles,wood profiles and is mainly for differentangles,ARC,roughness and the edges to get excellent performance.what's
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top
more,PUR glue has the features of anti-aging,anti-UV which makes it to be the top
choice for outdoor.

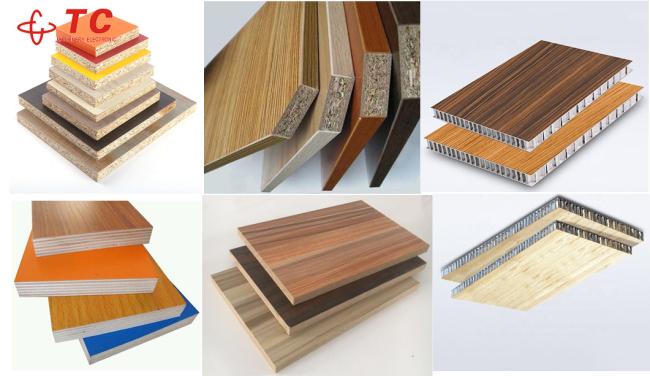

Finished product display
Packing & Delivery
1, Foam & shrink film
2, Wooden case should be added more cost
Company Profile
Take innovation as the mission of GUANGDONG TC MACHINERY
MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:
* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.
Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), found
in 2006, factory cover around 30,000 sqm, located in Jiangmen,
Guangdong, China, with marketing center in Shunde, Foshan, Guangdong.
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
are as following:
* Complex shaped Profile Wrapping Machine Series
* Multipurpose PUR Hot Glue Flat Panel Machine Series
* PVC Paper Wooden Panel Laminating Machine Series
* Metal Sheet Professional Laminating Machine Series
* Complex Shaped Vacuum Membrane Press Machine Series
* Roll Film Cutting Machine Series
* Glue Spreader Machine Series
* Other Machines and Machine accessories/components.
Our products sells to overall China and many different countries. Currently,
factory has over 100 workers, a perfect after-sales service team and with
a designer team of years experience. Also, to offer customers the qualified
and competitive price products,and assure the best shipment time, we not
only assemble machines, but also produce and sell machine components
and accessories. In additional, we can customize machines according to your’ requirement, support do your best products.Welcome your inquiry and expect
to work with you together and offer you the best service.
Exhibition
Certifications
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. located at No. 28, Kunshan East Road,
We are the factory since 2006. located at No. 28, Kunshan East Road,
Hecheng Town, Heshan City, Jiangmen City, Guangdong Province,with
a plant area of around 26,000 square meters.
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.
Q5. What about the after sales services?
Services is permanet.
We will offer photos with illustrations, videos, manual or on-line support.
if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
a plant area of around 26,000 square meters.
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 50% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
Normal 380V voltage is 10-25 days, other voltages are 20-40 days.depend
on the different machines and the factory order situation.
Q5. What about the after sales services?
Services is permanet.
We will offer photos with illustrations, videos, manual or on-line support.
if you want to service in your factory, need to charge USD110/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related
to overseas service need to be paid by buyer.
