TC Woodworking Machinery Fully-automatic Pvca Glue PU Decorative 3D Papers Sticking Cold Glue Laminating Machine
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TC Machinery Electronic
Product Description
Product Description

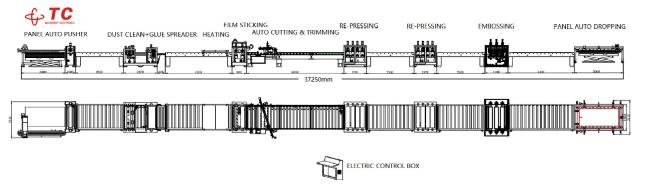

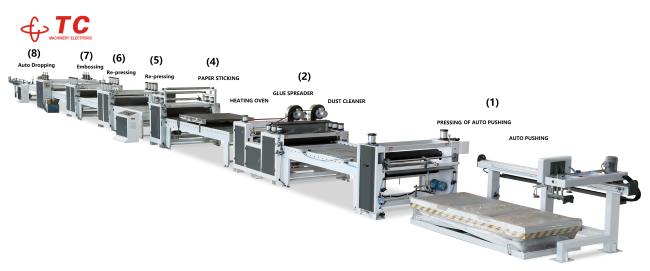

TC-V Fully Automatic Sticking PU decorative /printed papers sticking laminating machines on mdf for melamine panels
1. Auto Pushing panels；
2. Infeed Conveyor；
3. Dust Removing + Glue Spreading；
4. Middle Conveyor +Heating oven；
5. Film Pressing+ Pre-trimming；
6. Auto Cutting；
7. Re-pressing+ Conveyor；
8. Re-pressing+ Conveyor；
9. Embossing+Outfeed conveyor；
10. Auto Dropping；
Main technology parameter | ||
Mode specification | φ190-1350mm | |
Board length | Above 600mm | |
Board width | 1220mm | |
Board thickness | 1.5-30mm | |
Rate of material delivery | 5-25m/min | |
Motivity power | 8kw | |
Heating power | 20kw | |
Machine weight | around 4000kgs | |
Paper width | 1280mm | |
Structure size | 18000*2000*1800mm | |
Principal axis roller diameter | φ190 | |
Roller specification | diameter 190 x L 1350mm | |
Max. covering Film Width | 1280mm | |
Panel thickness: | 3-45mm | |
Panel sizes | 1220 *2440mm | |
machine speed | 1~20m/min. | |
Min. processing panel length | 500mm | |
Products Words
TC-V sticking paper PVC machine is suitable for small-medium enterprises of furniture
and Audio and with the features of no wrinkles,bubbles and high precision,reasonable overlay,novel structure and easy operation,which is top choice of pvc equitments.Device confuguration:front-rear deliverly plate,spreading glue system,unwinding structure,
automatically cutting system,hot press system.
This is our latest designed fully automatic laminating machine, which focus on high
quality standard.
Embossing is to laminate the textured surface.(normal machine can only laminate
smooth surface or need to use textured paper, this machine can use normal paper
to achieve textured surface effect)
The machines of the same series with different configurations and different structures
to meet different customers' requirements.
Heating Oven
The glued plate is heated through the drying tunnel to keep the glue surface from hardening and make the surface material and the substrate fit better.
Film Laminator
The glue is evenly applied on the board, and through the laminating system, the surface material and the base material are more closely adhered.
Suitable Materials
Covering Film: PVC Film, Paper
Glue: white latex glue (cold glue)
Base profiles: mdf, plywood, particle board
Furnitures, doors, wall, and other decoration use
Glue: white latex glue (cold glue)
Base profiles: mdf, plywood, particle board
Furnitures, doors, wall, and other decoration use
Finished product display
Packing & Delivery
1. Packed by Foam & shrink film
2. Extra cost is necessary if packed by wooden case
2. Extra cost is necessary if packed by wooden case
Company Profile
---- Focus on the decoration of furniture surface to be a industry benchmark.
Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Take innovation as the mission of GUANGDONG TC MACHINERY MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,
China, and operated center in Shunde, Foshan, Guangdong.
it is the China first Top “laminating mahcine professor ”decoration
it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise
on 20 years’ research and development to fulfil decorate furniture surface
by laminate machines to be instead of limited solid wood sources in
We specializes in designing and manufacturing surface decorative
all over the world , Meanwhile , most end-user’s underlying quest for
smaller ,smarter and simple Laminating machine production lines . when
most companies are busy marking big ,over-complicated and fancy -looking
machines in order to mark a high price. Yes , we do not follow suit from our
beginning in 2006 .
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative films
on the surface of complex shapes, flat panels.....main products are as following:
*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series
Our products sells to overall China and many different countries. Currently,
*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series
Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team
of years experience.Also, to offer customers the qualified and competitive
price products, and assure the best shipment time, we not only assemble
machines, but also produce and sell machine components and accessories.
In additional, we can customize machines according to your' requirement,
support do your best products.Welcome your inquiry and expect to work with
you together and offer you the best service.
Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
our customer
Exhibition
Why Choose US?
1）Professional Manufacturer of profile wrapping/laminating
machines for 18+ years
2) Factory is around 30,000 square meters
3) More than 20 after sales service engineers
4) Our machines are permanent service
5）Designers experience: 20+ years in the industry field
2) Factory is around 30,000 square meters
3) More than 20 after sales service engineers
4) Our machines are permanent service
5）Designers experience: 20+ years in the industry field
FAQ
Q1. Are you a trading company or a factory?
We are the factory since 2006. Factory at Heshan City, Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.
Q5. What about the after sales services?
Services is permanet.
1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.
if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
We are the factory since 2006. Factory at Heshan City, Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou, 1 hour from Foshan by car
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.
Q5. What about the after sales services?
Services is permanet.
1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.
if you want to service in your factory, need to charge USD
120/day/engineer, in additional, round tickets, hotel, food,
translation and any other fees related to overseas service
need to be paid by buyer.
