Dual Glue Profile Wrapping Machine (PUR/EVA), Quick Change System for 1350mm MDF WPC SPC Laminating, CE Certificated
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TC Machinery Electronic
Product Description
Product Description
decorative film on the flat surface of wooden,plastic,wood-plastic,
metal board by two sets of pressing rollers, in additiona, machine
include with small pressure wheels, you couldinstall different shapes
include with small pressure wheels, you couldinstall different shapes
of pressure wheels to press decorative film on two side edges or the
bottom sides of the boards.
For the whole pressings of standard machine, you need to load the boards, cut off the film and unload the boards manually, themachine will spread glue and laminate decorative film automatically, which will improve the production effeciency and also assure stable qualified products.
In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.
For the whole pressings of standard machine, you need to load the boards, cut off the film and unload the boards manually, themachine will spread glue and laminate decorative film automatically, which will improve the production effeciency and also assure stable qualified products.
In additional, to meet different customers' requrements, we design both
fully automatical and semic automatical machines for this model, you
could choose according to your budgets and production capacity.

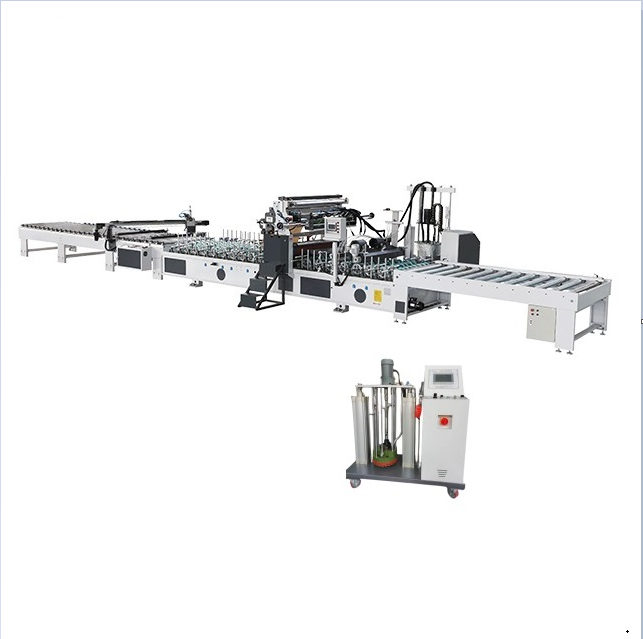

Machine Configurations: | ||||||
SL.No. | Name of Each Par | Description | Qty. | |||
1 | Infeed Roller Conveyor | 1350mm width 3m length, with power | 1 | |||
2 | Dust Brusher | to brush the dust | 1 | |||
3 | Dust Air Blower | To wind the dust | 2 | |||
4 | Heating box | IR heating | 2 | |||
5 | Glue Melter Machine | 55 Gallon Glue Melter Machine | 1 | |||
6 | Main Wrapping Machine | 6.3m length 1300 main wrapping machine | 1 | |||
2 sets of pressing roller, | ||||||
roll film unwinding unit | ||||||
Machine two-side width adjustable | ||||||
7 | Roll Film Auto Corrector | Electric correction and release film device | 1 | |||
8 | Protective Film Laminator | To laminate protective film while laminating decorative film | 1 | |||
9 | Roll Film Crane | To lift the heavy roll film automatically | 1 | |||
10 | Unloading Roller Conveyor | 2.9m length,900MMwidth,non-power | 1 | |||
11 | Stair cases | ould go through to stand in the middle to check and clean the glue coating head easily | 1 | |||
1300 Pur Hot Melt Glue Wrapping Machine | ||||
1 | Machine | 11900*2320*2000mm | ||
2 | Machine weight | around 4 tons | ||
3 | Processing length | 600—3000mm | ||
4 | Panel width | 600—1220mm | ||
5 | Max. Covering film wdith | 1300mm | ||
6 | Max. Roll Film Diameter | Φ400mm | ||
7 | Central Roll Film Diameter | Φ76mm | ||
8 | Machine speed | 5-20m/min. | ||
9 | Feeding motor | 2.2kws | ||
10 | Heating Lamp power | 3 kws | ||
11 | Total power | around 45kws（INCL. 200KGS GLUE MELTER MACHINE'S) | ||
12 | Hot melt adhesive | 30-50g/m2 | ||
13 | Rubber bucket diameter | 55 gallons | ||
Products Words

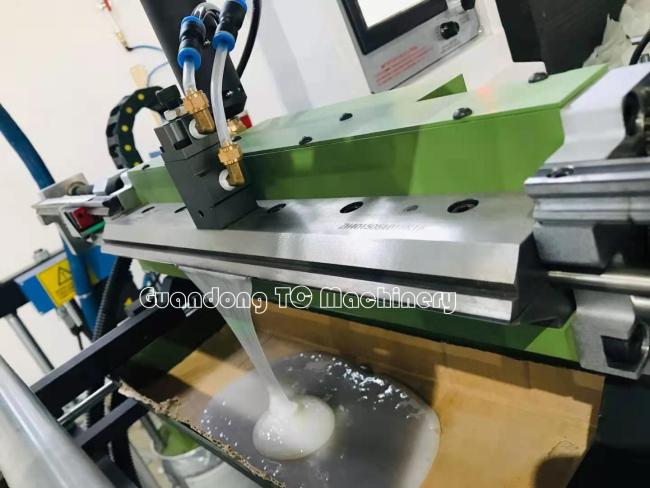

GLUE COATING HEAD
●Teflon Coating, high temperature resistant
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair
●Non-stick surface treatment
●Gluing knife processing tolerance less than a piece of a hair

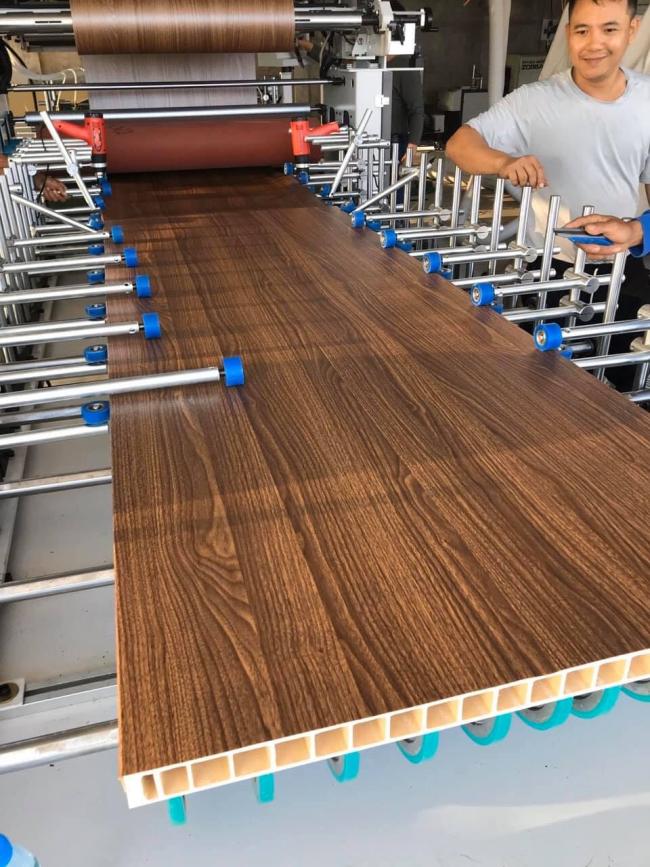

LAMINATING EFFECT
● Install sturdy aluminum alloy
wheels and high-quality metal bearings.
● Fast and flexible adjustment design, suitable for
different production ranges.
● 2 sets of pressing rollers to press on flat surface
● Different designs of pressure wheels to press film on two side edges and bottom edges of the
panel

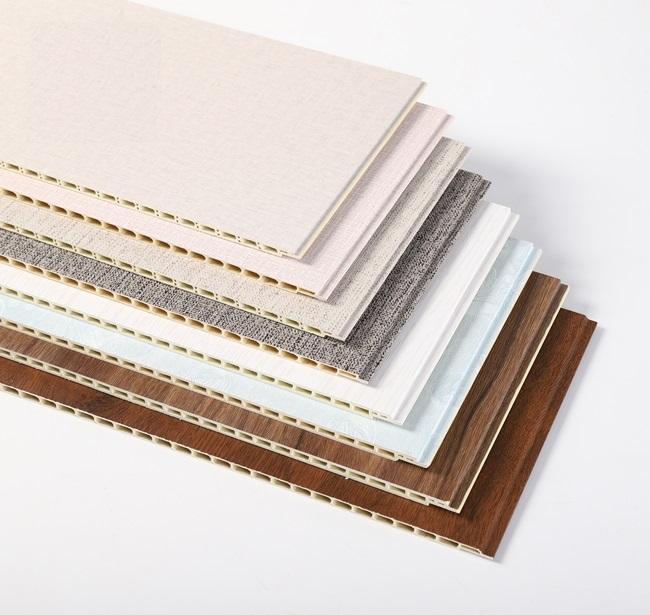

Finished product display
PVC,veneer etc on decorative strip(wpc strips),aluminum profiles,
wood profiles and is mainly for differentangles,ARC,roughness and
the edges to get excellent performance.what's more,PUR glue has
the features of anti-aging,anti-UV which makes it to be the top choice
for outdoor.
Glue:PUR Hot Glue
Covering Film:PVC,Melamine Roll Paper,Leather
Base Profiles:MDF,Particle board,plywood,WPC,PVC,PVC
Covering Film:PVC,Melamine Roll Paper,Leather
Base Profiles:MDF,Particle board,plywood,WPC,PVC,PVC
foam board

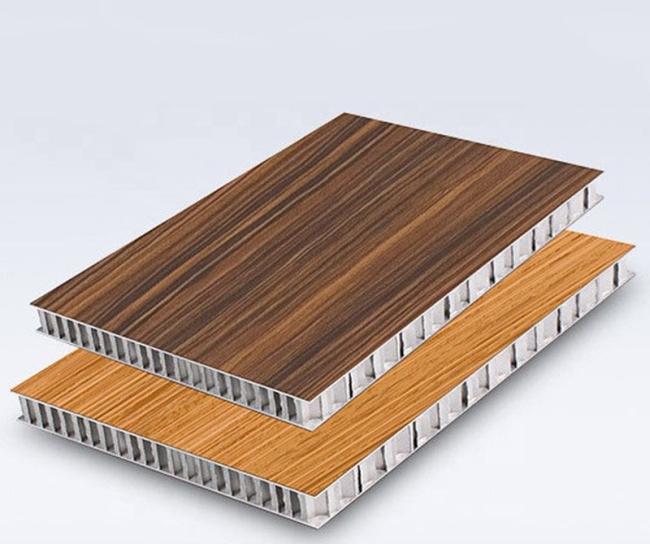

Finished product display
Packing & Delivery
1. Packed by Foam & shrink film
2. Extra cost is necessary if packed by wooden case
2. Extra cost is necessary if packed by wooden case
Company Profile
---- Focus on the decoration of furniture surface to be a industry benchmark.
Take innovation as the mission of GUANGDONG TC MACHINERY
Take innovation as the mission of GUANGDONG TC MACHINERY
MANUFACTURING CO.LTD (Original name Foshan TC Woodworking
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
Machinery Co.,Ltd and Foshan Tongchi Electric Motor Co.,Ltd), was
founded in 2006, owns a modernized production base of round 30,000
sqm,has set up many branch marketing companies throughout the country
gradually, with staff 126 employees ,located at Jiangmen city,Guangdong,
China, and operated center in Shunde, Foshan, Guangdong.
it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise on
20 years’ research and development to fulfil decorate furniture surface by
laminate machines to be instead of limited solid wood sources in all over
the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are
busy marking big ,over-complicated and fancy -looking machines in order to
mark a high price. Yes , we do not follow suit from our beginning in 2006 .
We specializes in designing and manufacturing surface decorative
China, and operated center in Shunde, Foshan, Guangdong.
it is the China first Top “laminating mahcine professor ”decoration
production line of professional manufacturers.Realized the demand and
harmonious between humans and environment by forest , our owner ,also
the general engineer ,on the other hand has been investing his expertise on
20 years’ research and development to fulfil decorate furniture surface by
laminate machines to be instead of limited solid wood sources in all over
the world , Meanwhile , most end-user’s underlying quest for smaller ,smarter
and simple Laminating machine production lines . when most companies are
busy marking big ,over-complicated and fancy -looking machines in order to
mark a high price. Yes , we do not follow suit from our beginning in 2006 .
We specializes in designing and manufacturing surface decorative
wrapping/laminating machines: spread glue, laminate decorative
films on the surface of complex shapes, flat panels.....main products
films on the surface of complex shapes, flat panels.....main products
are as following:
*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series
Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team of
years experience. Also, to offer customers the qualified and competitive price
products, and assure the best shipment time, we not only assemble machines,
but also produce and sell machine components and accessories. In additional,
we can customize machines according to your' requirement, support do your best products.Welcome your inquiry and expect to work
with you together and offer you
the best service.
Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
*Pur hot glue and cold glue Profile Wrapping Machine Series
*Flat Panel pur hot glue and cold glue Laminating Machine Series
*Vacuum Membrane Press Machine Series
*Professional metal sheets laminating machine Series
*Roll Film Cutting Machine Series
*Glue Spreader Machine Series
*Glue Melter Machine Series
Our products sells to overall China and many different countries. Currently,
factory has over a perfect after-sales service team and with a designer team of
years experience. Also, to offer customers the qualified and competitive price
products, and assure the best shipment time, we not only assemble machines,
but also produce and sell machine components and accessories. In additional,
we can customize machines according to your' requirement, support do your best products.Welcome your inquiry and expect to work
with you together and offer you
the best service.
Through many years’ arduous effort and development plan, the comprehensive
strength of “TC”has been increasing stably, realizing the strategic goal of sustainable
and sound development. The popularity and reputation degree of its brand increase.
our customer
Why Choose US?
2) Factory is around 30,000 square meters
3) More than 20 after sales service engineers
4) Our machines are permanent service
5）Designers experience: 20+ years in the industry field
FAQ
We are the factory since 2006. Factory at Heshan City,
Jiangmen City, Guangdong Province, around 1~2 hours
from Guangzhou,
1 hour from Foshan by car
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
10-40 working days, depends on what configurations you
choose. we have semic automatic and fully automatic.
Q5. What about the after sales services?
Services is permanet.
1.We will offer photos with illustrations, videos, manual or
1 hour from Foshan by car
Q2. What machines can you provide?
Profile Wrapping Machines
PVC Paper Wooden Panel Laminating Machine
Multipurpose Pur hot Glue Flat Panel Laminating Machine
Roll Film Cutting Machines
Vacuum Membrane Press Machines
Glue Spreader Machines
Machine Accessories and so on.
Q3. What is the payment term?
T/T 40% prepaid and balance before shipment,or L/C
Q4. What is the delivery time?
choose. we have semic automatic and fully automatic.
Q5. What about the after sales services?
Services is permanet.
1.We will offer photos with illustrations, videos, manual or
on-line support.
2.Service in overseas customer's factory.
if you want to service in your factory, need to charge USD120/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related to overseas service need to be paid by buyer.
2.Service in overseas customer's factory.
if you want to service in your factory, need to charge USD120/day/engineer,
in additional, round tickets, hotel, food, translation and any other fees related to overseas service need to be paid by buyer.
