NYB-12 China Supplier Vertical Leaf Sunflower Oil Filter for Bleaching Oil Filter

Price Negotiable

Price: $4,100-4,300 / set

MOQ: 1 set

Delivery Time: 60 working days

Brand: juneng

Product Description

NYB-12 Vertical Leaf Sunflower Oil Filter for Bleaching

High-efficiency vertical leaf filter designed for bleaching and purification processes in oil processing applications.

Product Application

NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filter equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.

The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials, and they are installed on the central liquid collection pipe, so it can be dismantled for cleaning very conveniently.

Technical Specifications

Model	Filtration area (㎡)	Filter cake volume (L)	Treatment Capacity - Oil	Treatment Capacity - Resin	Treatment Capacity - Beverage	Work Pressure (Mpa)	Max Pressure (Mpa)	Work temperature (℃)	Machine volume (L)
NYB-2	2	30	0.4-0.6	1-1.5	0.1-0.4	0.1-0.4	0.5	≤150	120
NYB-4	4	60	0.5-1.2	2-3	2-5				250
NYB-7	7	105	1-1.8	3-6	4-7				420
NYB-10	10	150	1.6-3	5-8	6-9				800
NYB-12	12	240	2-4	6-9	8-11				1000
NYB-15	15	300	3-5	7-12	10-13				1300
NYB-20	20	400	4-6	9-15	12-17				1680
NYB-25	25	500	5-7	12-19	16-21				1900
NYB-30	30	600	6-8	14-23	19-25				2300
NYB-36	36	720	7-9	16-27	23-31				2650
NYB-40	40	800	8-11	21-34	30-38				2900
NYB-45	45	900	9-13	24-34	36-44				3200
NYB-52	52	1040	10-15	27-45	42-51				3800
NYB-60	60	1200	11-17	30-52	48-60				4500
NYB-70	70	1400	12-19	36-60	56-68				5800
NYB-80	80	1600	13-21	40-68	64-78				7200

Main Features

No cloth or filter paper required, significantly reducing filtration costs
Fully closed operation is environmentally friendly without material loss
Vibration residue falling reduces labor intensity and enables continuous operation
Residue discharging through pneumatic valve reduces worker labor intensity
Effective for activated carbon filtering or bleaching filtering, completely replacing plate and frame filters

Filter Leaf Specifications (NYB-12 Example)

11 filter leaves provide 12 sqm filtration area

Leaves surrounded by heavy box channel made from 1.8mm 316L material

Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)

Leaf bottom with outlet nozzle featuring "O" ring seal (SS 316 nozzle with Viton rubber "O" ring)

Butterfly Valve (NYB-12 Example)

DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom

High-quality butterfly valve with NH-S seat material (suitable for up to 150°C high temperature)

Valve complete with pneumatic actuator double acting type with 5.5 Bar air supply

Certifications

Our Services

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory viewing opportunities

After-Sales Service

Machine installation and operation training
Overseas engineer service availability

Our professional after-sales service team provides free equipment instruction and installation. We assist with debugging and train operational staff until they master the techniques. For any problems during equipment use, we provide immediate response and dispatch engineers to resolve issues on-site.

Packaging & Delivery

Size	123 (L) * 456 (W) * 789 (D)
Weight	1.2 T

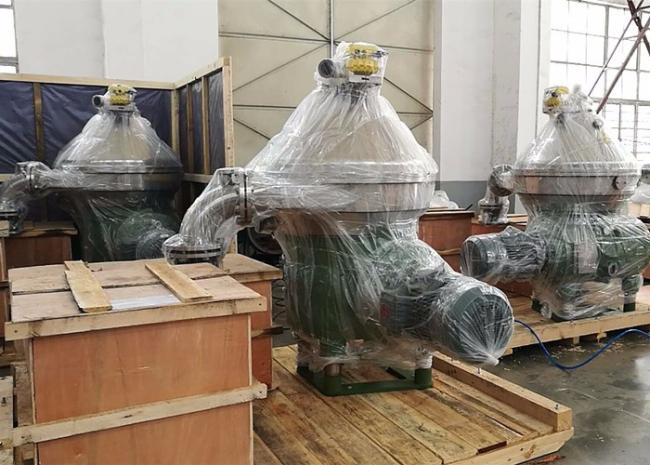

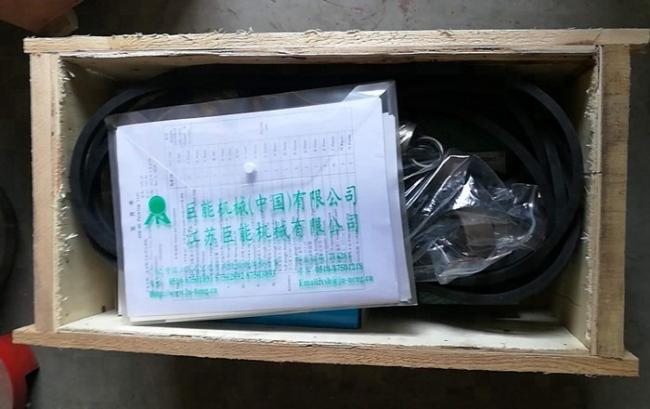

Standard packaging includes wooden boxes. For European exports, wooden boxes are fumigated. Alternative packaging options available based on container space and customer requirements.

Exhibitions

We regularly participate in international exhibitions including Canton Fair and other industry events.

About Juneng Group

Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we maintain strict quality control and provide comprehensive customer service.

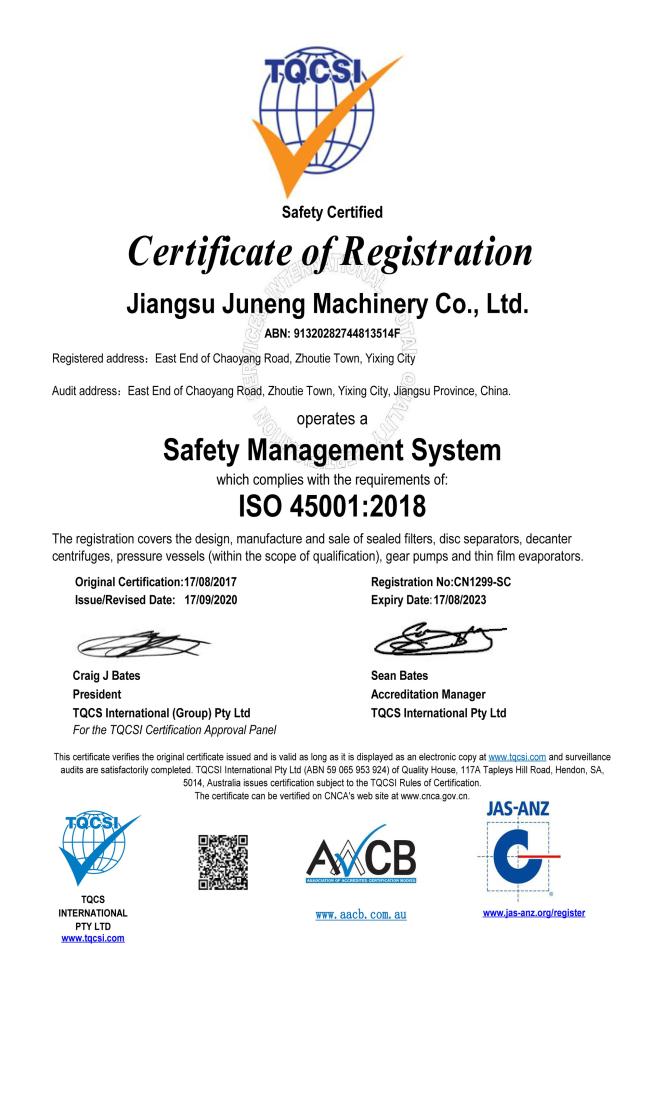

We hold CE certificates, ASME U certificate and ISO 9001 certification. Our products are sold throughout China and exported to countries including USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, and Vietnam.

We welcome OEM and ODM orders and provide engineering assistance for custom applications.

Jiangsu Juneng Machinery North Branch

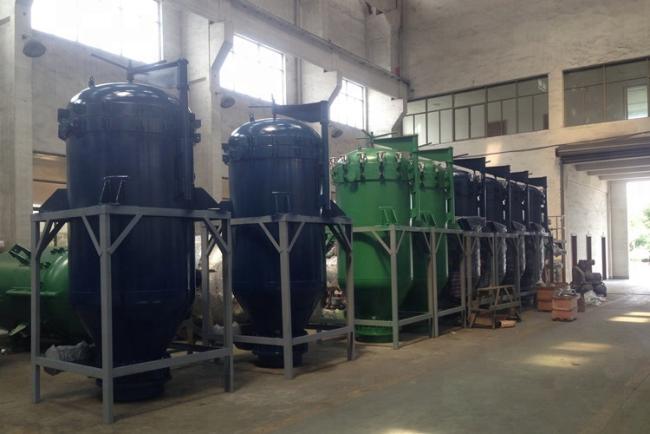

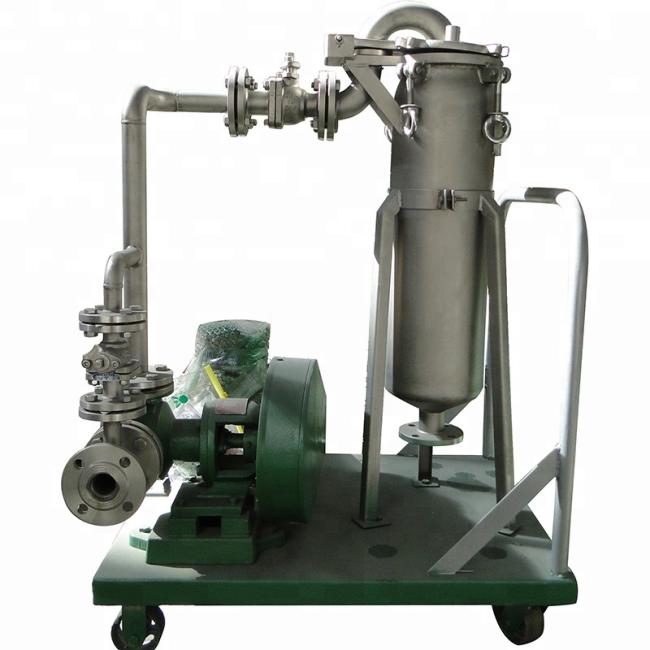

Located in Zhoutie Town, Yixing City, our north branch specializes in various filters including vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters.
