Soybean Oil Extraction Industrial Decanter Centrifuge Solid Liquid Separation
Price:
$30,000-40,000 / set
MOQ:
1 set
Delivery Time:
60 working days
Brand:
Juneng
Product Description
Soybean Oil Extraction Solid and Liquid Separator Centrifuge Machines
Decanter centrifuges are mechanical equipment that utilize centrifugal force and sedimentation principles to continuously separate suspended liquids with density differences.
Product Application
Our centrifuges can clarify, dehydrate, and classify suspensions with 0.002-3 mm solid-phase particles and thickness range of 0.5-40%. Available in LW-counter-current and parallel-current designs, with two-phase (LW) and three-phase (LWS) separators for different process conditions. Widely used in pharmaceutical, food, chemical, light industry, and environmental protection industries.
| Model | Drum Diameter (mm) | Inlet Liquid Capacity (㎥/h) | Power of Main/Auxiliary Motor (Kw) | Weight (Kg) | Dimension (max) mm |
|---|---|---|---|---|---|
| LW250 | 250 | 1-4 | 11/4 | 1200 | 2650*720*900 |
| LW(F)250 | 250 | 1-4 | 11/4 | 1200 | 2650*720*900 |
| LW250(W) | 250 | 1~5 | 11/4 | 1300 | 2750*720*900 |
| LW350 | 350 | 5~15 | 22/5.5 | 2000 | 3585*980*1238 |
| LW(F)350 | 350 | 5~15 | 22/5.5 | 2000 | 3585*980*1238 |
| LW350(W) | 350 | 5~18 | 15/5.5 | 2200 | 3412*1090*950 |
| LW(S)350 | 350 | 2~10 | 22/5.5 | 2000 | 3676*980*1238 |
| LW450 | 450 | 5~20 | 30/11 | 3000 | 4380*1080*1360 |
| LW(F)450 | 450 | 5~20 | 30/11 | 3000 | 4380*1080*1360 |
| LW450(W) | 450 | 5~28 | 30/11 | 3200 | 4380*1080*1360 |
| LW(S)450 | 450 | 5~15 | 37/11 | 3200 | 4195*1080*1360 |
| LW520 | 520 | 10~26 | 45/15 | 5000 | 4840*1160*1465 |
| LW(F)520 | 520 | 10~26 | 45/15 | 5000 | 4840*1160*1465 |
| LW520(W) | 520 | 10~35 | 16742 | 5000 | 4840*1160*1465 |
| LW550W | 550 | 10-45 | 20394 | 6500 | 5038*1388*1578 |
| LW650A | 650 | 7-9T | 110 | 8000 | 4407*2280*1340 |
| LW650(W) | 650 | 25-60 | 75/22 | 8000 | 5500*2280*1340 |
| LW720A | 720 | 8-10T | 132/160 | 11000 | 4410*3280*1450 |
| LW720(W) | 720 | 35-85 | 110/30 | 13000 | 5600*3280*1450 |
* F: Ex-proof, W: Waste water, S: Three phase, FS: Ex-proof and three phase
Main Features
- All product-contact parts made of stainless steel
- 3-phase AC motor with controlled torque starting via frequency converter
- Approximately 80-90% oil recovery rate
- Low personnel costs due to continuous automatic operation
- Highest g-force for superior solids output
- Adjustable bowl speed via VFD
- Automatic differential speed adjustment via VFD
- Two motor drive system
- Belts for both primary and secondary motors
Advantages
- Lower cake transportation costs due to very dry solids
- Better nutrient recovery with high separation efficiency
- Reduced fresh water consumption compared to other processes
- Continuous and fully automatic operation
- 24-hour operating reliability
- Optimum wear protection
- Energy saving design
- Easy to operate and maintain
- Simple assembly and dismantling
Applications
- Washing and dehydration of starch
- Dehydration of soybean and wheat proteins
- Dehydration of fish meal and fish products
- Dehydration of brewers' grains
- Purification of juice and dehydration of fruit fiber
- Separation and purification of animal and vegetable oils
- Separation and purification of coal tar
- Clarification and purification of gypsum
- Classification and dehydration of starch
- Classification and dehydration of Kaolin and graphite
- Classification and dehydration of dyes and pigments
- Classification and dehydration of mineral thick liquids
Our Company
| Product Name | Manufacturing Location |
|---|---|
| Separator | Jiangsu Juneng Machinery Co.,Ltd (South) |
| Centrifuge | Juneng Machinery (China) Co.,Ltd (Nanjing) |
| Filter | Jiangsu Juneng Machinery Co.,Ltd (North) |
| Dryer | Juneng Machinery (China) Co.,Ltd (Nanjing) |
| Pump | Jiangsu Juneng Machinery Co.,Ltd (South) |
Certifications
Our Service
Pre-Sales Service
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Service
- Machine installation and operation training
- Overseas engineering service support
- Maintenance and repair services
Packing & Delivery
| Packaging | Specifications |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging includes wooden boxes (Size: L*W*H). For European exports, wooden boxes are fumigated. Alternative packaging options available for tight containers or special customer requirements.
Related Products
Small capacity disc separator
Self-cleaning candle filter
Decanter centrifuge
Oil bleaching filter system
Disc separator whole system
Horizontal plate filter

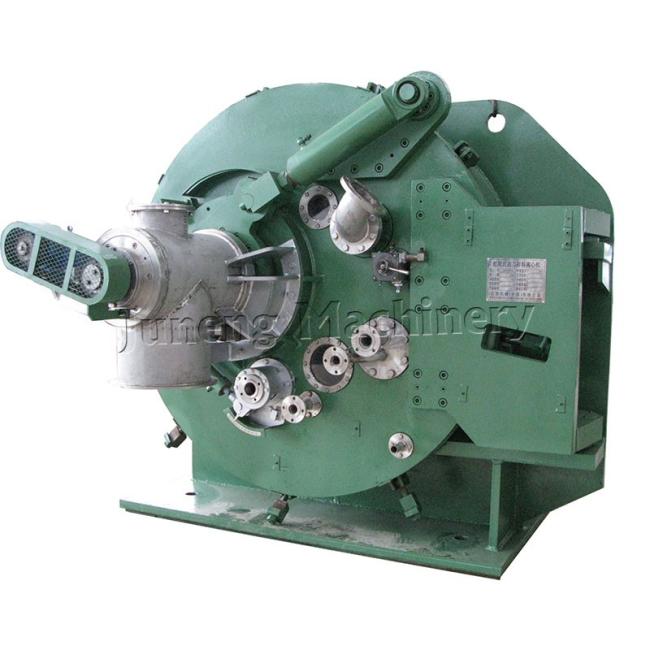

Scraper centrifuge
