New Station Oil Bleaching Vertical Leaf Pressure Filter Press
Price:
$12,500-13,500 / set
MOQ:
1 set
Delivery Time:
60 working days
Brand:
Juneng
Product Description
NYB Vertical Leaf Pressure Filter Press
High-efficiency plate hermetic filter for industrial filtration applications
Product Overview
The NYB high efficiency plate hermetic filter is a high-performance, energy-saving, and hermetically operated fine filtration equipment. Engineered for optimal performance in demanding industrial applications.
Applications
Widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and various other industrial sectors requiring precise filtration.
Construction & Design
Composed of shell, filtration plate, cover, and automatic dump device. Filtration plates feature multiple layers of stainless steel filtration materials installed on central liquid collection pipes for easy disassembly and cleaning.
Technical Specifications
| Model | Filtration Area (㎡) | Filter Cake Volume (L) | Treatment Capacity - Oil | Treatment Capacity - Resin | Treatment Capacity - Beverage | Work Pressure (Mpa) | Max Pressure (Mpa) | Work Temperature (℃) | Machine Volume (L) |
|---|---|---|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.1-0.4 | 0.5 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 250 | |||
| NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 420 | |||
| NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 800 | |||
| NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 1000 | |||
| NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | 1300 | |||
| NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 1680 | |||
| NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 1900 | |||
| NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 2300 | |||
| NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 2650 | |||
| NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 2900 | |||
| NYB-45 | 45 | 900 | 9-13 | 24-34 | 36-44 | 3200 | |||
| NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 3800 | |||
| NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | 4500 | |||
| NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 5800 | |||
| NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 7200 |
Product Images
Key Features
- No cloth or filter paper required - significantly reduces filtration costs
- Fully closed operation - environmentally friendly with no material loss
- Vibration residue falling - reduces labor intensity and enables continuous operation
- Pneumatic valve residue discharge - minimizes worker labor requirements
- Activated carbon or bleaching filtration capability - replaces traditional plate and frame filters
Filter Leaf Specifications (NYB-12 Example)
11 filter leaves provide 12 sqm filtration area. Constructed with heavy box channel 1.8mm 316L material, reinforcement topside with vibrator fork per leaf (SS 316), and bottom outlet nozzle with O-ring seal (SS 316 nozzle with Viton rubber O-ring).
Butterfly Valve System (NYB-12 Example)
DN 400 butterfly valve (wafer type) for dry cake discharge at filter bottom. Features high-quality construction with NH-S seat material (up to 150°C) and pneumatic actuator (double acting type with 5.5 Bar air supply).
Service & Support

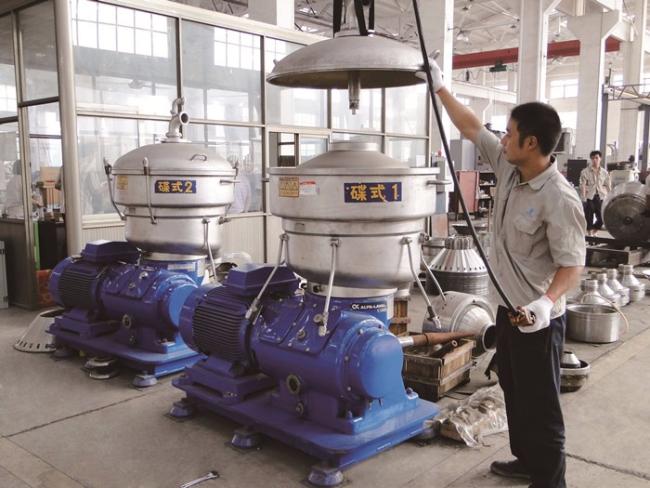

Pre-Sales Services
- Inquiry and consulting support
- Sample testing assistance
- Factory viewing opportunities
After-Sales Services
- Machine installation and operation training
- Overseas engineering service support
Professional after-sales service team provides free equipment instruction and installation. Comprehensive training until operational mastery achieved. Immediate problem resolution with 2-hour response commitment and on-site engineer dispatch until customer satisfaction.
Packaging & Delivery
| Packaging | Specifications |
|---|---|
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Standard packaging: wooden box (Size: L*W*H). European exports include fumigated wooden boxes. Alternative packaging options available for container constraints or special customer requirements.
Exhibition Participation
Active participation in industry exhibitions including Canton Fair and other major trade events.
Company Overview - Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, specializes in research, development, production, sale and service of filtration and separation equipment including filters, separators, decanter centrifuges and pumps. Operating four factories in Nanjing and Yixing City with strategic transportation access.
Committed to strict quality control and comprehensive customer service with experienced staff available for technical discussions. Equipment portfolio includes advanced filtration, separation, and centrifugation systems. Certified with CE, ASME U, and ISO 9001 standards.
Products distributed throughout China and exported internationally to USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and other regions. Accepting OEM and ODM orders with full engineering support.
Jiangsu Juneng Machinery North Branch
Located in Zhoutie Town, Yixing City, specializing in comprehensive filter solutions including vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters.
Quality Assurance
- Factory audit required prior to purchase
- Material inspection during manufacturing and pre-shipment
- Compliance with technical requirements
Development Philosophy
- Continuous innovation and self-strengthening
- 5% of sales revenue allocated to research
- 8% of workforce dedicated to development
- Extensive patent portfolio and quality new products
