Sunflower Oil Filtration Bleaching Earth Leaf Filter Machine
Price:
$4,100-4,300 / set
MOQ:
1 set
Delivery Time:
60 working days
Brand:
juneng
Product Description
Sunflower Oil Filtration Bleaching Earth Leaf Filter Machine
Product Overview
NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filtration equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of many layers of stainless steel filtration materials and installed on the central liquid collection pipe for convenient dismantling and cleaning.
Technical Specifications
| Model | Filtration area (㎡) | Filter cake volume (L) | Treatment Capacity - Oil | Treatment Capacity - Resin | Treatment Capacity - Beverage | Work Pressure (Mpa) | Work temperature (℃) | Machine volume (L) |
|---|---|---|---|---|---|---|---|---|
| NYB-2 | 2 | 30 | 0.4-0.6 | 1-1.5 | 0.1-0.4 | 0.1-0.4 | ≤150 | 120 |
| NYB-4 | 4 | 60 | 0.5-1.2 | 2-3 | 2-5 | 0.5 | ≤150 | 250 |
| NYB-7 | 7 | 105 | 1-1.8 | 3-6 | 4-7 | 0.5 | ≤150 | 420 |
| NYB-10 | 10 | 150 | 1.6-3 | 5-8 | 6-9 | 0.5 | ≤150 | 800 |
| NYB-12 | 12 | 240 | 2-4 | 6-9 | 8-11 | 0.5 | ≤150 | 1000 |
| NYB-15 | 15 | 300 | 3-5 | 7-12 | 10-13 | 0.5 | ≤150 | 1300 |
| NYB-20 | 20 | 400 | 4-6 | 9-15 | 12-17 | 0.5 | ≤150 | 1680 |
| NYB-25 | 25 | 500 | 5-7 | 12-19 | 16-21 | 0.5 | ≤150 | 1900 |
| NYB-30 | 30 | 600 | 6-8 | 14-23 | 19-25 | 0.5 | ≤150 | 2300 |
| NYB-36 | 36 | 720 | 7-9 | 16-27 | 23-31 | 0.5 | ≤150 | 2650 |
| NYB-40 | 40 | 800 | 8-11 | 21-34 | 30-38 | 0.5 | ≤150 | 2900 |
| NYB-45 | 45 | 900 | 9-13 | 24-34 | 36-44 | 0.5 | ≤150 | 3200 |
| NYB-52 | 52 | 1040 | 10-15 | 27-45 | 42-51 | 0.5 | ≤150 | 3800 |
| NYB-60 | 60 | 1200 | 11-17 | 30-52 | 48-60 | 0.5 | ≤150 | 4500 |
| NYB-70 | 70 | 1400 | 12-19 | 36-60 | 56-68 | 0.5 | ≤150 | 5800 |
| NYB-80 | 80 | 1600 | 13-21 | 40-68 | 64-78 | 0.5 | ≤150 | 7200 |
Product Images
Main Features
- No cloth or filter paper required, significantly reducing filtration costs
- Fully closed operation for environmental protection and zero material loss
- Vibration residue falling reduces labor intensity and enables continuous operation
- Residue discharging through pneumatic valve minimizes worker labor intensity
- Effective for activated carbon (carclazyte) filtering or bleaching filtering, replacing plate and frame filters
Filter Leaf Specifications (NYB-12 Example)
To obtain 12 sqm filtration area, the filter is executed with 11 filter leaves.
- Leaves surrounded by heavy box channel 1.8 mm material 316L
- Topside of leaf with reinforcement and one vibrator fork per leaf
- Vibrator fork material: SS 316
- Leaf bottom with outlet nozzle with "O" ring seal
- Material nozzle: SS 316 with Viton rubber "O" ring
Butterfly Valve System (NYB-12 Example)
- DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom
- High-quality butterfly valve construction
- Seat material: NH-S (up to 150°C high temperature)
- Valve complete with pneumatic actuator double acting type with air supply 5.5 Bar
Quality Certifications
Customer Support Services
Pre-Sales Services
- Inquiry and consulting support
- Sample testing support
- Factory viewing opportunities
After-Sales Services
- Machine installation and operation training
- Overseas engineering service support
Our company maintains professional after-sales service teams providing free installation guidance and equipment debugging. We train operational workers until they master the techniques. For any problems during equipment use, we provide immediate response and on-site engineer support until complete satisfaction.

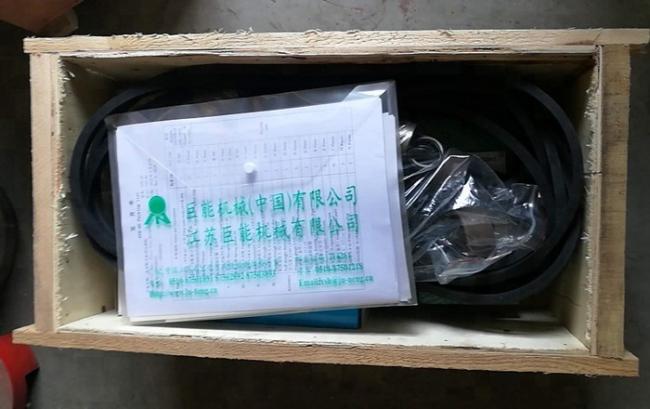

Packaging & Delivery
| Size | 123 (L) * 456 (W) * 789 (D) |
|---|---|
| Weight | 1.2 T |
| Packaging Details | The normal package is wooden box. For European exports, wooden boxes are fumigated. Alternative packaging available for tight containers or special customer requests. |
| Delivery | By sea or train after 100% payment |
Industry Exhibitions
We regularly participate in major industry exhibitions including Canton Fair and other international trade shows.
Company Profile - Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer of filters, separators, decanter centrifuges and pumps. With four factories located in Nanjing and Yixing City, we maintain strict quality control and comprehensive customer service.
We hold CE certificates, ASME U certificate and ISO 9001 certification. Our products sell throughout China and export to USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and other countries. We welcome OEM and ODM orders.
Jiangsu Juneng Machinery North Branch
Located in Zhoutie Town, Yixing City, our north branch specializes in various filters including vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters.
Quality Assurance
- Factory visit/audit required prior to purchase
- Material inspection during manufacturing and prior to shipment
- Compliance to technical requirements
Development Philosophy
- Continuous innovation and self-strengthening
- 5% of sales revenue allocated to intensive research
- 8% of workforce dedicated to development activities
- Multiple patents and high-quality new products
