GMC6025 Gantry Type Machining Center Fresadora CNC 5 Metros Square Ram 460x460mm

Name: GMC6025 Gantry Type Machining Center Fresadora CNC 5 Metros Square Ram 460x460mm
Brand: Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.

Price Negotiable

Price: 185000USD

MOQ: 1 set

Delivery Time: 45 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

GMC6025 Fresadora Cnc 5 Metros Square Ram 460x460mm Gantry Type Machining Center Price

Product Description:

The machine tool has a wide processing range, strong adaptability and good flexibility. It is widely used in the rough and fine processing of various plates, boxes, racks and other complex parts in the machinery manufacturing industry. It can perform milling, boring, drilling, rigid tapping, reaming, countersinking and other multi-process processing.

Standard Configuration:

syntec 22ma control  system
Bt50 Taiwan 4000 RPM spindle
Taiwan  hiwin screw
Taiwan hiwin 3 axis roller linear rails
Taiwan OKADA 24 -Disc- atc
Electrical cabinet cold  air exchanger

Product Specification:


			Main Technical Parameters

			GMC4025

			GMC5025

			GMC6025

			Work table size (width × length) (mm)

			2300×4000

			2300×5000

			2300×6000

			Stroke in the moving direction of the table (X-axis mm)

			4000

			5000

			6000

			Stroke in the moving direction of the spindle carriage (Y-axis mm)

			2700(side stroke 3050)

			2700(side stroke 3050)

			2700(side stroke 3050)

			Stroke in the up and down movement direction of the spindle (Z axis mm)

			1000

			1000

			1000

			Gantry width (mm)

			2700

			2700

			2700

			Gantry is too high (mm)

			1400

			1400

			1400

			Distance from spindle end face to work table (mm)

			340-1340

			340-1340

			330-1330

			Table T-slot (number - size x spacing)

			11-28×200

			11-28×200

			11-28×200

			Spindle Specifications (Model/Installation Diameter)

			BT50/Φ210

			BT50/Φ210

			BT50/Φ210

			Spindle transmission mode

			belt

			Speed 6000r/min

			Speed 6000r/min

			Speed 6000r/min

			the transmission ratio is 1.5:1;(optional 1.5:1)

			the transmission ratio is 1.5:1;(optional 1.5:1)

			the transmission ratio is 1.5:1;(optional 1.5:1)

			ZF deceleration + belt (optional)

			The speed is 6000r/min and the transmission ratio is 4:1;

			The speed is 6000r/min and the transmission ratio is 4:1;

			The speed is 6000r/min and the transmission ratio is 4:1;

			Gear Head (Weimars)

			speed 6000r/min, Transmission ratio 4.4:1

			speed 6000r/min, Transmission ratio 4.4:1

			speed 6000r/min, Transmission ratio 4.4:1

			Rapid traverse feed rate (m/min)

			10

			10

			10

			Cutting feed rate (m/min)

			6

			6

			6

			X, Y, Z axis ball screw specifications/pitch

			X:8020, Y:6316, Z:5010

			X:8020, Y:6316, Z:5010

			X:8020, Y:6316, Z:5010

			X, Y, Z axis guide rail specifications / number of sliders

			X axis: roller guide 55/14;

			X axis: roller guide 55/14;

			X axis: roller guide 55/14;

			Y axis: roller guide 55/4;

			Y axis: roller guide 55/4;

			Y axis: roller guide 55/4;

			Z axis: rectangular slide

			Z axis: rectangular slide

			Z axis: rectangular slide

			X, Y, Z axis servo motor transmission mode and transmission ratio

			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive

			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive

			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

			X-axis planetary gear transmission 4:1 X-axis planetary gear transmission 3:1 Z-axis direct drive 1:1 (Optional X-axis belt drive

			2.5:1; Y-axis direct drive 1:1; X-axis direct drive 1:1)

			Spindle motor selection recommendation

			22kW wide area motor

			22kW wide area motor

			22kW wide area motor

			X, Y, Z three-phase servo motor recommendation

			≥ X:50N m; Y:40N m; Z:30N m (brake)

			≥ X:50N m; Y:40N m; Z:30N m (brake)

			≥ X:50N m; Y:40N m; Z:30N m (brake)

			Optical machine dimensions

			8535x5130x4300

			10555x5130x4300

			12420x5130x4300

			(length × width × height) (mm)

			Workbench load (t)

			12

			15

			18

			Light machine weight about (t)

			39

			44

			51

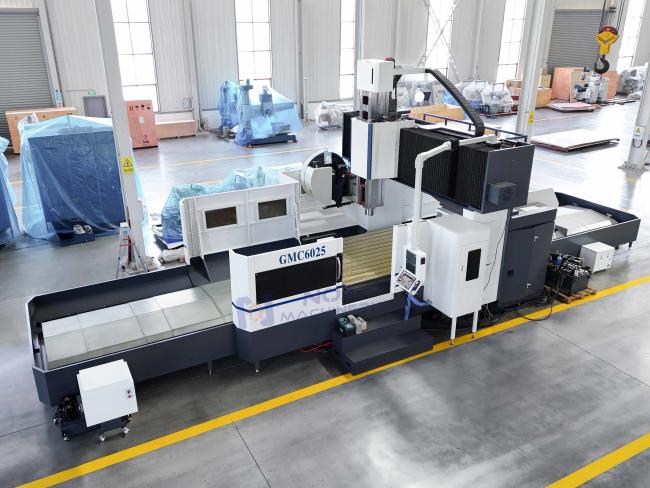

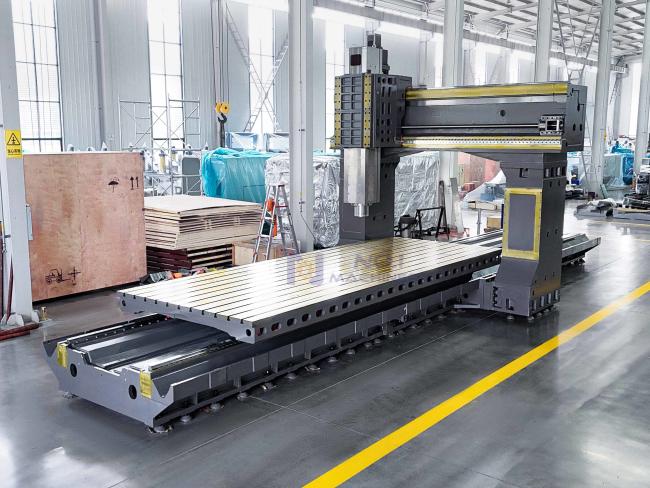

Details Display:
