High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

Price Negotiable

Price: 17000USD

MOQ: 1 set

Delivery Time: 15 days after getting the deposit.

Brand: Zaozhuang NO.1

Product Description

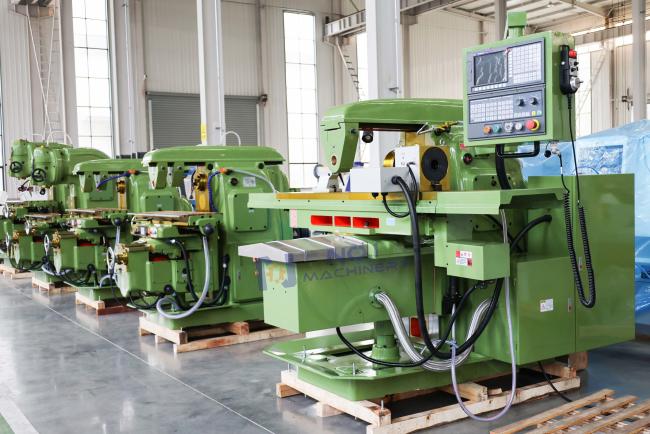

High-performance CNC Milling Machine XK6132 Heavy Duty Knee Type Metal Milling Machine

Product Description:

The XK6132 is a high-performance horizontal CNC milling machine featuring a sturdy bed structure, ensuring stable machining. Equipped with a CNC system and supporting three-axis linkage, it is suitable for milling, boring, and drilling complex housings, gears, and other large parts.

Standard Configuration:

1. Guangtai 130 system

2.Three axis CNC

3.Manual transmission of spindle

4.Electronicoil pump

5.Three-axis hard rail

Optional Configuration:

1. System :GSK,KND

2.Pneumatic broach

3.CNC dividing head

4.Top Tailstock

5.Fully protected sheet metal

6.The table rotates

Product Specification:


			PARAMETER ITEM

			UNIT

			XK6132

			XK6140

			Size of worktable

			mm

			1500x320

			1700x400

			Table travel

			mm

			900x310x410

			1000x330x400

			T-groove

			mm

			3-14-70

			3-18-90

			Spindle Taper

			-

			ISO:50/7:24

			ISO:50/7:24

			Table rotation angle (optional)

			.

			±45°

			±45°

			Distance between spindle end face and table top

			mm

			20-370

			30-410

			Bed Vertical Guide to the spindle center line distance

			mm

			225-505

			275-625

			Spindle speed range(series)

			rpm

			30-1500/18

			30-1500/18

			Fast moving speed(x/y/z)

			mm/min

			6000/6000/3000

			6000/3000/6000

			Positioning accuracy

			mm

			0.020/300

			0.05/300

			Repeat positioning accuracy

			mm

			0.010/300

			0.025/300

			Main Drive motor power

			kw

			7.5

			11

			Coolingpump motor power

			kw

			0.125

			0.125

			Extemnal dimensions

			mm

			2272x1825x2094

			3310x2200x2394

			Weight of machine tool

			kg

			2850

			4250

Details Display:

TCK50 Small CNC Lathe Machine Light Duty Slant Bed Turning And Milling Center For Metal

High Performance CNC Milling Machine XK6132 Heavy Duty Metal Knee Type Milling Machine

Metal Manual Lathe Machine CA6250 Horizontal Conventional Lathe Machine

GMC1614 Gantry Type CNC Milling Machine 3 Axis CNC Gantry Milling Machining Center

CNC Horizontal Machining Center HMC1814 Horizontal CNC Milling Machine For Metal

VMC1370 Large Vertical Machining Centers 3 Axis With Fanuc Control System

CA6140 Traditional Horizontal Metal Lathe Machine 1000mm 1500mm New Torno

GMC5025 Square Ram Gantry Machining Center Heavy Duty 3 Axis CNC Milling Machine

HMC1290 CNC Horizontal Milling Machine Table Size 1360 X 700 CNC Machining Center

800kg VMC1050 VMC Milling Machine High Load Bearing High Speed CNC Milling Machine

Metal Horizontal Flat Bed CNC Machine Lathe With CE Certification CK6150

XK6240 CNC Milling Machine Universal Swivel Head Milling Machine For Metal

Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company Zaozhuang No. 1 Cnc Machine Tool Co., Ltd.

Location No. 789, Tengyang Road, Tengzhou City, Zaozhuang City, Shandong Province, China

Contact Person Levin Jiang

Request A Quote

Email Address *

Please check your email address.

Phone / WhatsApp

Your Message *

Your message must be at least 20 characters.

PARAMETER ITEM	UNIT	XK6132	XK6140
Size of worktable	mm	1500x320	1700x400
Table travel	mm	900x310x410	1000x330x400
T-groove	mm	3-14-70	3-18-90
Spindle Taper	-	ISO:50/7:24	ISO:50/7:24
Table rotation angle (optional)	.	±45°	±45°
Distance between spindle end face and table top	mm	20-370	30-410
Bed Vertical Guide to the spindle center line distance	mm	225-505	275-625
Spindle speed range(series)	rpm	30-1500/18	30-1500/18
Fast moving speed(x/y/z)	mm/min	6000/6000/3000	6000/3000/6000
Positioning accuracy	mm	0.020/300	0.05/300
Repeat positioning accuracy	mm	0.010/300	0.025/300
Main Drive motor power	kw	7.5	11
Coolingpump motor power	kw	0.125	0.125
Extemnal dimensions	mm	2272x1825x2094	3310x2200x2394
Weight of machine tool	kg	2850	4250
