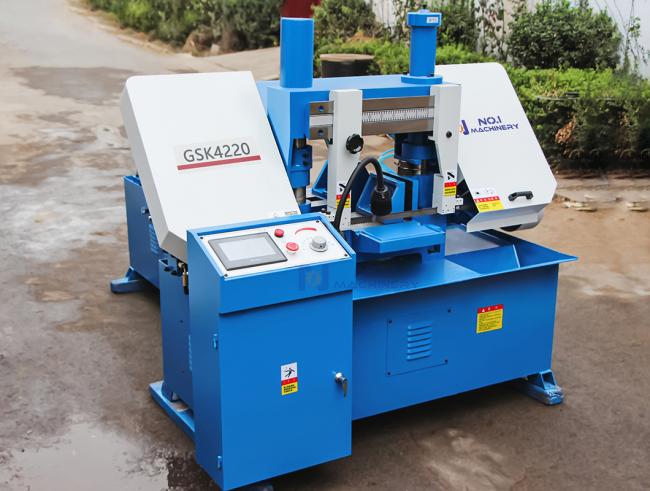

GSK4220 Horizontal Metal Band Saw Automatic Feed Double Column Metal Saw Cutting Machine

Price Negotiable
Price: 3000USD
MOQ: 1 set
Delivery Time: 15 days after getting the deposit.
Brand: Zaozhuang NO.1
Product Description

GSK4220 Horizontal Metal Band Saw Automatic Feed Double Column Metal Saw Cutting Machine



The automatic band saw stand out for their exceptional precision and efficient production. Requiring virtually no human intervention, these machines rely on advanced sensors and control systems to automatically adjust the feed rate and saw blade speed, ensuring consistent cut quality—especially critical in large-scale production. The band saw's automated system significantly reduces the need for operator monitoring, enabling multitasking and improving overall efficiency.



optional configuration:

1. saw blade cover protection

2. protective cover power failure protection

3.electric feedrack

4.fast down protection

5.protective cover power failure protection

6.saw blade hydraulic clamping

6.saw blade variable speed

7.hydraulic chip conveyor



Product specification:

Name
GSK4220
Cutting range(mm)
Φ200-200×200
Saw Band Specifications (mm)
2760-27-0.9
Saw belt line speed (m/min)
27,45,69
Working clamping method
hydraulic clamping
Hydraulic motor(kw)
0.22
Pump motor (kw)
0.04
Main motor power (kw)
1.5
Dimensions (mm)
2000×1000×1300
Net weight kg (Kg)
750



Details Display:
