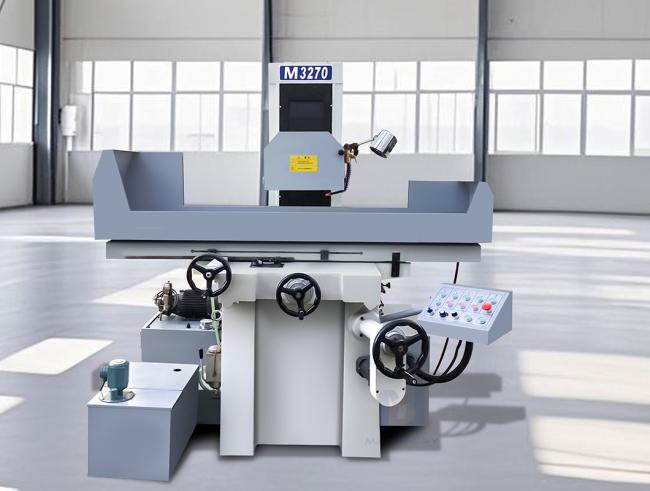

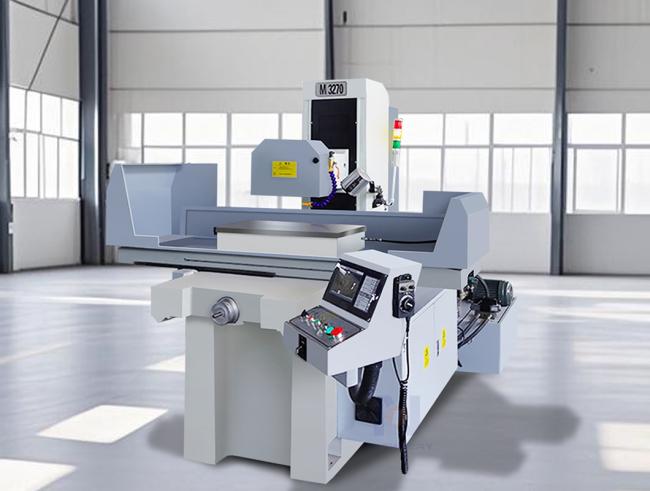

Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
Price:
4000USD
MOQ:
1
Delivery Time:
20 days after getting the deposit.
Brand:
Zaozhuang NO.1
Product Description
Chinese factory M3270 MY3270 Flat Surface Grinding Machine High Preformane Grinding Machine
The series of machine tools are designed for peripheral grinding using the grinding wheel. They are widely employed in the machinery manufacturing industry to process components, cast iron, non-ferrous metals, and other metal parts. With smooth operation, reliable performance, low noise, and user-friendly controls, these machines are highly favored by users.
Product specification:
|
Working table size(LxW)
|
mm
|
680*300
|
|
Maximum grinding area of worktable(LxW)
|
mm
|
700*320
|
|
T-slots on worktable (number of slots * slot width)
|
mm
|
1*14
|
|
Distance from grinding wheel spindle centerline to work surface
|
mm
|
1440
|
|
Grinding wheel speed (50 Hz)
|
R/min
|
3-20 |
|
Worktable horizontal handwheel feed/per turn
|
mm
|
5
|
| Feed on vertical feed handwheel(Per rev.) |
mm
|
0.01 |
| Electronic handwheel for grinding head infeed(Per grad) |
mm
|
2 |
| Electronic handwheel for grinding head infeed(Per rev.) |
mm
|
0.01 |
| Grinding wheel size |
mm
|
350*127*32 |
| Spindle motor |
kw
|
3 |
| Cooling motor |
w
|
40 |
| Parallelism of the machined surface to the base surface |
mm
|
300:0.010 |
| surface roughness |
um
|
Ra0.32 |
| Machine weight |
kg
|
1800
|
| Overall dimensions (L*W*H) |
mm
|
1840*1480*2050
|
Details Display:
