Horizontal Band Saw GZ4265 Metal Band Saw Machine for Efficient Metal Cutting
Horizontal Band Saw GZ4265 Metal Band Saw Machine for Efficient Metal Cutting

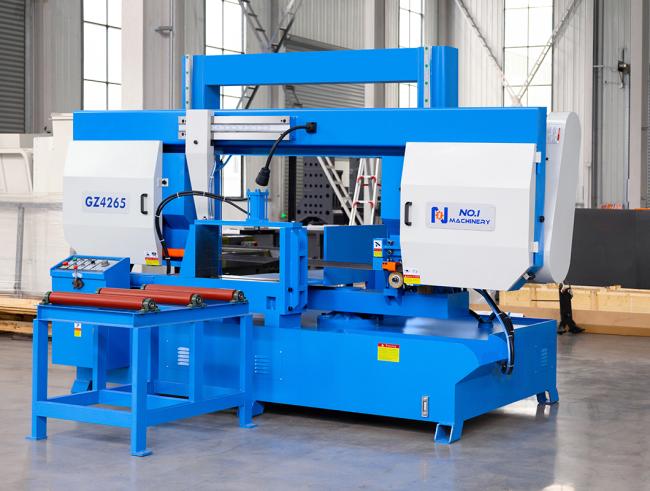

The GZ4265 Angle Band Saw is a high-efficiency, heavy-duty machine engineered for the angular sawing of large-section metal materials. Renowned for its exceptional cutting precision and operational efficiency, this model features a robust construction to perform accurate cuts from 45° to 90°. It ensures stable operation and a high degree of automation, making it perfectly suited for high-volume blanking and productive manufacturing demands.
optional configuration:
1.Electric feedrack
2.Fast down protection
3.Saw blade cover protection
4.Saw blade broken protection
5.Saw blade variable speed
6.Saw blade hydraulic clamping
7.Protective cover power failure protection
Product specification:
| ITEM | UNIT | GZ4265 |
| 45° sawing range | mm | 650x520 |
| 90° sawing range | mm | 650x650 |
| Specification for band saw blades | -- | 7200x54x1.6 |
| Feed rate | m/min | Stepless speed regulation |
| Sawing Speed | m/min | 27,45,69／(Frequency conversion 20-80) |
| Main motor power | kw | 7.5 |
| Oil Pump Power | kw | 1.5 |
| Water Pump Power | w | 90 |
| Clamping mode | -- | Hydraulics |
| External dimensions | mm | 3600x1750x2200 |
| Weight | kg | 4000 |
Details Display:
