VMC1160 CE Certified Vertical Cnc Machining Center Rigid Structure CNC Milling Machine
Price:
18000USD
MOQ:
1 set
Delivery Time:
20 days after getting the deposit.
Brand:
Zaozhuang NO.1
Product Description
VMC1160 CE Certified Vertical Cnc Machining Center Rigid Structure CNC Milling Machine
Machine Tool Features:
This machine tool inherits the advantages of traditional vertical CNC milling machines, such as strong frame rigidity, symmetrical structure, and high stability. It incorporates internationally advanced dynamic rigidity design concepts and optimizes the design of moving parts. This gives the machine tool high rigidity, large torque, and rapid response characteristics, making it suitable for various machining needs in the automotive, aerospace and hardware industries.
1. The spindle uses a Taiwanese brand.
2. The three-axis movement uses linear guideways, ensuring precise positioning through rapid three-axis movement.
3. The machine tool base, worktable, column, crossbeam, slide saddle, and spindle box are made using resin sand molding.
4. High-strength cast iron, treated with double annealing, completely eliminates casting stress and internal stress generated during rough machining, ensuring high structural rigidity, high stability, and permanently guaranteed quality.
Product Features:
1 High-precision castings, quenched to eliminate internal stress and ensure accuracy
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
2 CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3 The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5 High-precision Taiwan spindle, good stability and long life
6 Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid
displacement and obtain the best cycle accuracy.
7 Fully automatic electronic lubrication system for uniform oil supply and good stability.
Standard configuration:
1. syntec 22ma control system

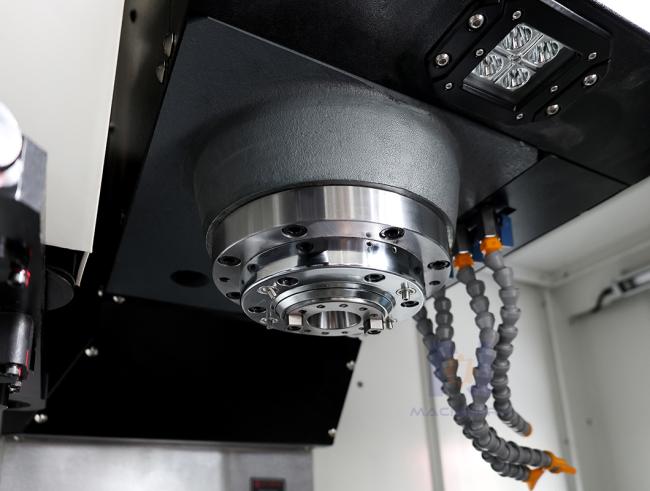

2. bt40 Taiwan 8000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails

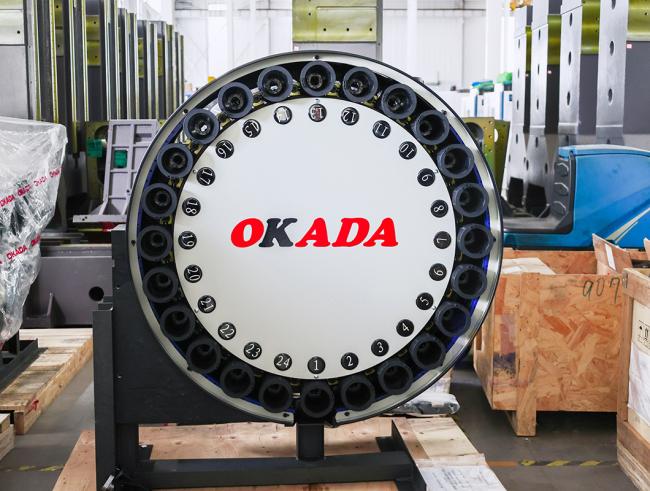

5.Taiwan OKADA 24 -disc-atc
6.Electrical cabinet cold air exchanger
Product Specification:
Product Display:
