Z3063 Radial Drilling Machine Hydraulic Speed Change Radial Drill With Low Price

Price Negotiable
Price: 7000USD
MOQ: 1 set
Delivery Time: 10 days after getting the deposit.
Brand: Zaozhuang NO.1
Product Description

Z3063 Radial Drilling Machine Hydraulic Speed Change Radial Drill With Low Price


The Z3063 Radial Drilling Machine is an ultra-versatile hole-making machine tool. Its arm swivels around the column and the spindle head moves along the arm, allowing easy and efficient multi-hole machining of large workpieces. With flexible operation, powerful performance and reliable stability, it is ideal for drilling, reaming, boring and counterboring operations.


 Standard configuration:

1.Hydraulic transmission

2.Hydraulic change speed

3.hydraulic  clamping

4.Mechanical and electrical double insurance

5.Hydraulic pre - selectionMechanical and electrical double insurance


Product specification:

PARAMETER ITEM
Unit
Z3063x20
Maximum bore diameter
mm
63
Distance from spindle face to base face
mm
450-2000
Distance from spindle center line to column busbar
mm
400-1600
Column diameter
mm
400
Spindle stroke
mm
400
Spindle taper hole (Morse)
-
MT5
Spindle speed range
rpm
25-1600
Spindle speed series
step
16
Spindle feed range
mm/r
0.04-3.20
Spindle feed series
step
16
Size of worktable
mm
800x630x500
Spindle box horizontal movement distance
mm
1550
Spindle motor power
kw
5.5
Weight of the whole machine
kg
7000
External dimensions
mm
3080x1250x3205

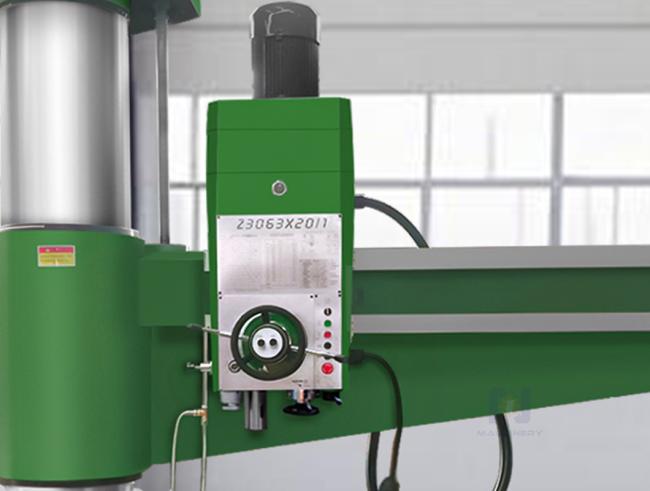

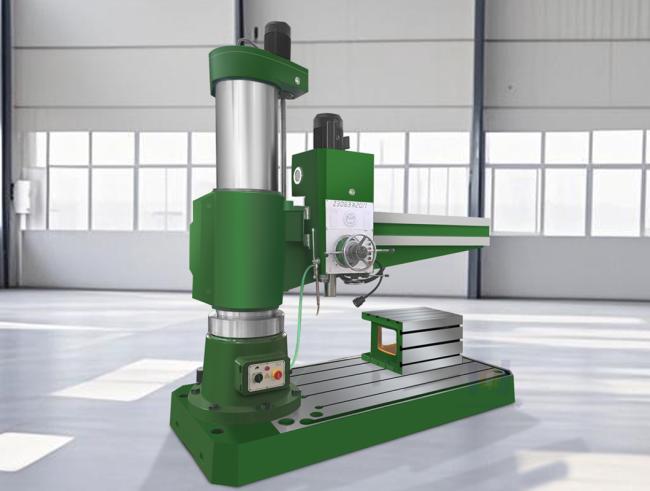

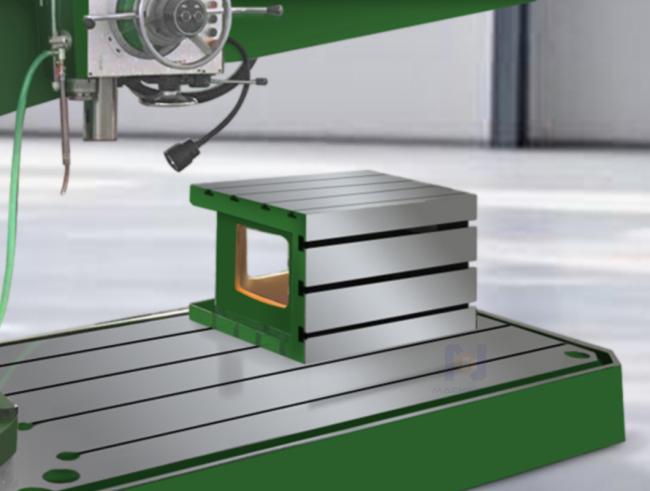

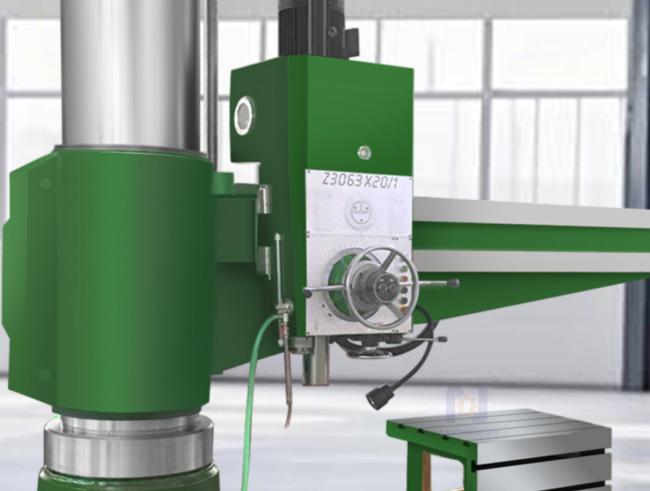

Details Display:
