China Hot Sale C6140 Horizontal Manual Lathe Machine with Medium Duty Machining Capacity for sale

Hot Sale C6140 Horizontal Manual Lathe Machine with Medium Duty Machining Capacity

Price Negotiable
Price: 4900USD
MOQ: 1 set
Delivery Time: 15 days after getting the deposit.
Brand: Zaozhuang NO.1
Product Description

Hot Sale C6140 Horizontal Manual Lathe Machine with Medium Duty Machining Capacity


The C6140 is a versatile manual metal lathe, equipped with a high-strength cast iron bed and a precision gear drive system for ultra-stable operation. Boasting a 52mm spindle bore and a maximum swing diameter of 400mm, it is capable of turning, drilling and threading operations on a wide range of metal materials, making it an ideal piece of equipment for machining workshops and technical training institutions alike.


Standard Configuration:


1.socket wrench

2.3-jaw chuck

3.Top tailstock

4.adjustment pad iron

5.foundation bolts


Optional Configuration:

1.foot brake

2.4 jaw chuck

3.quick change tool post

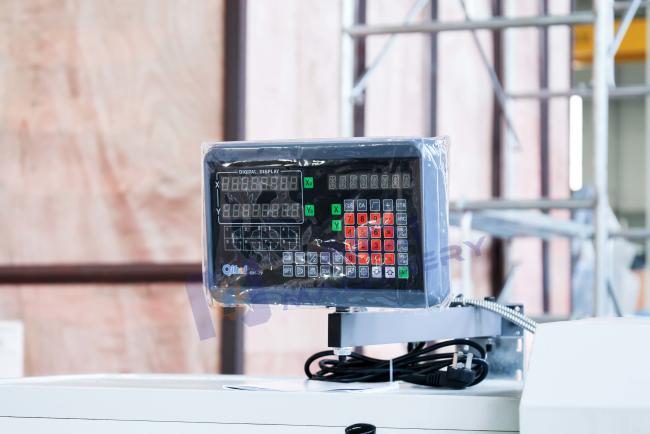

4.DRO

5.fast moving

6.drill chuck and holder

7.tapeir turning atachment

8.chuck,toolpost,lead screw cover

9.live center

10.face plate

Specification:

PARAMETER ITEM
UNIT
C6(1/2)36
C6(1/2)40
C6(1/2)50
Maximum turning diameter of bed
mm
360
400
500
Maximum turning diameter on the tool post
mm
190
330
330
Maximum turning diameter at the saddle
mm
540
560
660
Center distance
mm
750/1000
750/1000
1500
Bed width
mm
360
Spindle hole

Φ52/80
Spindle end size

C6
Spindle taper hole

MT6
Spindle speed range (number of stages)
rpm
40-1400(9steps)special order1600
Metric Thread Range (number)
mm
0.25-14 (19kinds)

Inch thread range (number of types)
inch
2-40
Modulus thread range (number of species)
m
0.5-3.5(11kinds)
Horizontal skateboard stroke
mm
180 222
Śmall tool holder stroke
mm
95
Turning tool holder section size
m ㎡
20x203
Tailstock sleeve taper

MT4
Tailstock sleeve diameter
mm
65
Tailstock sleeve stroke
mm
140
Main motor
kw
3 4
750
mm
2220x1150x1590
1000
mm
2470x1150x1590
1500
mm
2970x1150x1590
750
kg
1350/2000
1400/2050
5000/2150
1000
kg
1450/2100
1500/2150
1600/2250
1500
kg
1600/2250
1650/2300
1750/2400

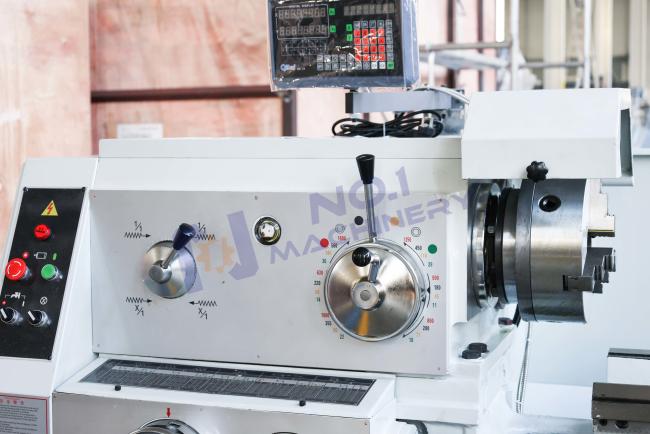

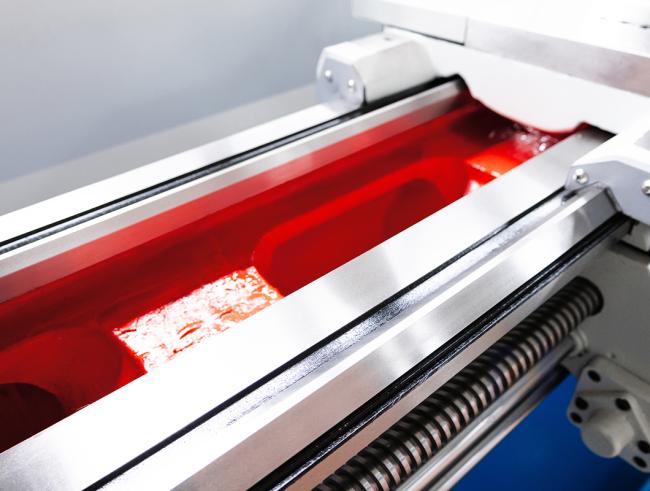

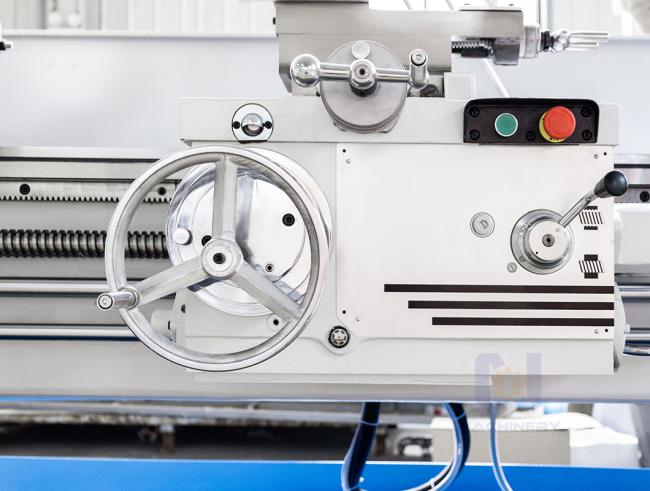

Details Display:
